SKU: BSS1-16N-SET
Size: 1″ Body, 1″ NPT Thread, Poppet Valve
Features:
- Body Material: 316 or 304 Stainless Steel
- Spring Material: 304 Stainless Steel
- Locking Ball Material: 316 or 304 Stainless Steel
- 316 Stainless Steel Body is highly resistant to corrosion
- Self Sealing Poppet Valve Seals Excellent Under High and Low Pressures
- Interchangeable with all ISO 7241 B series couplings
- Max Pressure: 3,675 PSI
- Nominal Flow Rate: 50 GPM
- Max Flow Rate: 68 GPM
- Seal Type: Viton FKM
- Temperature Range: -15°F to +400°F

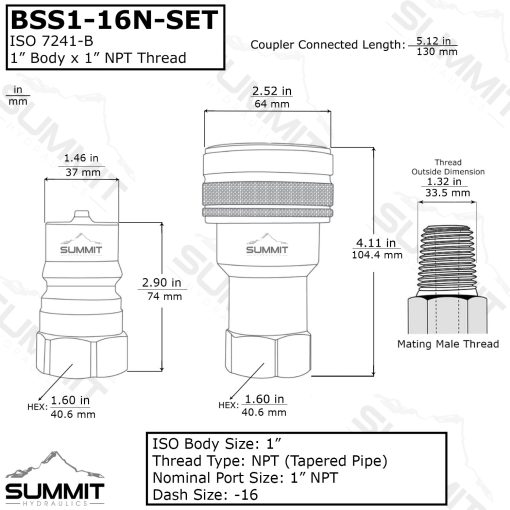

- Female Face Diameter 2.52” (64mm)
- Female Length: 4.11” (104.4mm)
- Hex: 1.60” (40.6mm)
- Male Face Diameter 1.46” (65mm)
- Male Length: 2.90” (105m)
Applications:
- Ideal for harsh environments such as offshore oil and gas markets
- Water Applications
- Chemical Applications
- Food Grade
- Hydraulic
316 Variant Interchangeable with:
| Manufacturer | Male | Female |
| SUMMIT | BSS1M-16N | BSS1F-16N |
| Parker 60 Series | SSH8-63Y | SSH8-62Y |
| Safeway SS10 Series | SS101-8 | SS105-8 |
| Faster HNV Stainless Steel | HNV 1 NPT M 2V | HNV 1 NPT F 2V |
| Snap-Tite 72 Series | SS72N16-16F | SS72C16-16F |
| Stucchi IRBX Series | M IRBX100 NPT 804601111 |
F IRBX100 NPT 804601110 |
| Dixon H-Series | H8F8-SS | 8HF8-SS |
| Eaton HK Series | LL8KP36 | LL8HP36 |
| DNP HNV Series | HNV-SS316-16-16-N-NPT | HNV-SS316-16-16-C-NPT |

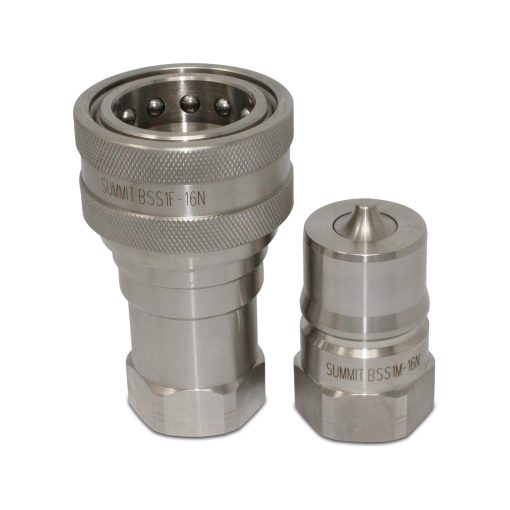

What’s Included:
- Female Coupler
- Male Coupler
| Weight | 3 lbs |
|---|---|
| Dimensions | 5 × 4 × 4 in |
| Style | ISO 7241-B |
| Body Size | 1" |
| Thread Type | |
| Thread Size | 1" |
| Body Material | Stainless Steel |
| Locking Type | Sleeve |
| Stainless Steel Type | 316, 304 |
