SKU: BB12-08N-SET
Size: 1/2″ Body, 1/2″ NPT Thread, Poppet Valve

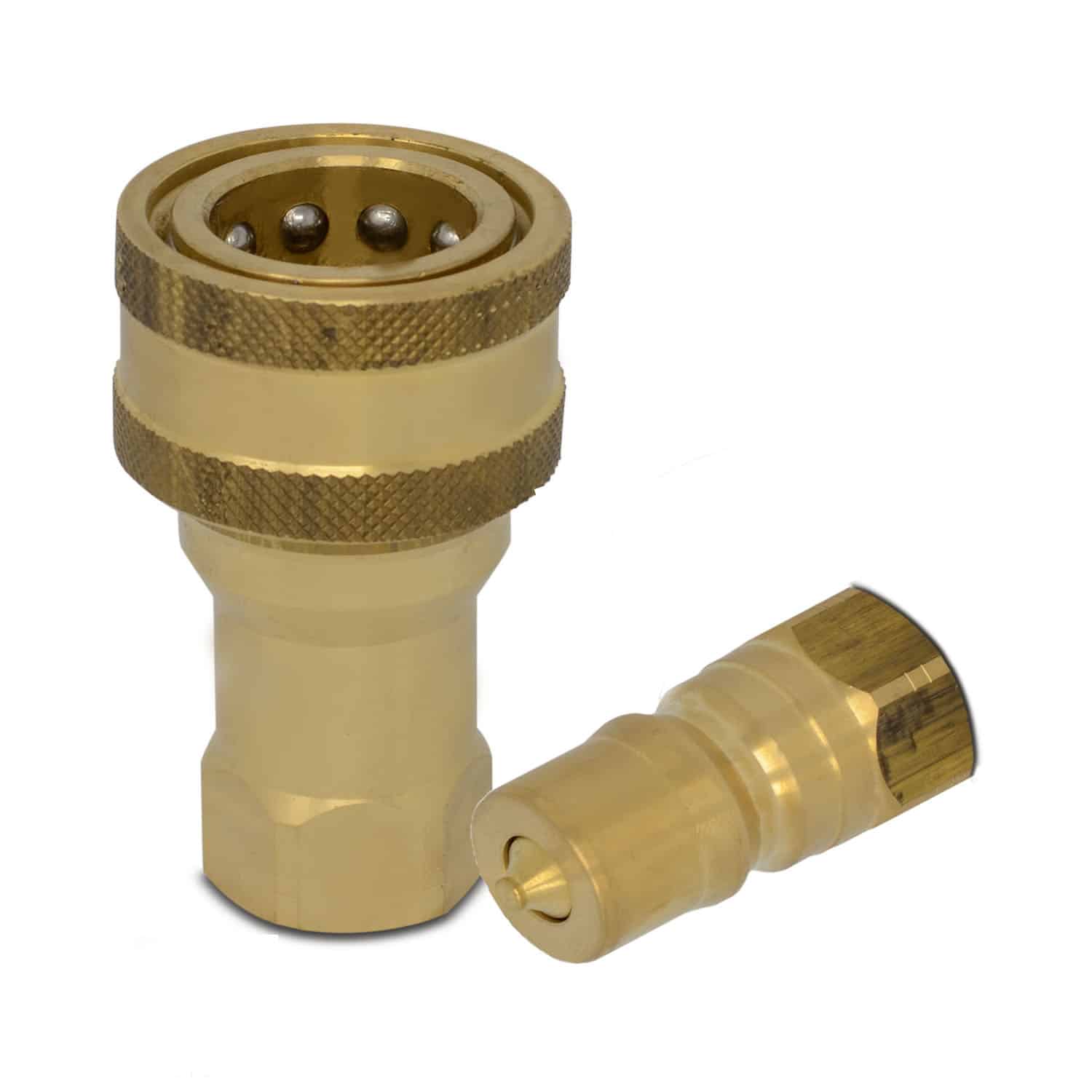

This 1/2″ coupler set consists of a male and female quick coupler.
Features:
- Body Material: Brass material for corrosion resistance
- Spring Material: 304 Stainless Steel
- Locking Ball Material: 316 Stainless Steel
- Self Sealing Poppet Valve Seals Excellent Under High and Low Pressures
- Interchangeable with all ISO 7241 B series couplings
- 2,600 PSI Rating
- Nominal Flow Rate: 12 GPM
- Max Flow Rate: 23.78 GPM
- Seal Type: Viton FKM
- Temperature Range: -15°F to +400°F

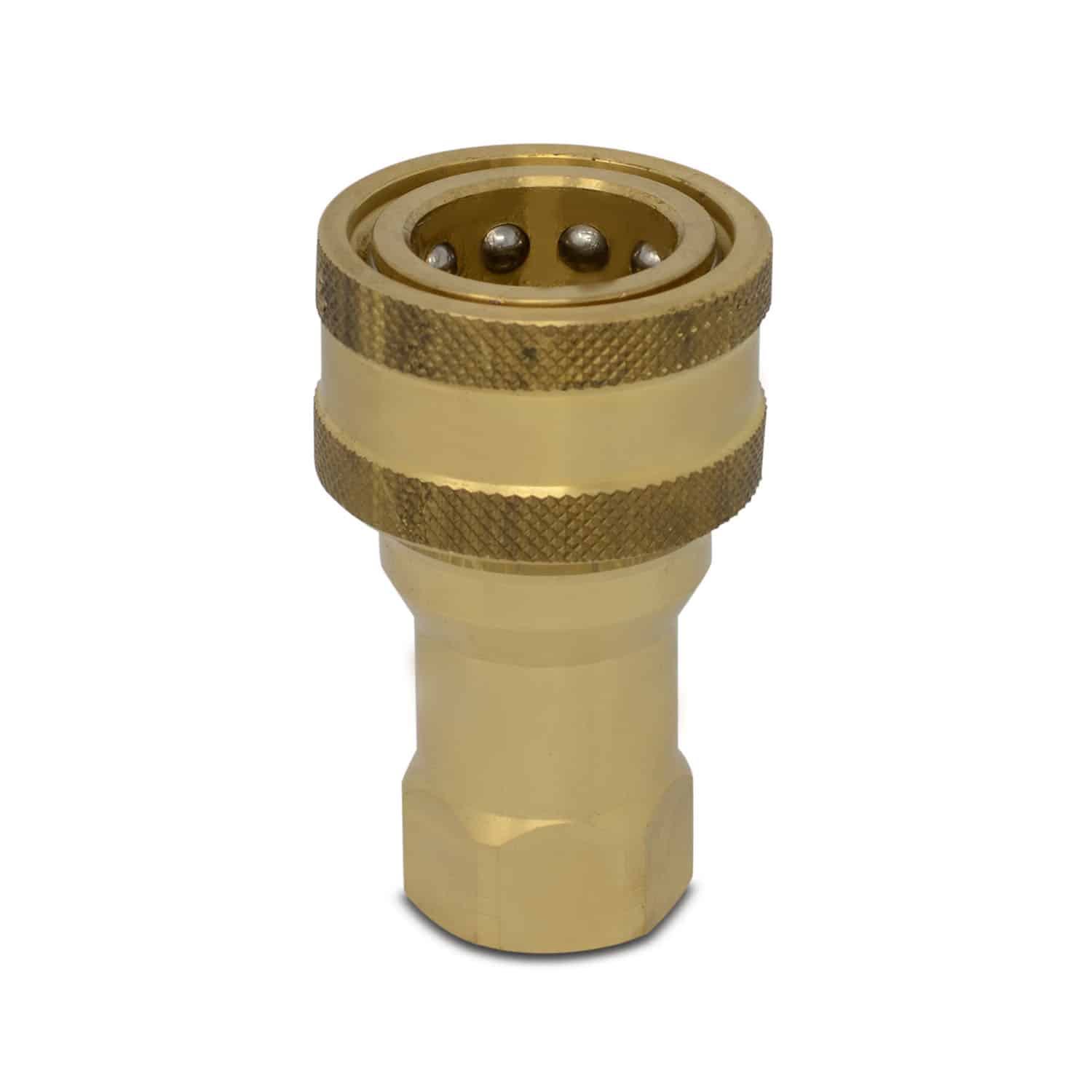

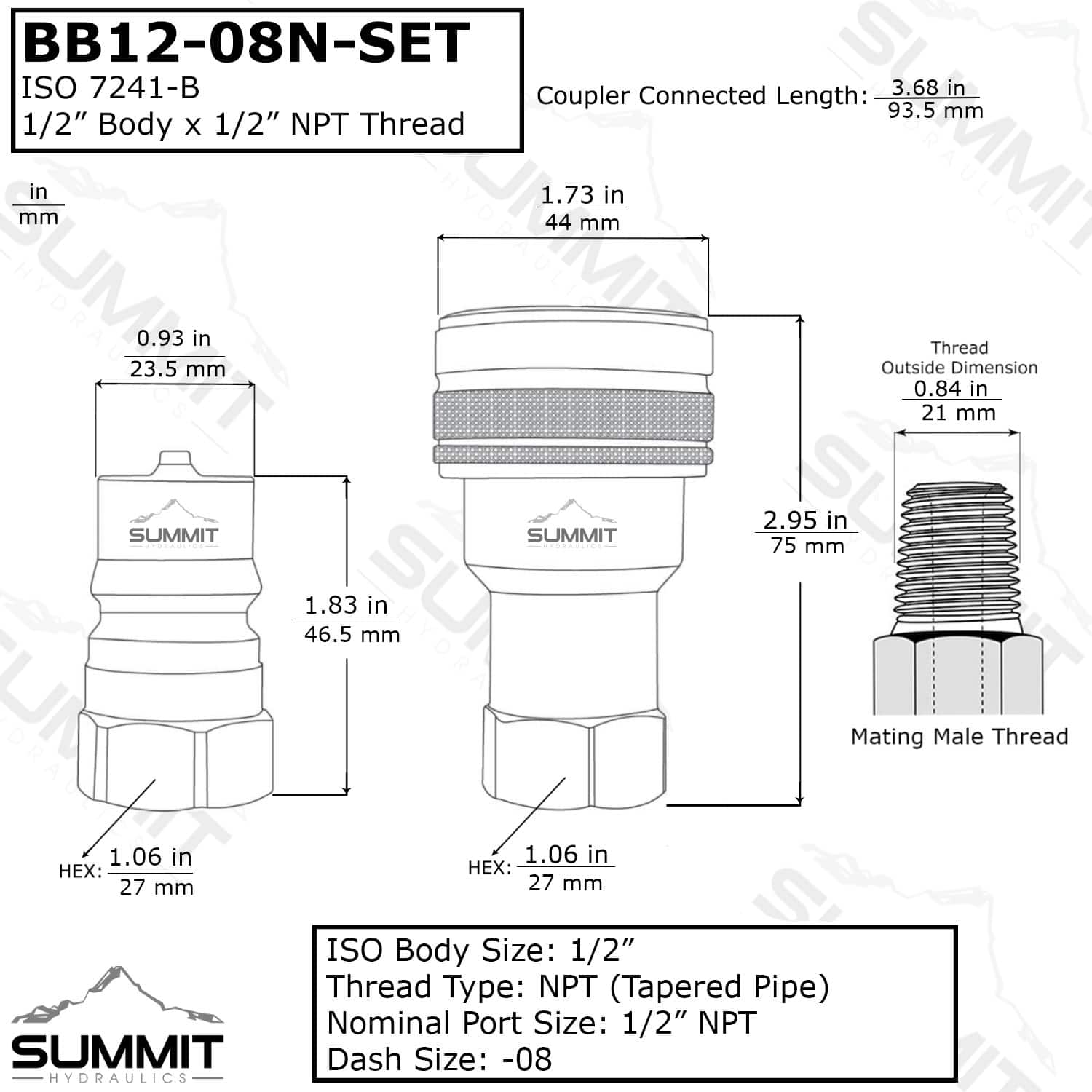

- Female Face Diameter 1.73” (44mm)
- Female Length: 2.95” (75mm)
- Hex: 1.06” (27mm)
- Male Face Diameter .93” (23.5mm)
- Male Length: 1.83” (46.5mm)
Applications:
- Hydraulic fluids
- Water
- Diesel / Petroleum
Interchangeable with:
| Manufacturer | Male | Female |
| SUMMIT | BB12M-08N | BB12F-08N |
| Parker 60 Series | BH4-61 | BH4-60 |
| Safeway BS10 Series | BS101-4 | BS105-4 |
| Faster HNV Brass | HNV 12 NPT M 5V | HNV 12 NPT F 5V |
| Snap-Tite 72 Series | B72N8-8F | B72C8-8F |
| Stucchi IRBO Series | M IRBO12 NPT 804501107 |
F IRBO12 NPT 804501106 |
| Dixon H-Series | H4F4-B | 4HF4-B |
| Eaton HK Series | B4KP26 | B4HP26 |
| DNP HNV Series | HNV-B-08-08-N-NPT | HNV-B-08-08-C-NPT |
What’s Included:
- Female Coupler
- Male Coupler
https://staging.summit-hydraulics.com/product/iso-7241-b-quick-couplers-dust-cap-set/
| Weight | 1 lbs |
|---|---|
| Dimensions | 5 × 5 × 4 in |
| Style | ISO 7241-B |
| Body Size | 1/2" |
| Thread Type | |
| Thread Size | 1/2" |
| Body Material | Brass |
| Locking Type | Sleeve |
