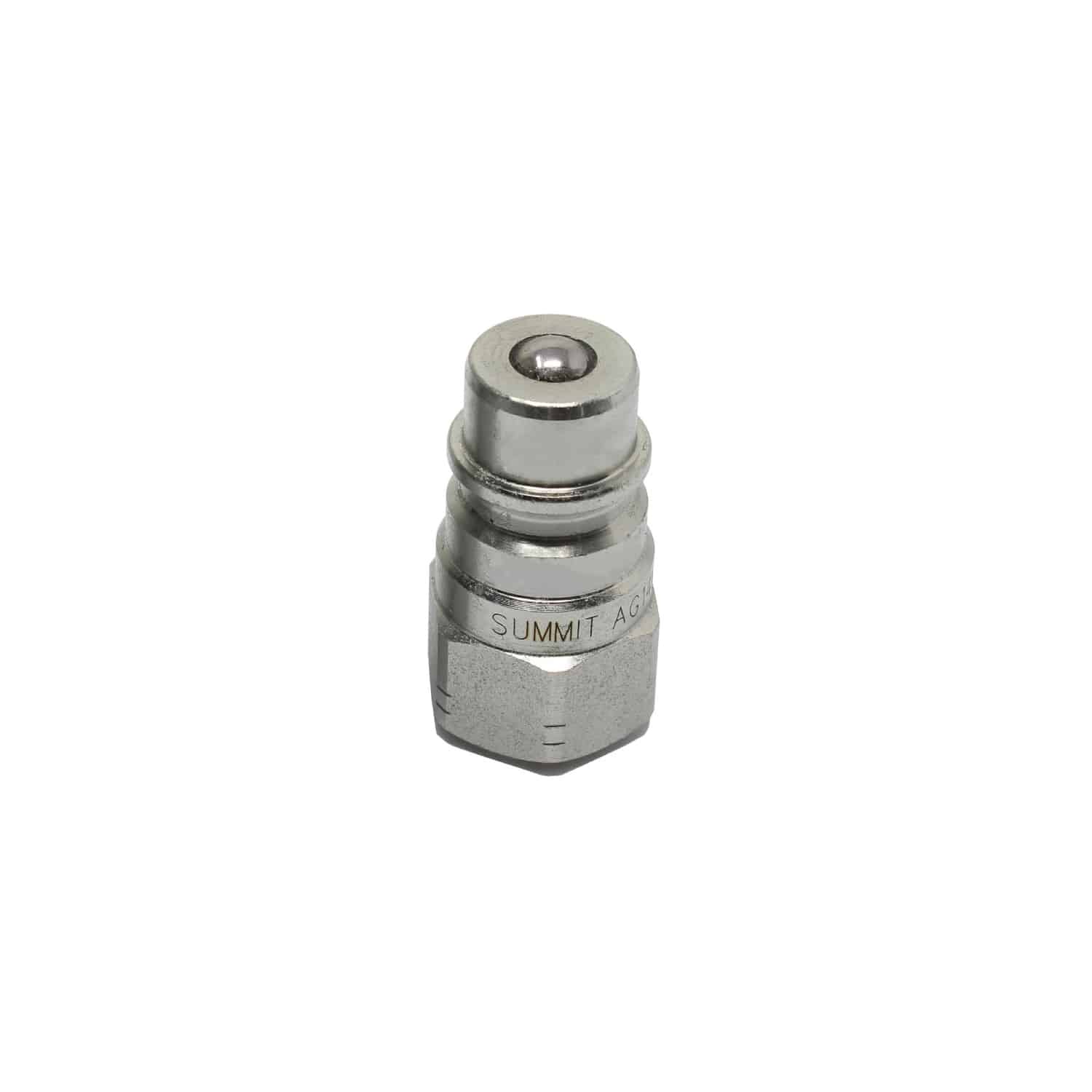

1/4″ Ag, Ball Style, Hydraulic Quick Connect Male Coupler, 1/4″ NPT Thread

1/4″ Body AG, Ball Style, Hydraulic Quick Connect Male Coupler, 1/4″ NPT Thread

SKU: AG14M-04N-B

This series of couplers are the most common quick connect couplers used in the agriculture, construction and logging industries.  They are interchangeable with all ISO 5675 series including ball seat valve, poppet seal, push-pull couplings.

ISO Body Size: 1/4”

Port Thread: 1/4” NPT

This 1/4″ ball style male coupler connects to its female equivalent. We also carry a complete set, including a single male and single female coupler.

We also carry 1/4″ poppet style couplers, which are compatible with the ball versions. We have male, female and a complete set available.

Features:

• 5100 PSI Rating
• 6.34 GPM Max Flow
• Hardened Steel Plugs
• Buna-N Seals with Teflon backup ring can operate up to 250° F
• Ball Valve
• Male Length: 1.380”
• Hex: 0.751”
