SKU: A14-04N-SET
The ISO 7241 A Series of quick disconnect couplers are used on a large spectrum of hydraulic applications with strenuous quality standards such as the aerospace, automotive, electronics industries. They are also recommended for general purpose, machine tools, mobile hydraulics, and other equipment applications. Our Series A couplers are interchangeable with all ISO 7241 A series couplings.
Size: 1/4″ Body, 1/4″ NPT Thread, Poppet Valve

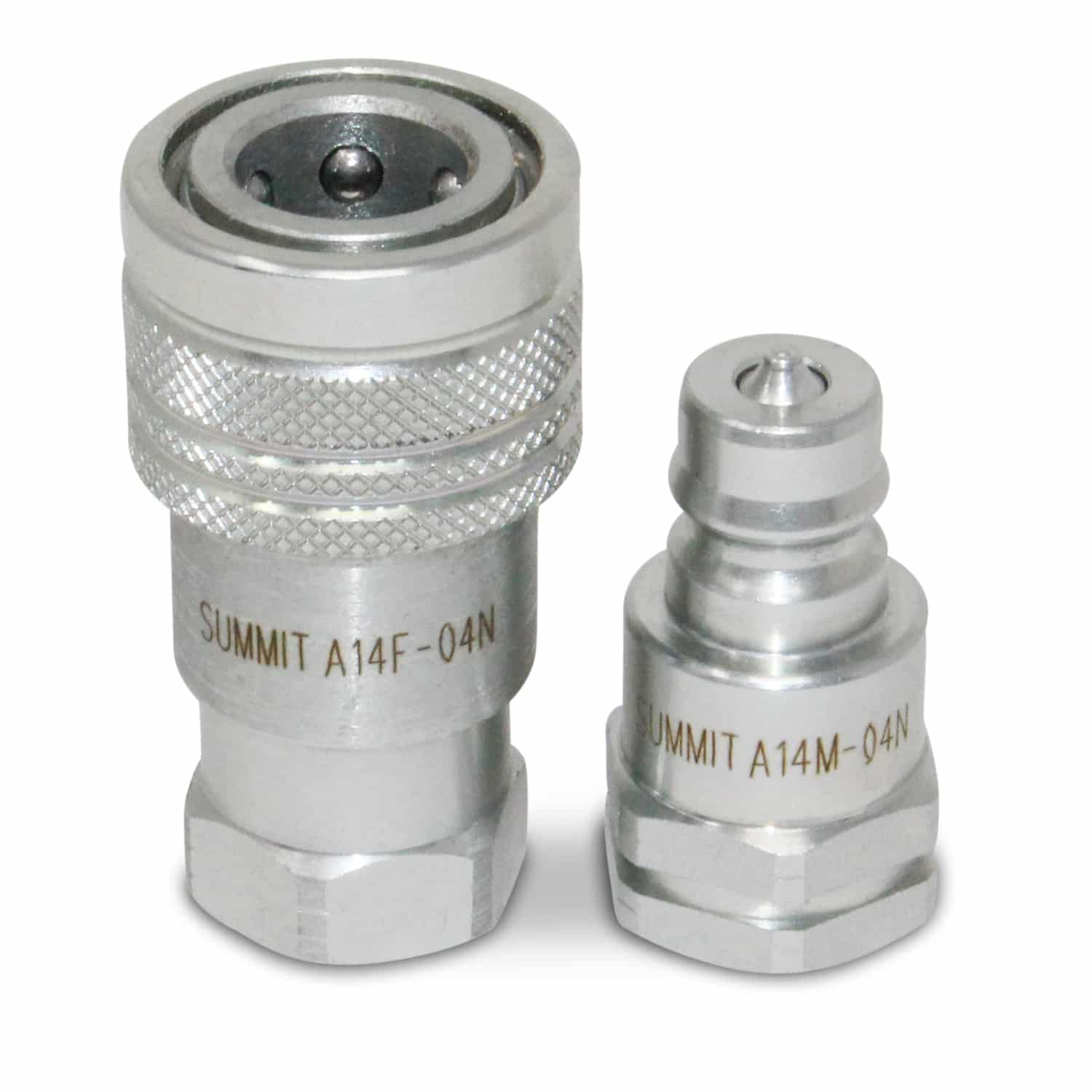

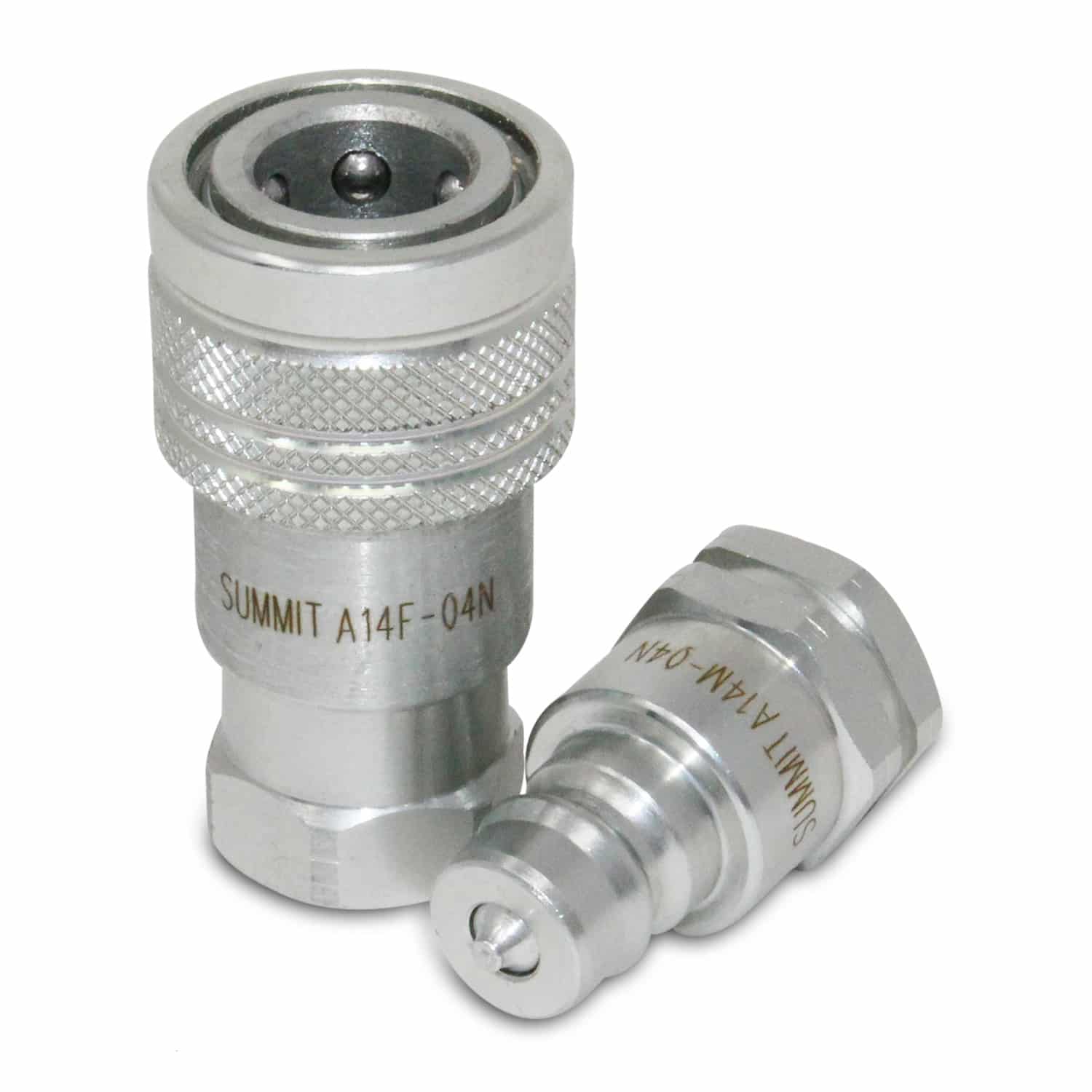

This 1/4″ poppet style coupler set consists of a male and female quick coupler.
Features:
- Hardened Steel Self Sealing Poppet Valve Seals Excellent Under High and Low Pressures
- Interchangeable with all ISO 7241 A series couplings
- 5,145 PSI Rating
- Nominal Flow Rate: 3.2 GPM
- Max Flow Rate: 6.34 GPM
- Seal Type: Nitrile Buna-N
Interchangeable with:
| Manufacturer | Male | Female |
| Parker 6600 Series | 1717465 | 1717100 |
| Faster | ANV 14 NT M | ANV 14 NT F |
| Tomco 5600 | PA5602-16 | CA5602-16 |
| Aeroquip 5600 | 5602-4-4s | 5601-4-4s |
| Dixon K | K2F2 | 2KF2 |
| Snaptite 61 | 61N4-4F | 61C4-4F |
| Stucchi BIR | F bir14 npt | M bir14 npt |
What’s Included:
- Female Coupler
- Male Coupler
| Weight | 1 lbs |
|---|---|
| Dimensions | 5 × 4 × 3 in |
| Style | ISO 7241-A |
| Body Size | 1/4" |
| Thread Type | |
| Thread Size | 1/4" |
| Body Material | Hardened Steel |
| Locking Type | Sleeve |
