SKU: HPC38-06N-SET
Summit HPC Couplings are designed to work at 10,000 PSI. Primary applications include High Pressure Jacks, Hydraulic Tools and Torque Equipment and Rescue Tools.

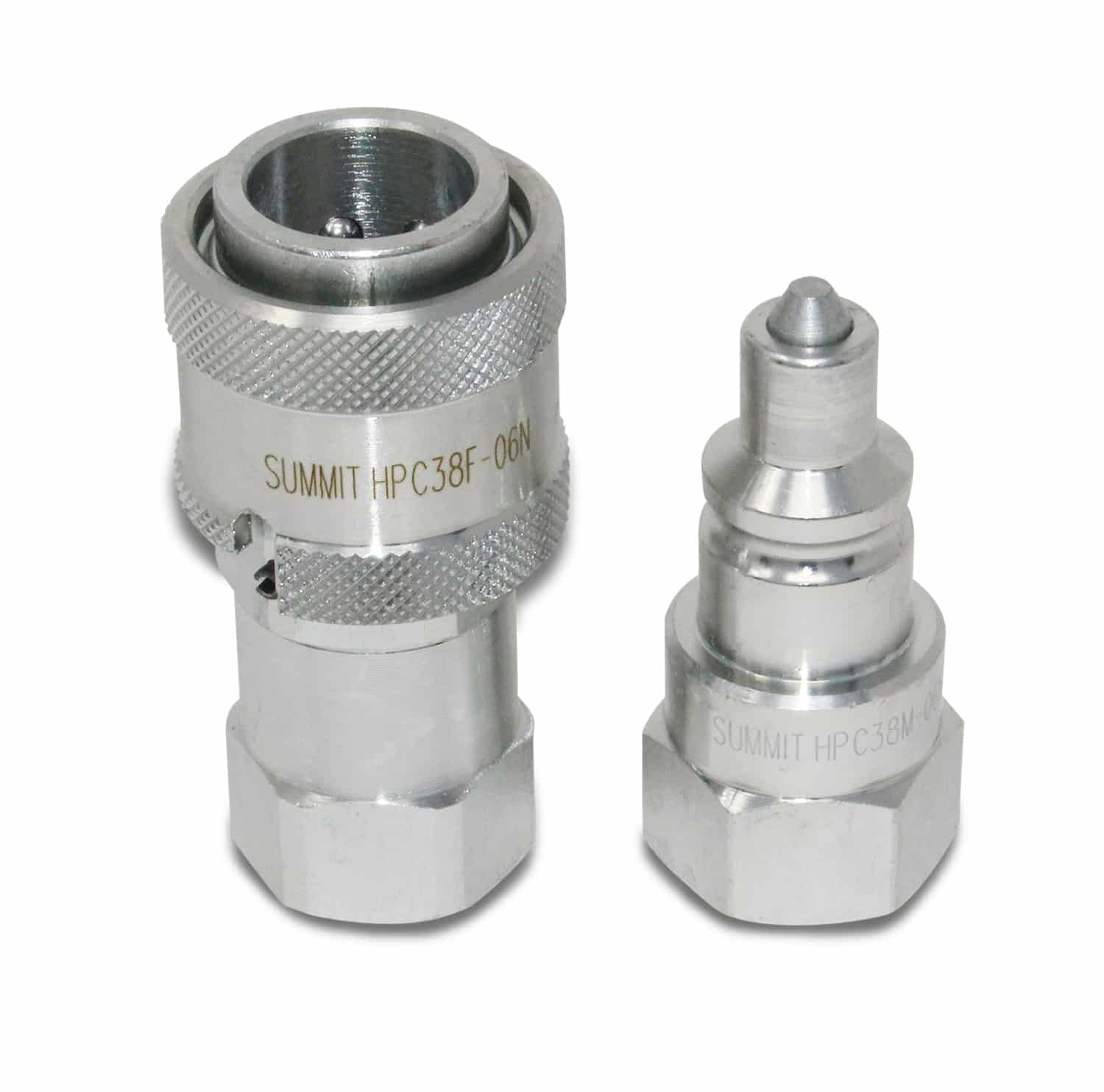

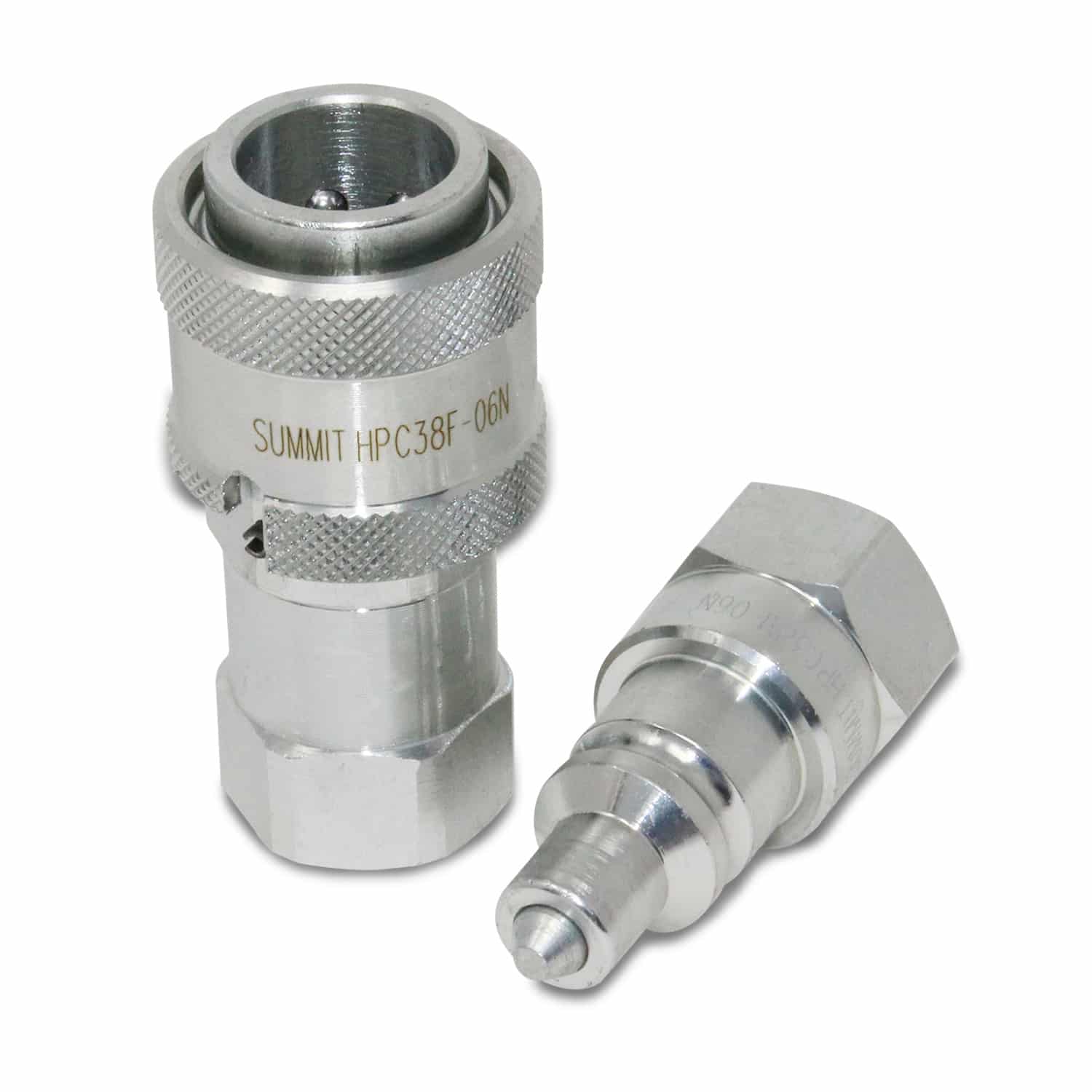

This 3/8″ 8coupler set consists of a male and female quick coupler.
Features:
- True push/pull connection allow for quick connection and disconnection
- Safety Sleeve Lock prevents accidental disconnects
- Slim Profile and compact design
- Hardened High Strength Steel provides long working life and durability
- Pressure Rating: 10,000 PSI
- Nominal Flow Rating: 6 GPM
- Burst Pressure Rating: 40,000 PSI
- Body Size: 3/8”
- Port Size: 3/8” NPT Thread
- Temperature Range: -15 Deg F to 400 Deg F

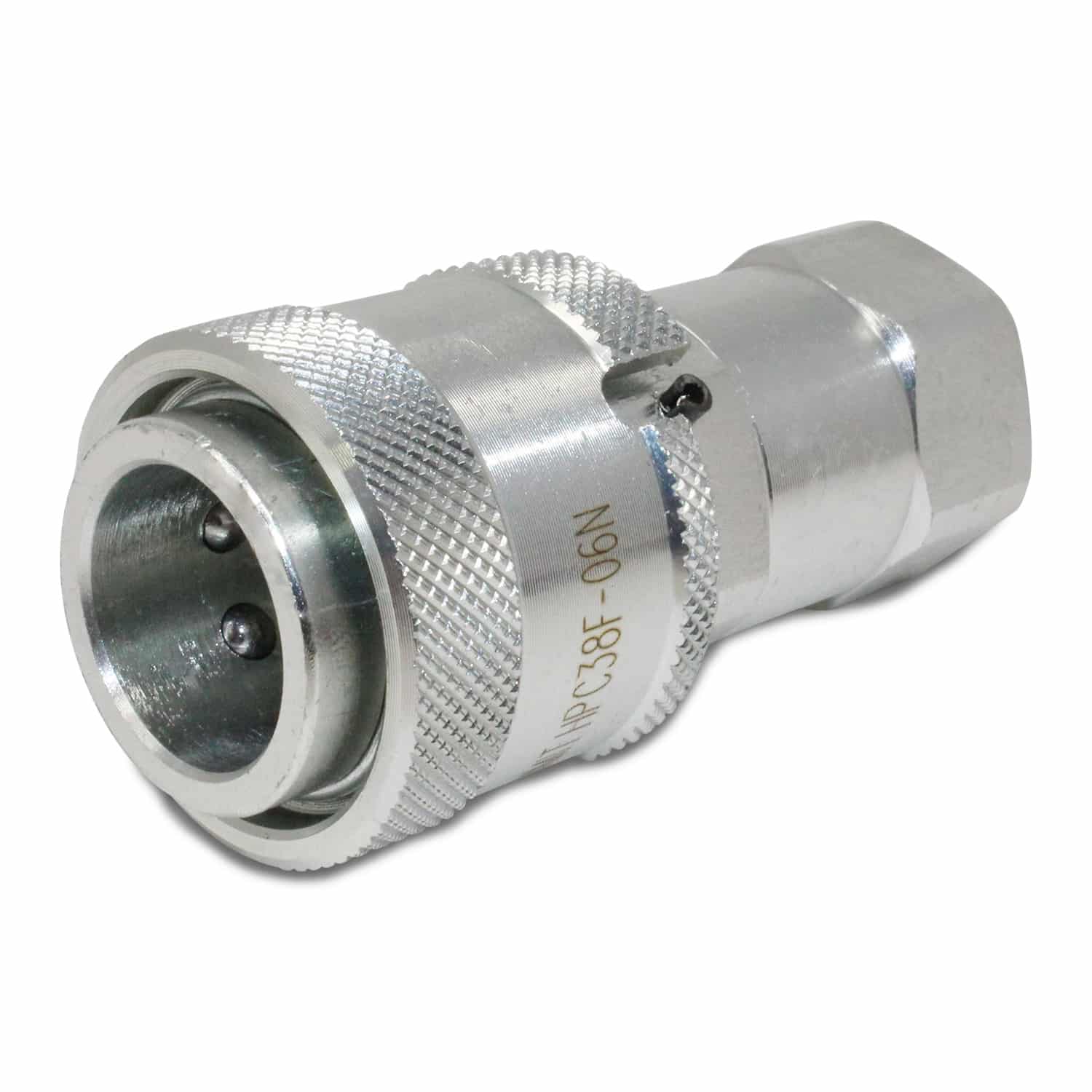

- Female Coupler Length: 2.56”

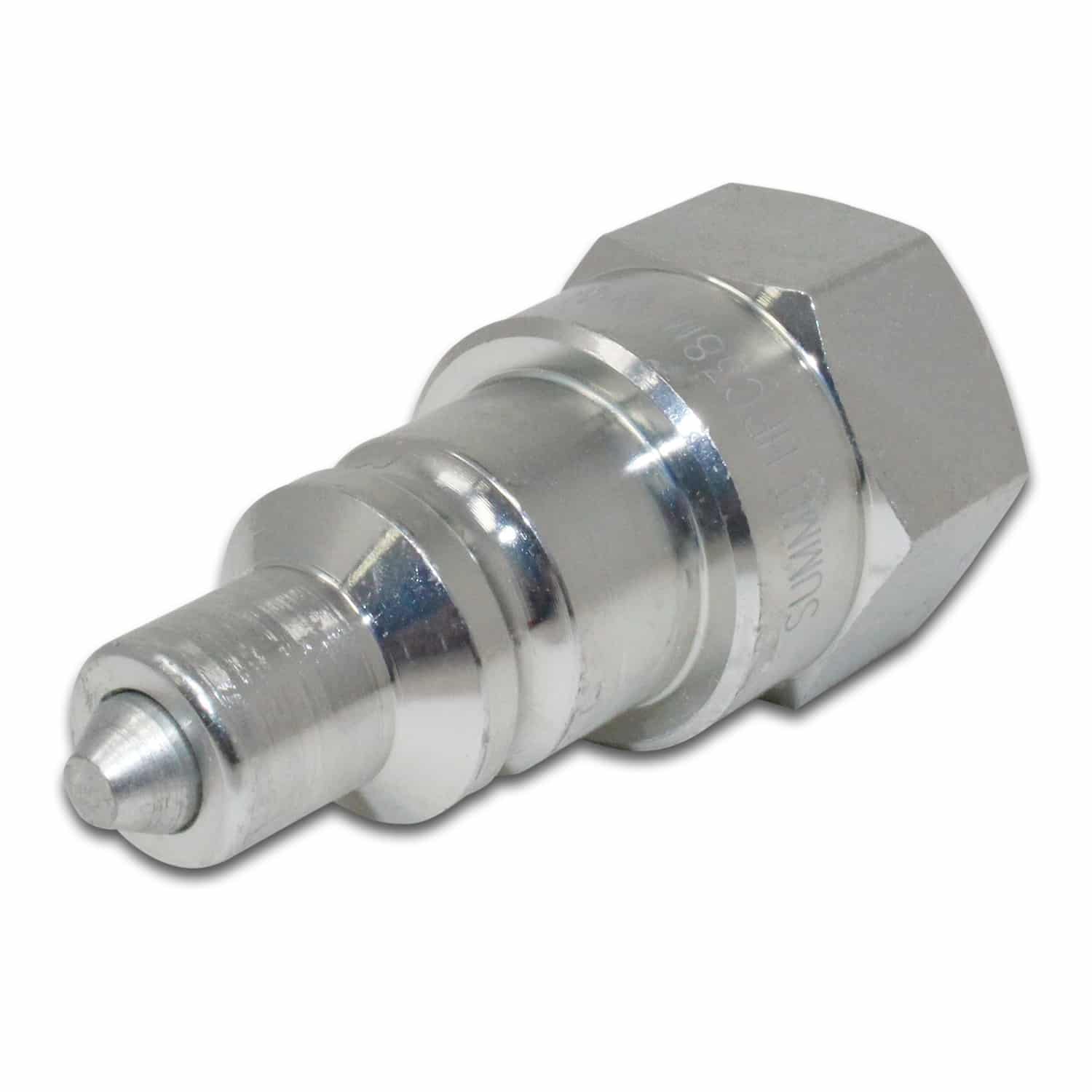

- Male Nipple Length: 2.19”
- Connected Length: 3.51”
Direct Interchanges:
- Parker TC Series
- Female: TC-371
- Male: TC-372
- Eaton Aeroquip FD35 Series
- Set: FD35-1000-06-06
- Female: FD35-1001-06-06
- Male: FD35-1002-06-06
| Weight | 1 lbs |
|---|---|
| Dimensions | 5 × 4 × 4 in |
| Style | 10,000 PSI High Pressure |
| Body Size | 3/8" |
| Thread Type | |
| Thread Size | 3/8" |
| Body Material | Hardened Steel |
| Locking Type | Sleeve |
