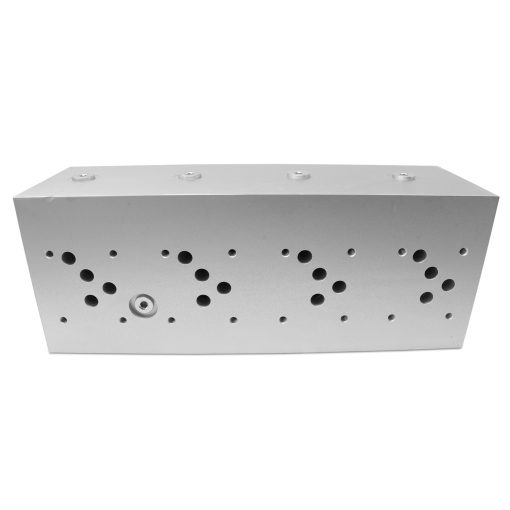

4 Valve Manifold Subplate, D03, Parallel, #8 SAE Ports

Summit Hydraulics Subplates, also referred to as mounting pads, subbases, and base plates, provide valves with a mounting pad and offer various port styles and locations to meet system design needs. The term ‘subplates’ describes the mounting of a single valve in a low-profile configuration. On the other hand, manifolds are utilized when multiple valves need to be mounted and generally have a taller height.

SKU: D03P4-08S

Specifications

• No. of Valves: 4
• Circuit: Parallel
• Pressure Rating: 3000
• Flow Rating: 15 GPM
• Valve Pattern: D03 (NG6)
• Relief Option: No Relief
• Port Size: Work Ports: #8 SAE (3/4-16 ORB) Female Thread
• Pressure & Return Ports: #10 SAE (7/8-14 ORB) Female Thread
• Port Orientation: Side Ported
