Hydraforce SV07-31-0-N-00 Spool Valve, 3-Way, Compact Size, 1.6 GPM

SKU: SV07-31-0-N-00

Hydraforce Part Number: SV07-31-0-N-00

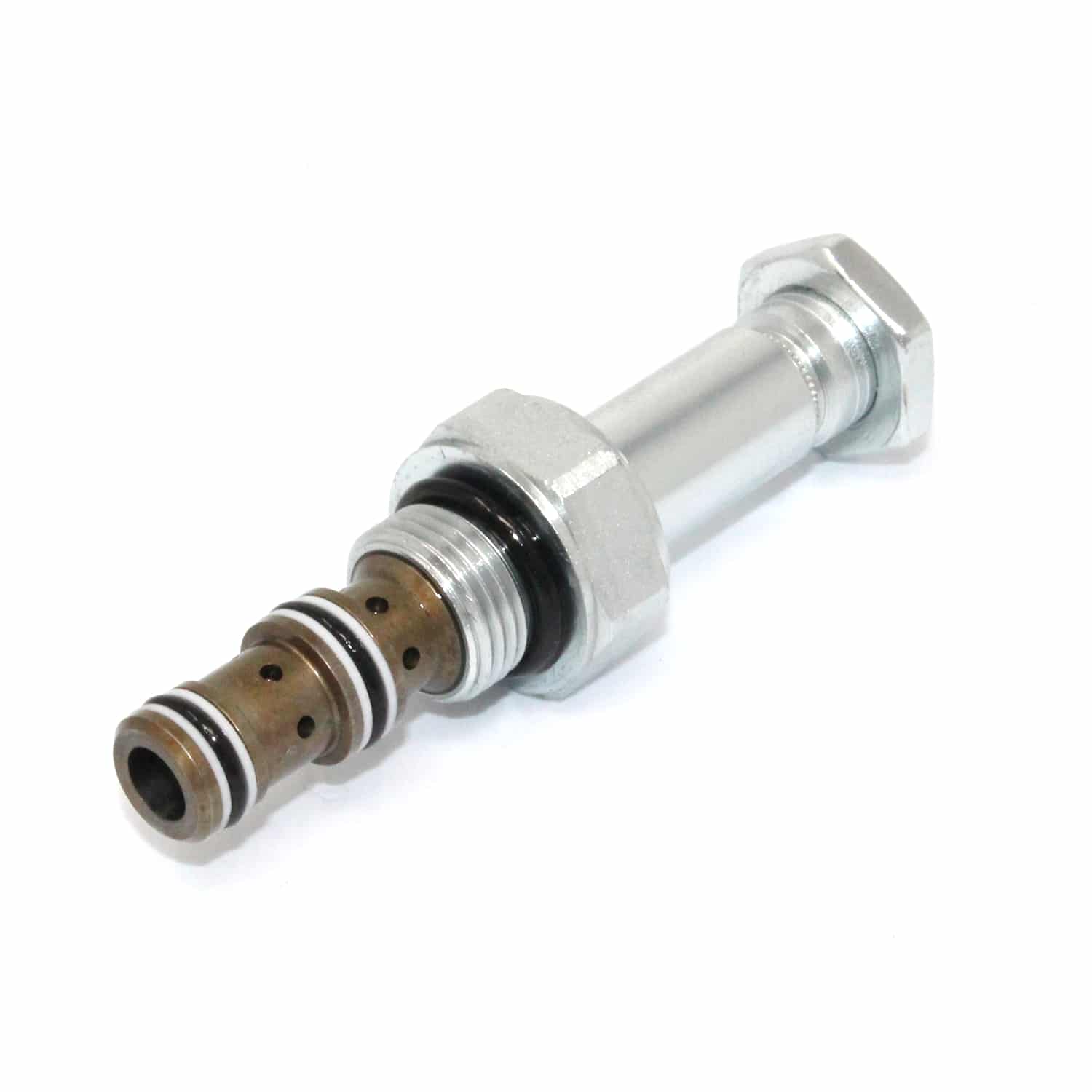

A solenoid-operated, 3-way, spool-type, screw-in hydraulic directional cartridge valve.

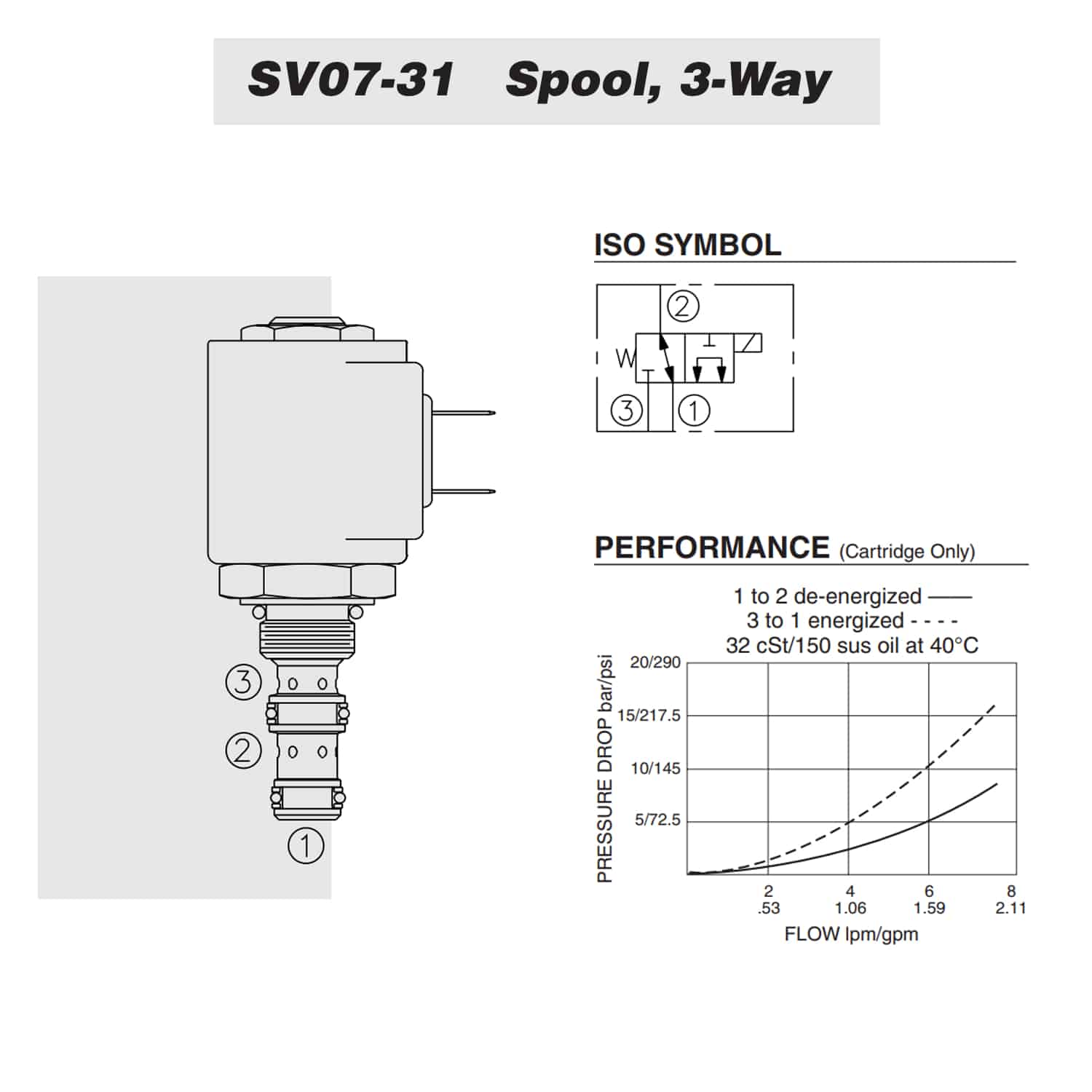

When de-energized, the SV07-31 allows flow from 2 to 1 while blocking flow at 3.

When energized, the cartridge’s spool shifts to open flow from 1 to 3, while blocking flow out 2.

While port 1 may be fully pressurized, it is not intended to be used as the inlet.

Features:

• 1.6 GPM max Flow
• 3000 PSI Rated
• Fits VC07-3 Cavity
