Hydraulic Multiplier Kit, 3 Circuit Selector Valve Including Couplers and Panel Mount Rocker Switch

SKU: HM3-08-RP

Port Size: #8 SAE (3/4″-16 O-Ring Boss)

Block Dimensions: 7″ Long X 2.5″ Wide x 6.25″ High

PRODUCT FEATURES

• Universal 3 circuit hydraulic multiplier
• 3-Position (On-On-On) Panel Mounted Rocker Switch
• Can operate with both double or single-acting cylinders
• Use with open, closed or FPC Hydraulic systems.
• Anodized body for durability and corrosion protection
• Durable Bracket for easy installation
• Heavy-duty chemical-proof and weather-resistant 12V DC solenoid valves (24V coils can be ordered)
• Up to 3000 PSI

PRODUCT DESCRIPTION

This Hydraulic Multiplier is designed to add additional hydraulic implements to your tractor. This is not a hydraulic control valve, and does not control the flow of fluid in/out of a hydraulic cylinder, only where the fluid should be directed. However, this kit can be used to add additional rear remotes, a top link, or auxiliary hydraulics.

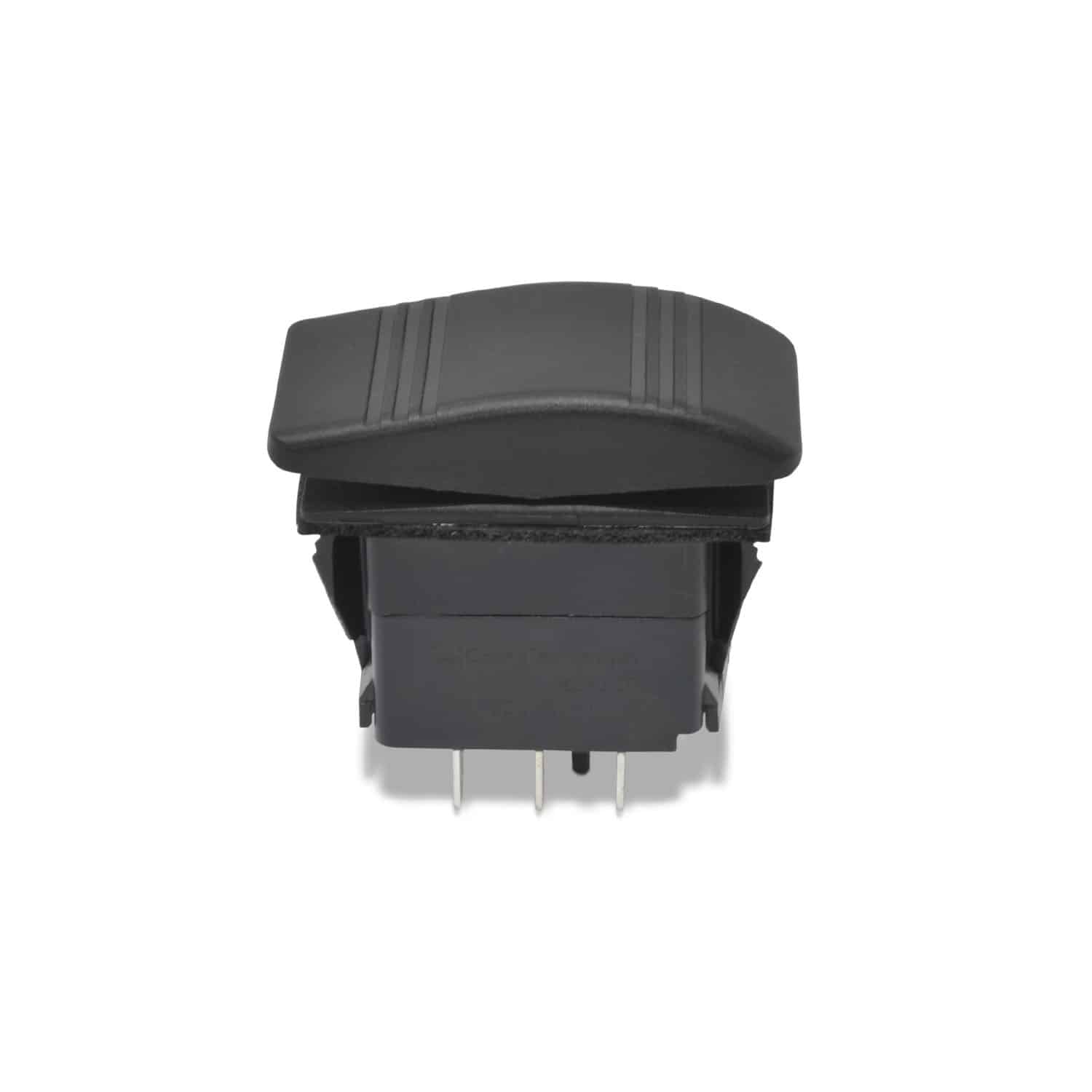

The panel mounted rocker switch features a 3-position (On-On-On) switch which allows you to select circuits 1, 2, or 3.

Commonly used to add:

• Rear Remotes
• Top Links
• Grapples
• Balers
• Mowers
• Snow blowers
• Markers
• Other hydraulic equipment

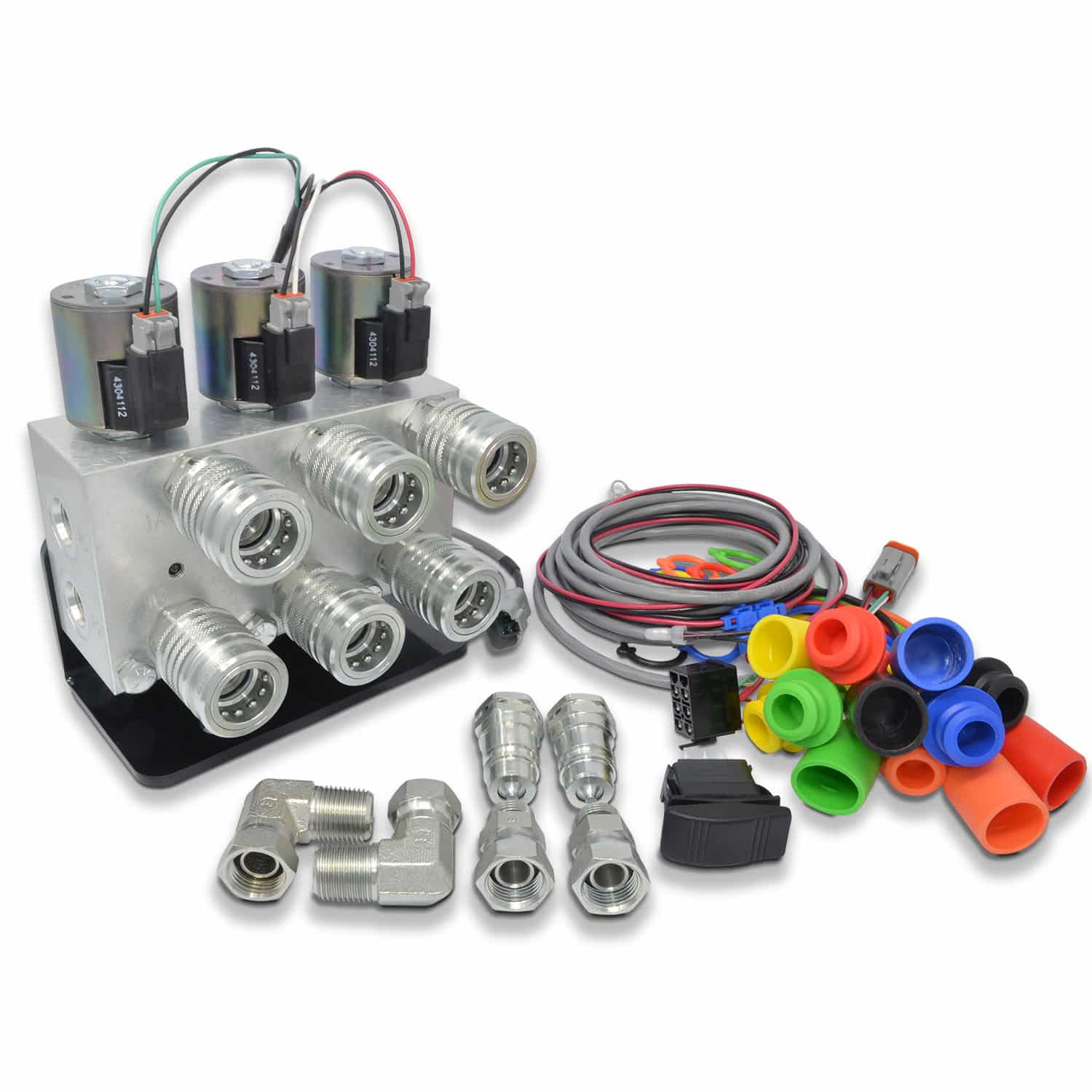

KIT CONTAINS

• Manifold block with 12V solenoid valves

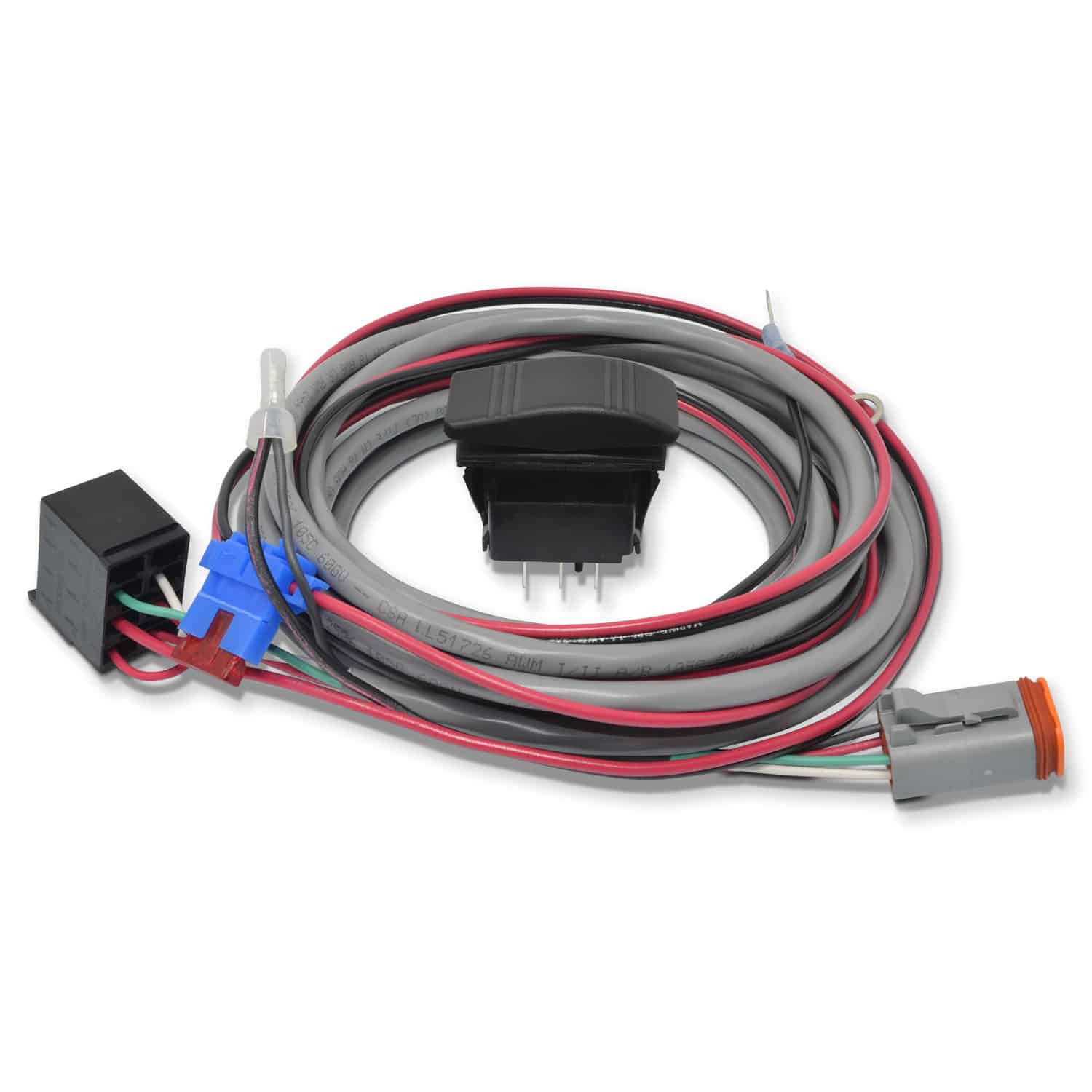

• 3-Position Panel Mounted Rocker Switch (On-On-On)
• 6 female quick-connect 1/2″ body ISO/Pioneer-style couplers
• 1 Angle Steel Bracket with Hardware ( 3 Bolts, 3 Washers, 3 Lock-Nuts)
• 2 male 1/2″ body ISO/Pioneer-style tips
• 2 1/2″ NPT Female adapters
• 2 1/2″ NPT Female Swivel Elbows
• 6 dust plugs
• 6 dust caps
• Zip ties
• Installation and operators’ guide
• 1-year manufacturer warranty
• 60-day returns policy
• Proudly assembled in the USA
