Electric Dual Rear Remote Kit For John Deere 2032R, 2025R, 1026R, 1025R, 1023E

Electric Dual Rear Remote Kit For John Deere 2032R, 2025R, 1026R, 1025R, 1023E

This electronic dual rear remote kit is an all-in-one solution to adding additional hydraulic implements to your John Deere 1000 & 2000 Series tractors. It allows you to easily add rear remotes via our 3-Circuit Hydraulic Selector Valve. This kit includes everything you need, including hoses, switch, couplers, valve, and dusts caps.

(Not designed for tractors with cabs or closed cabs)

How it Works:

The two hoses attached to the side of this valve are connected to your current loader valve, utilizing the included male quick connect couplers. From there, you’ll connect the other set of hoses to your tilt function on your front-end loader. Finally, you’ll connect the switch box to 12v DC power easily using the cigarette plug adapter. Now you’re ready to connect any number of hydraulic implements! The first position on the switch will allow you to use your tilt function, while the 2nd and 3rd positions on the switch will allow you to use either of the other remotes on the valve.

Commonly used to add:

• Rear Remotes
• Top Links
• Grapples
• Balers
• Mowers
• Snow blowers
• Markers
• Other hydraulic equipment

KIT CONTAINS

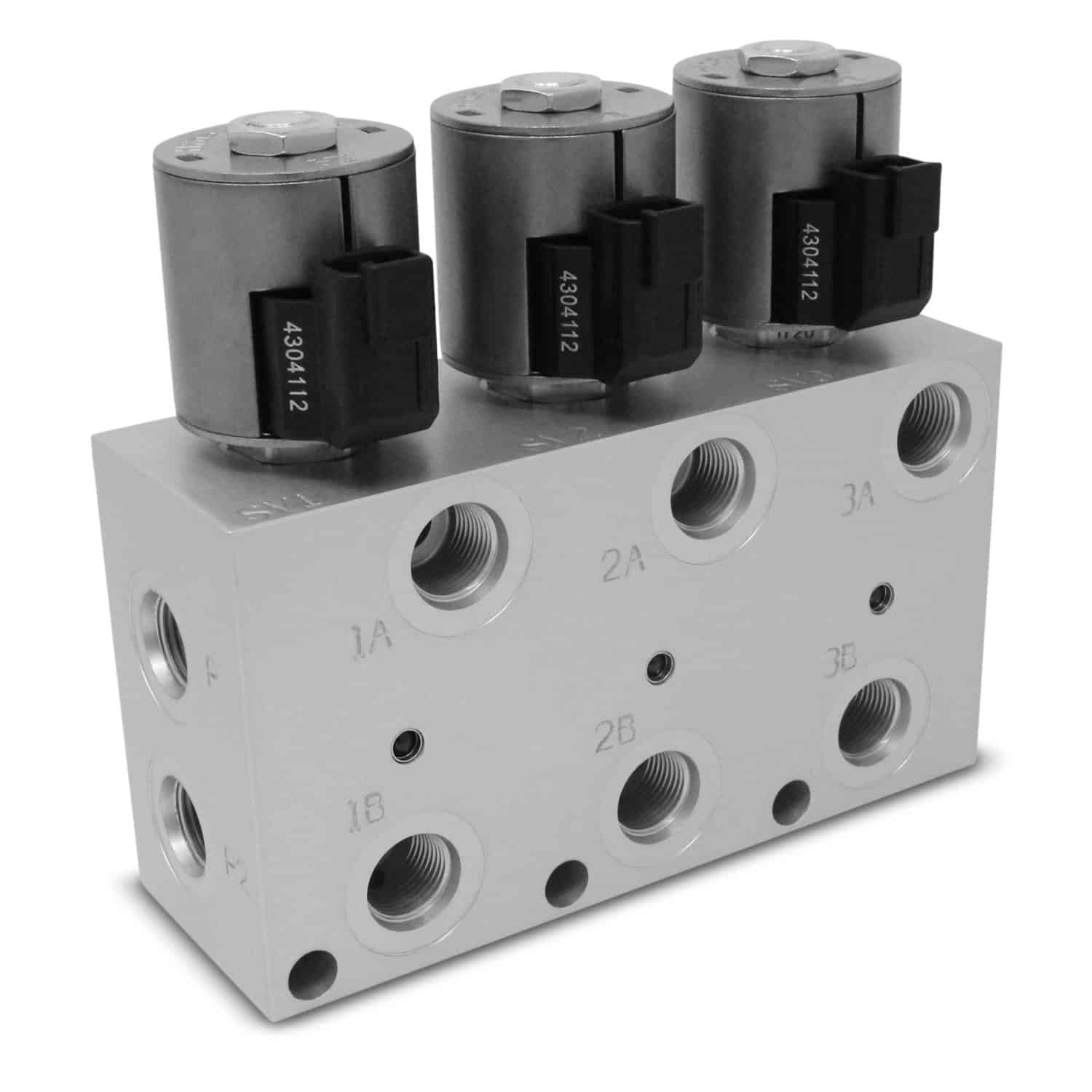

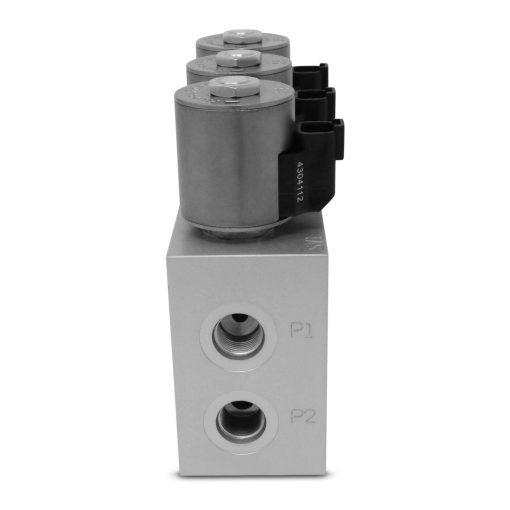

• Manifold block with 12V solenoid valves

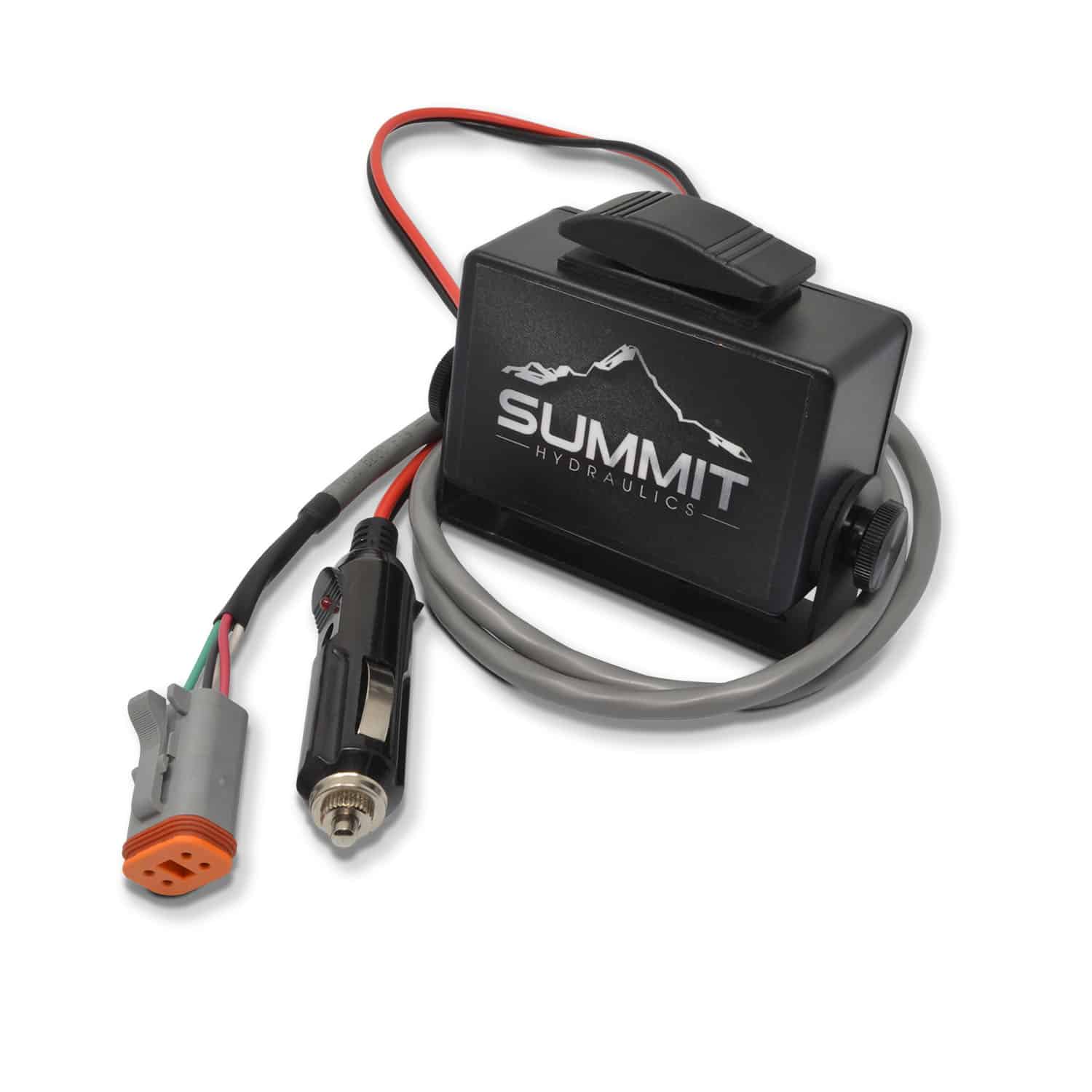

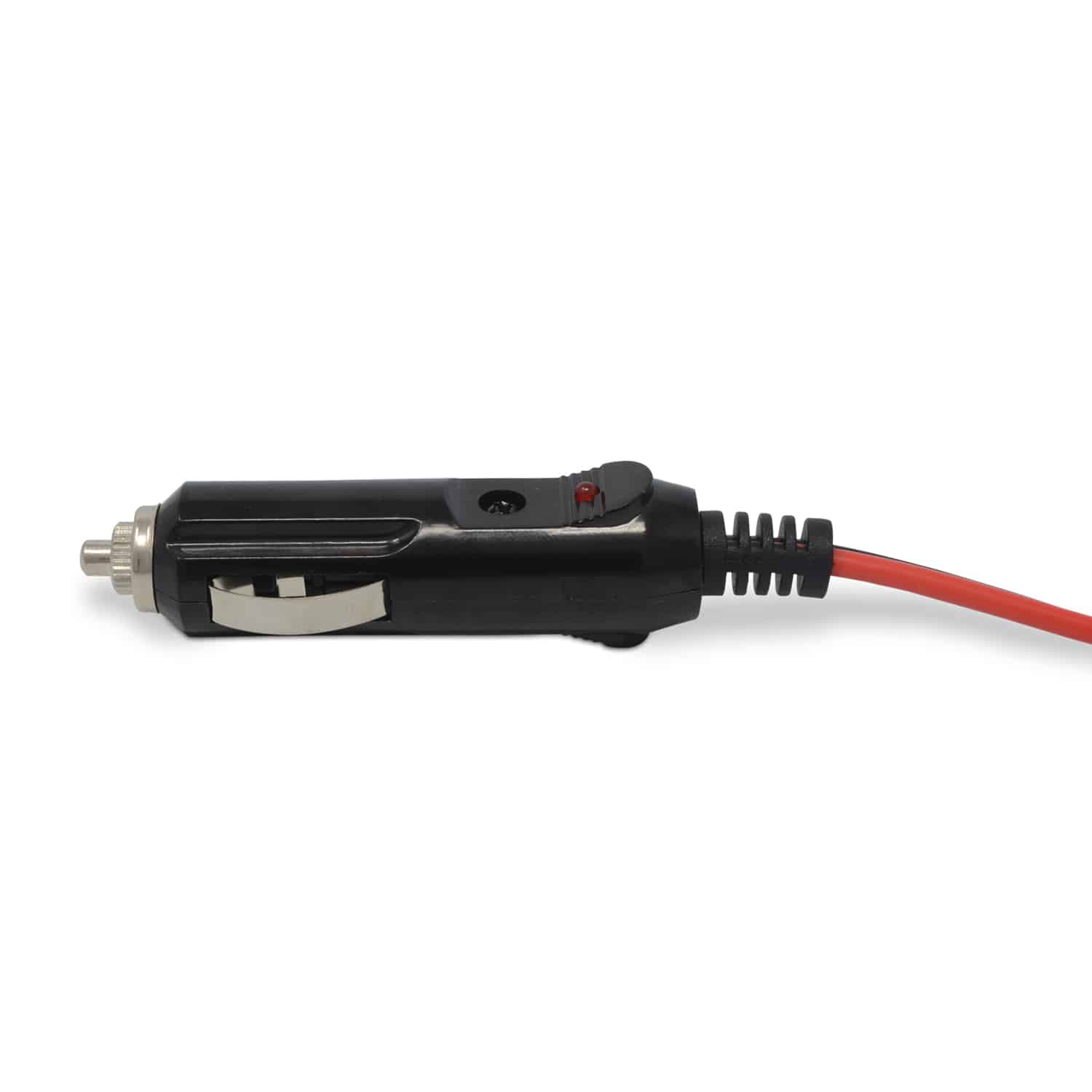

• 3-Position Rocker Switch (On-On-On) with cigarette plug adapter
• 4 – 3/8″ Hydraulic Hoses

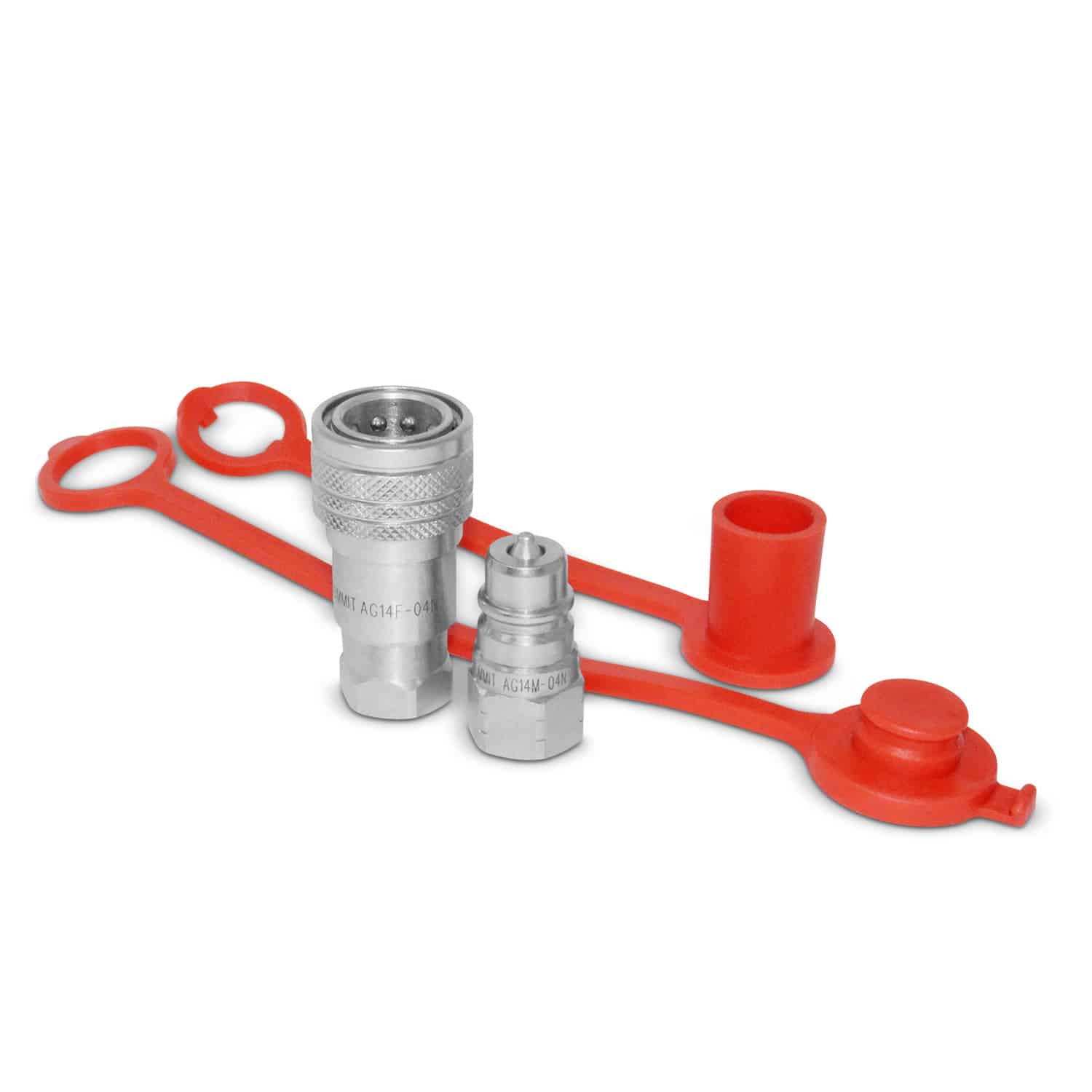

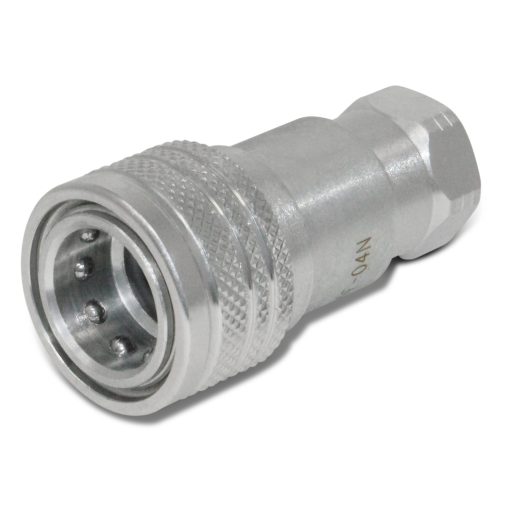

• 6 – Female AG Style Quick-Connect Couplers

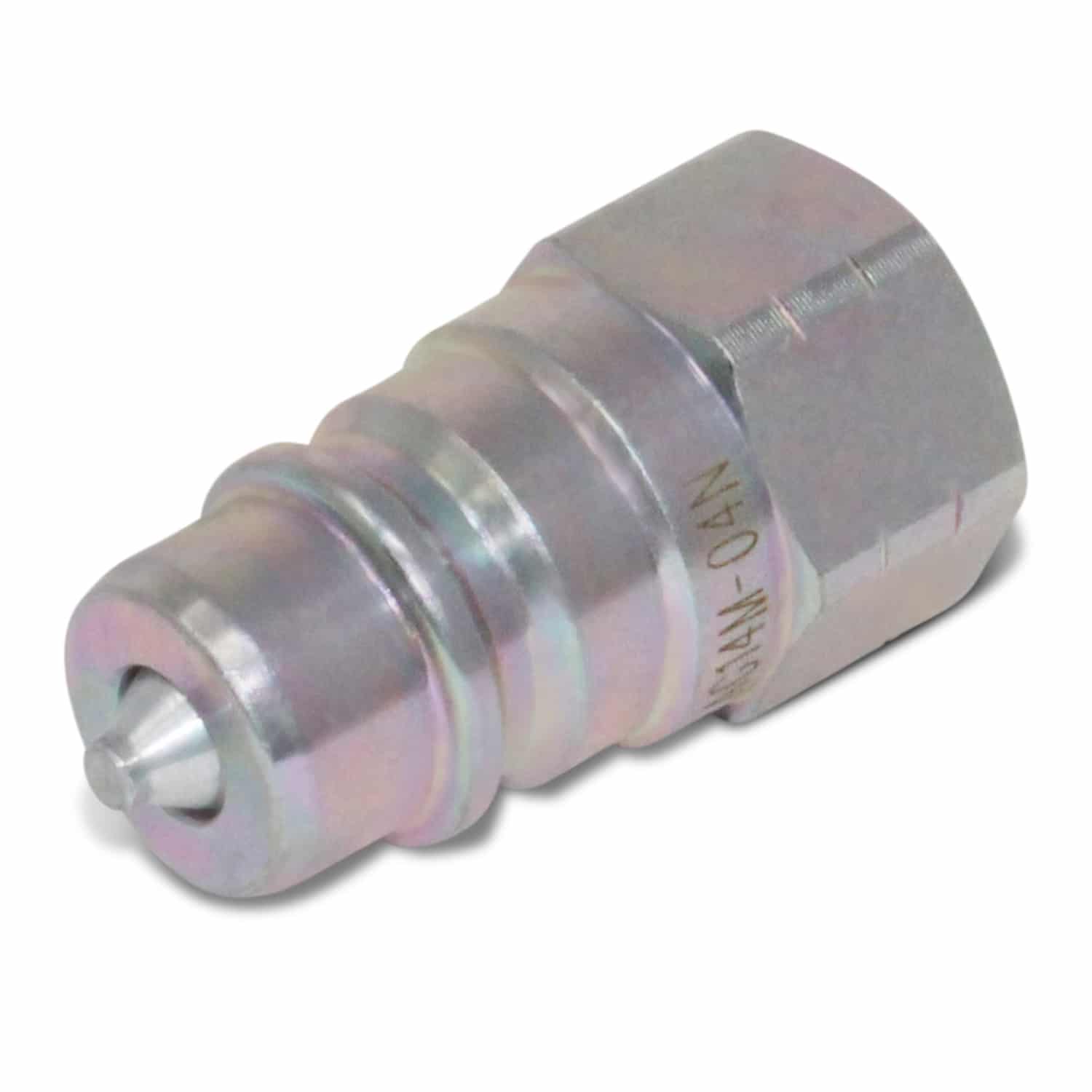

• 2 – Male AG Style Quick-Connect Couplers
• 4 – ORB/SAE Adapter Fittings
• 6 – 90 Degree 3/8″ JIC Male Elbows
• 6 – Dust Plugs
• 6 – Dust Caps
• Zip Ties
• Installation Manual
• 1-Year Manufacturer’s Warranty
• 60-Day Returns Policy
• Assembled in the USA

This electric dual rear remote kit is specifically designed for use on the following John Deere model tractors:

• 2032R
• 2025R
• 1026R
• 1025R
• 1023E
