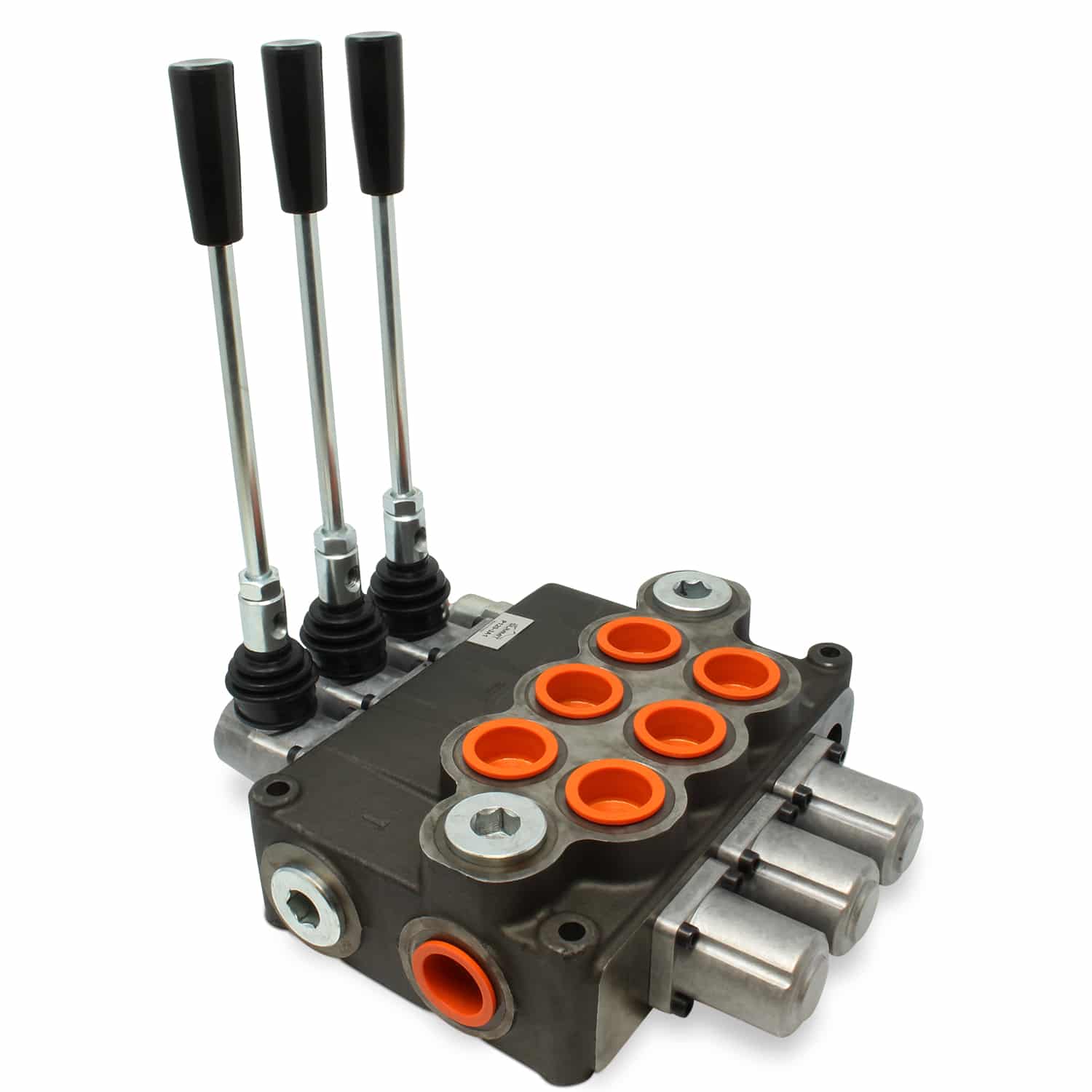

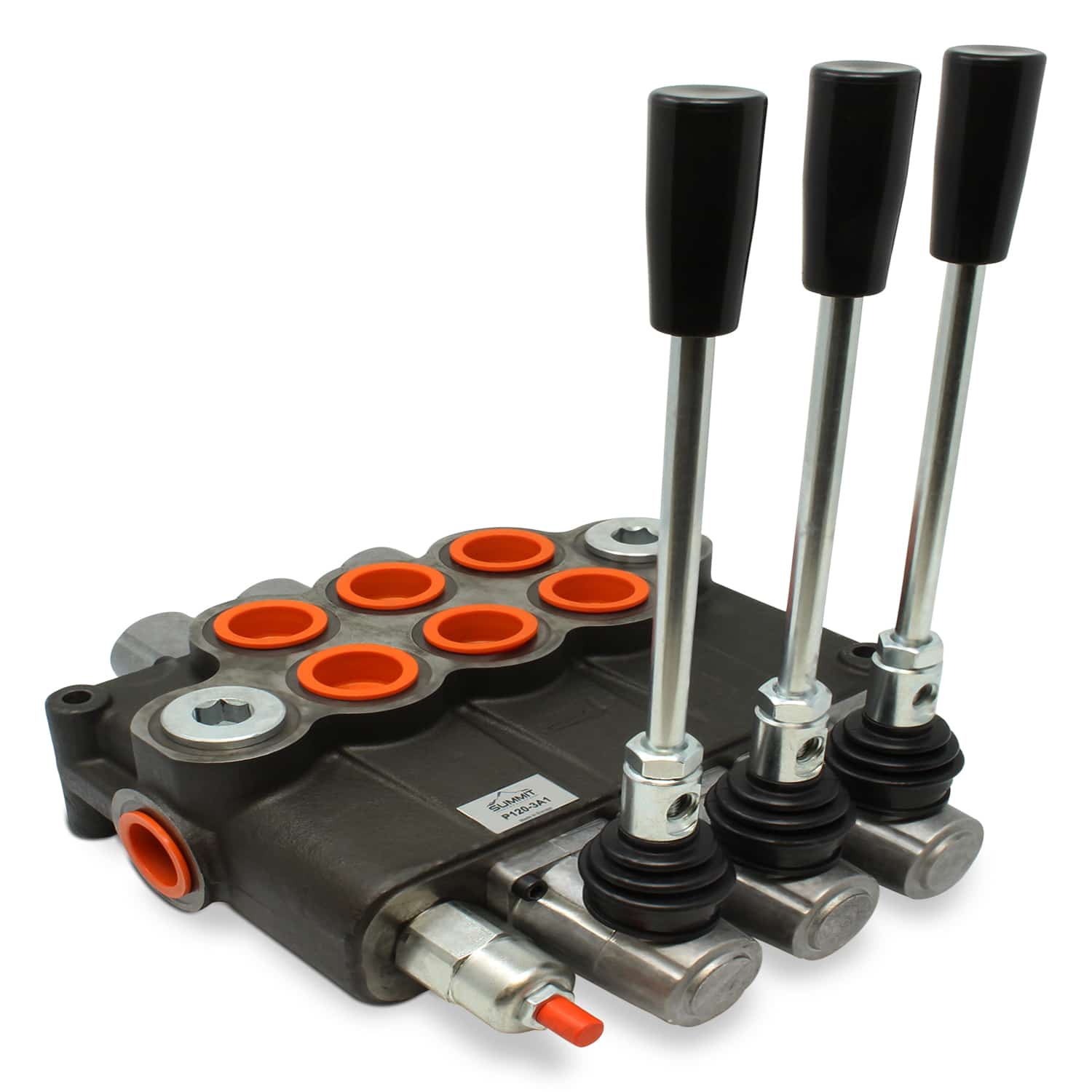

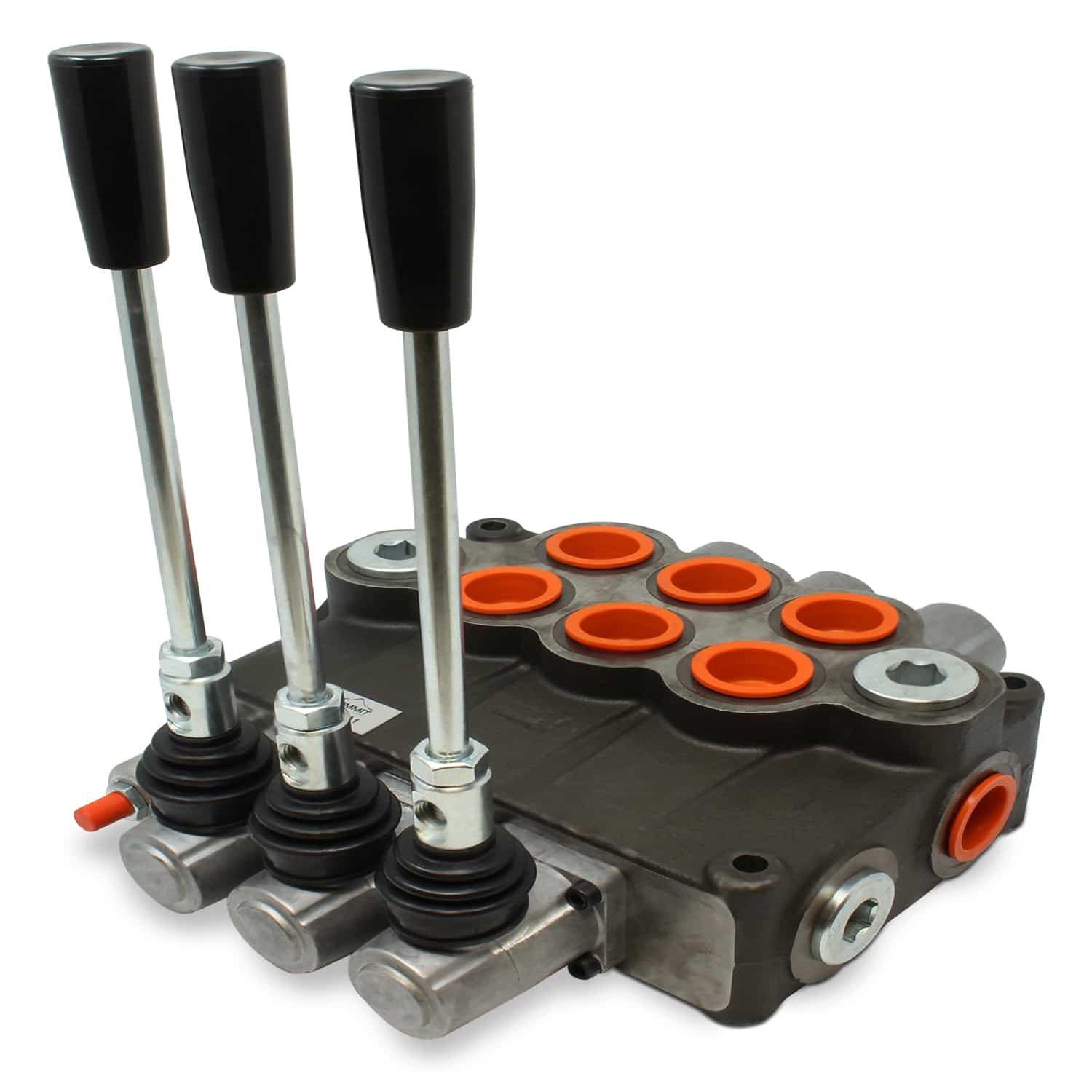

Monoblock Hydraulic Directional Control Valve, 3 Spool, 31 GPM

Monoblock Hydraulic Directional Control Valve, 3 Spool, 31 GPM

SKU: P1201-3A1

This monoblock valve is a hydraulic directional control valve. These manual operated valves are used to start and stop fluid flow into hydraulic cylinders or hydraulic motors.

Common Uses:

• Used to operate hydraulic cylinders (Double-Acting or Single-Acting)
• Install rear remotes on a tractor

Benefits:

• 3 spool manual operated valve with compact design allows for installations in tight areas
• All spools are standard double acting with spring return to neutral position which are ideal for double acting cylinders
• Used for open center systems (Pump to Tank Flow) – closed center option available
• Anti-drop load checks on each spool
• Precision ground and hard chrome-plated spools assure a long life
• High-tensile strength cast iron monoblock construction
• SAE O-Ring ports ensure solid seal and prevent blockages
• Vertical or horizontal handle mount
• Adjustable Relief Valve Range:  1500 to 3625 PSI
• Preset Pressure Relief: 2,610 PSI

  Features:

• Max Operating Pressure: P = 3625 PSI, T = 725 PSI, A & B = 4350 PSI
• Flow Rating: 31 GPM (117.35 l/min)
• A & B Work Ports: #16 SAE O-Ring (1 5⁄16 – 12) Thread
• Inlet Port: #16 SAE O-Ring (1 5⁄16 – 12) Thread
• Outlet Port: #16 SAE O-Ring (1 5⁄16 – 12) Thread
• N Port: #16 SAE O-Ring (1 5⁄16 – 12) Thread
• 3 – 5/16” Mounting Holes
• Made in Europe

Will this manual valve work for my application?

You’ll need to answer the following questions:

1. Is the flow through this valve less than 31 GPM? If installing on a tractor please check tractor-data.com, it will say under the hydraulics – “Pump Flow” – of the data sheet. The GPM flow may be printed on the pump itself.
2. Do you have an open-center hydraulic system? If you’re installing this on a tractor please check tractor-data.com, it will say under the hydraulics of the data sheet. These valves are setup for use on open-center hydraulic systems.

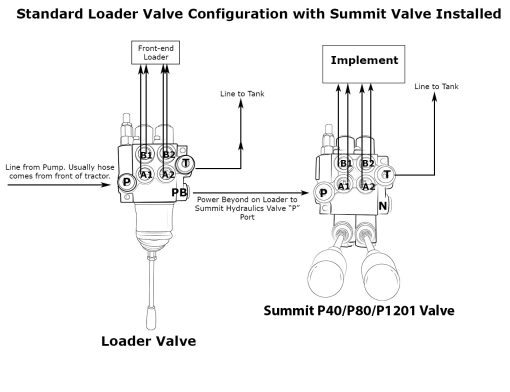

How do I connect this 3 spool valve to my hydraulic system?

This Monoblock Hydraulic Manual Control Valve has a pressure line (Inlet), tank line (outlet), work ports (A/B ports that go to hydraulic cylinder or motor), and optional power beyond port (N Port, used to connect valves downstream).
