SKU: BB1M-16N
The ISO 7241 B Series of quick disconnect couplers are used on a large spectrum of hydraulic applications with strenuous quality standards such as the aerospace, automotive, electronics industries. They are also recommended for general purpose, machine tools, mobile hydraulics, and other equipment applications. Our Series B couplers are interchangeable with all ISO 7241 B series couplings.
Body Size: 1″ Body
Thread Size: 1″ NPT Thread, Poppet Valve
Benefits:
- Body Material: Brass material for corrosion resistance
- Spring Material: 304 Stainless Steel
- Locking Ball Material: 316 Stainless Steel
- Self Sealing Poppet Valve Seals Excellent Under High and Low Pressures
- Seal Type: Viton FKM
- Self Sealing Poppet Valve Seals Excellent Under High and Low Pressures
- Interchangeable with all ISO 7241 B series couplings
- Temperature Range: -15°F to +400°F

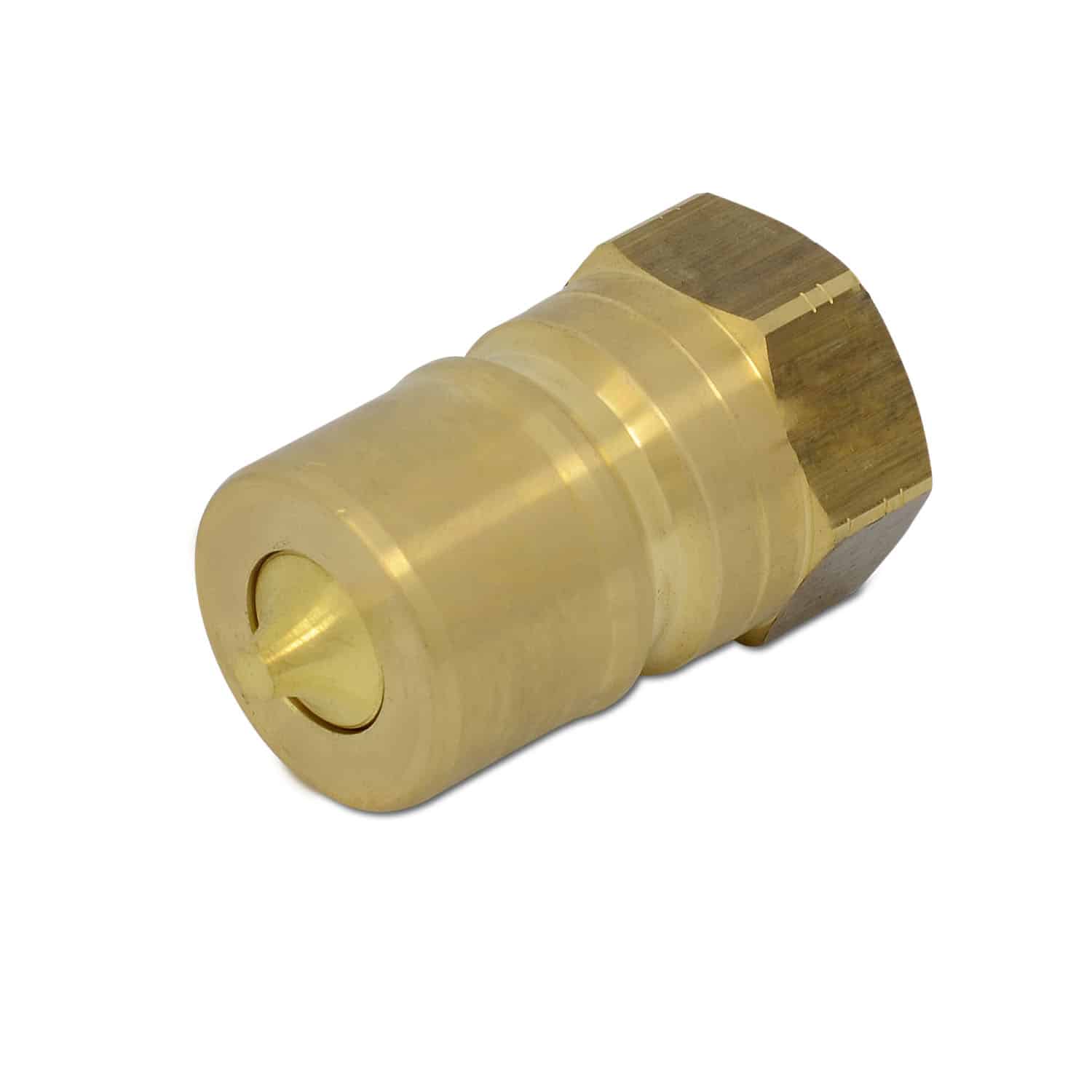

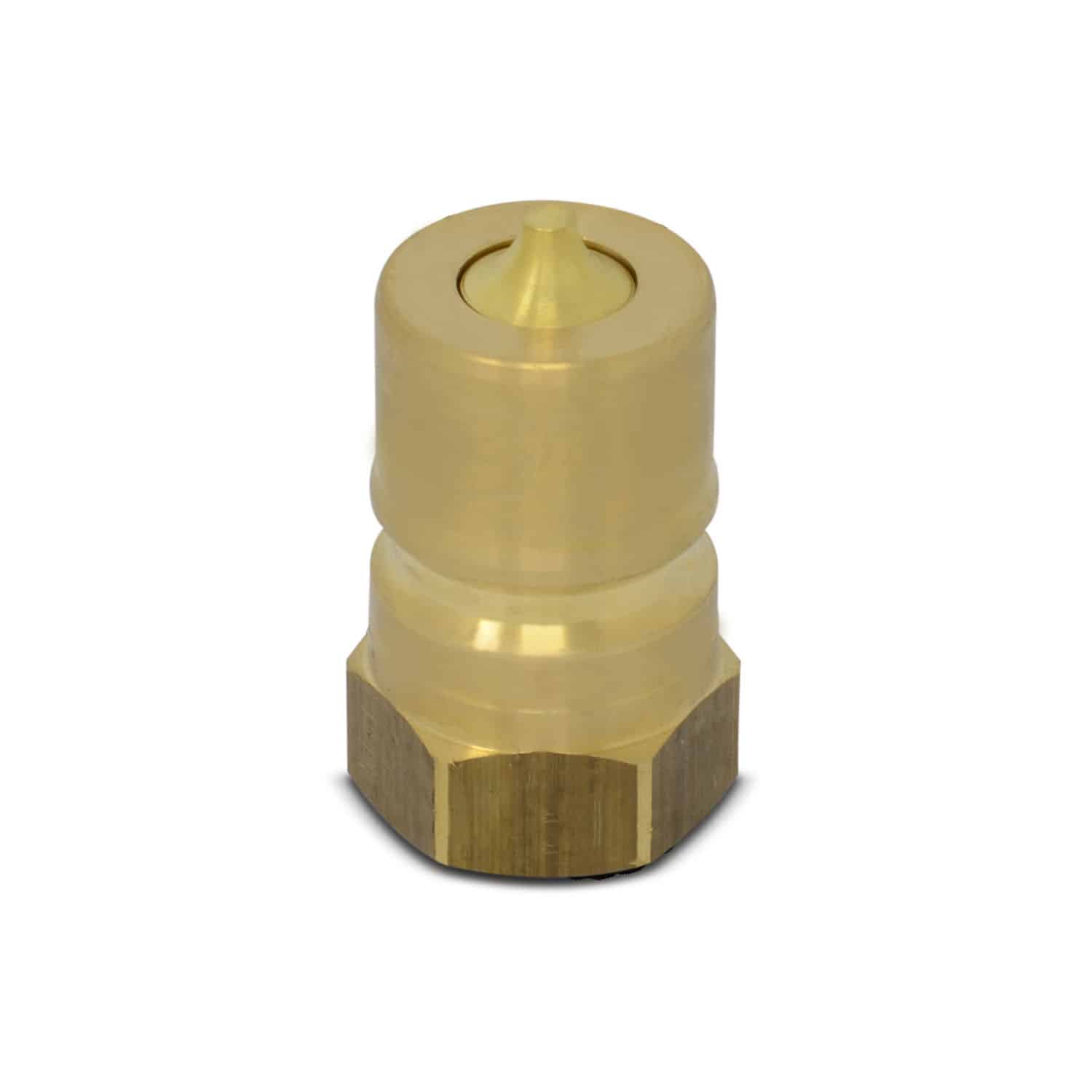

This 1″ male coupler connects to its female equivalent. We also carry a complete set, including a single male and single female coupler.
Features:
- 2000 PSI Rating
- Nominal Flow Rate: 50 GPM
- Max Flow Rate: 68.68 GPM
- Male Face Diameter 1.46” (65mm)
- Male Length: 2.90” (105mm)
- Hex: 1.60” (41mm)
Interchangeable with:
| Manufacturer | Male |
| SUMMIT | BB1M-16N |
| Parker 60 Series | BH8-61 |
| Safeway BS10 Series | BS101-8 |
| Faster HNV Brass | HNV 1 NPT M 5V |
| Snap-Tite 72 Series | B72N16-16F |
| Stucchi IRBO Series | M IRBO100 NPT 804501111 |
| Dixon H-Series | H8F8-B |
| Eaton HK Series | B8KP36 |
| DNP HNV Series | HNV-B-16-16-N-NPT |
Kit Includes:
- 1 Male Coupler
| Weight | 0.84 lbs |
|---|---|
| Style | ISO 7241-B |
| Body Size | 1" |
| Thread Type | |
| Thread Size | 1" |
| Body Material | Brass |
| Locking Type | Sleeve |
