Rear Hydraulic Valve Kit for Bobcat CT1021, CT1025 Series Tractors

Rear Hydraulic Valve Kit for Bobcat CT1021, CT1025 Series Tractors

Fitment: Bobcat CT1021, CT1025 w/ FL6 Loader

NOTE: This kit was designed on a tractor without a Backhoe. Potential hose length, and hose routing interference could occur. Please contact us if you see any issues during installation.

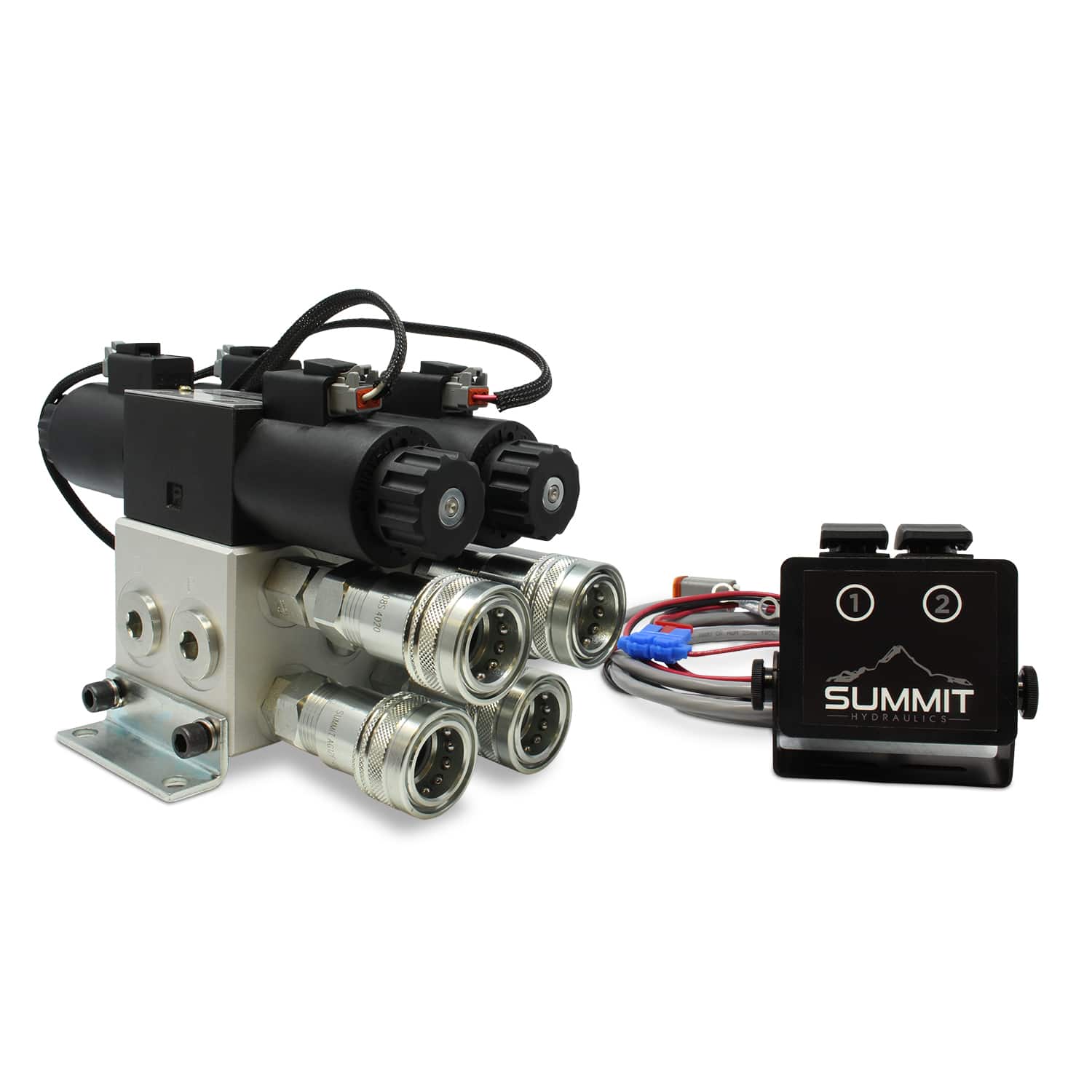

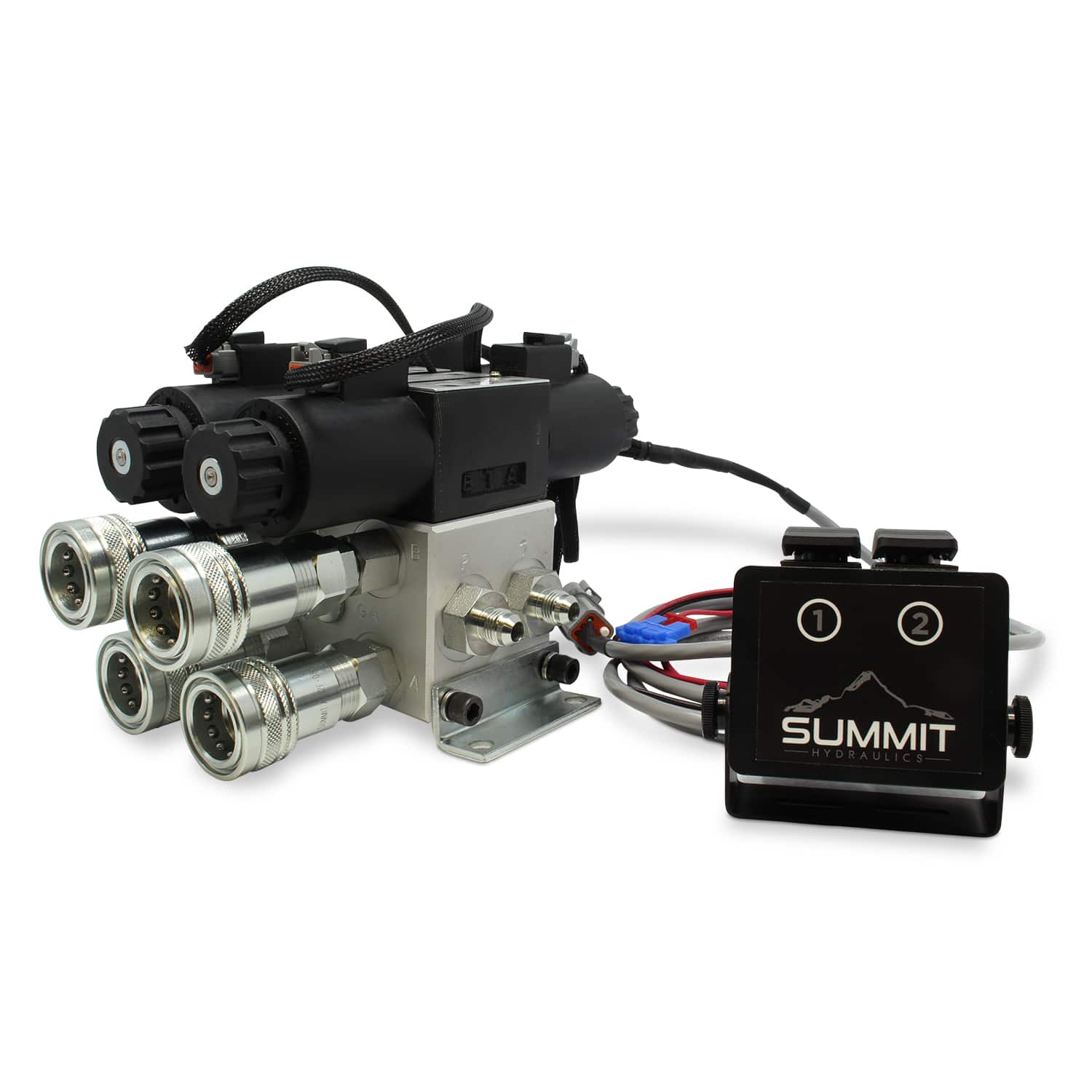

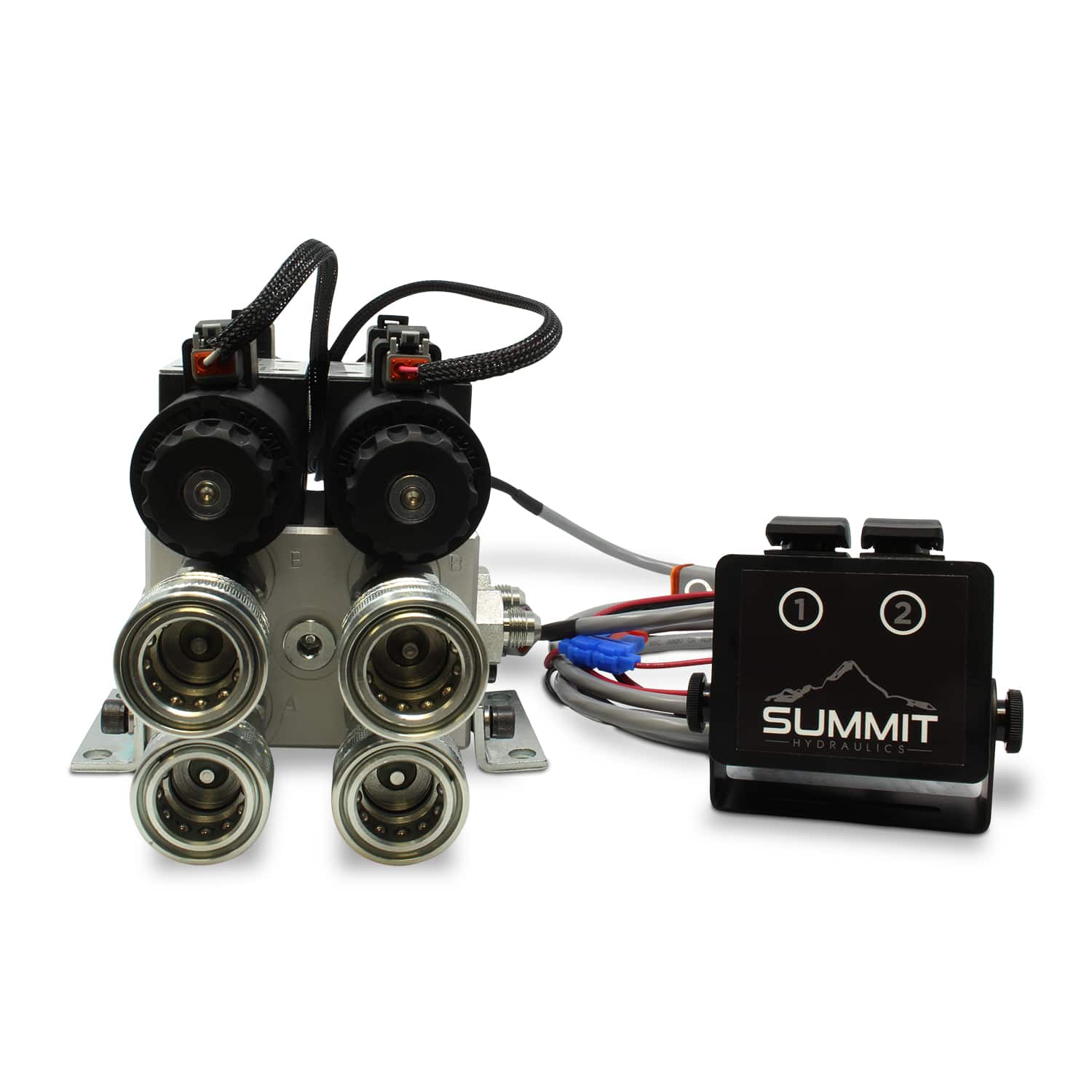

This all-in-one rear remote valve kit is designed to install on Bobcat Tractor CT1021, CT1025 Series to add rear remote connections and a third function. This allows you to easily control various hydraulic implements in the front and rear using our Summit Hydraulics joystick and/or switchbox controls. You can add two, three, or four rear remote coupler sets to your machine and a third function in the front.

To support this kit, you can purchase one of our hydraulic cylinders. You can add a top link cylinder kit to your Bobcat tractor. Other top link cylinder kits are available.

Third function commonly used to add:

• Log Splitter
• Rake
• Disc Mower
• Rear Blade

(Not designed for tractors with cabs or closed cabs)

The kit requires minimal basic tools and no prior hydraulic experience to install. It will mount directly to your ROPS Bar. The kit will act independently from the other hydraulic valves on your machine.

NOTE: The rear remote connections on your machine will be 1/2″ Body AG ISO 5675 Female Couplers. The hoses for your implements will need 1/2″ Body AG ISO 5675 Male Couplers.

Kit includes joystick handle that replaces your existing handle and has two integrated momentary push button switches so you can open and close your cylinder with a push of a button. This joystick would control the first function/spool of our valve. Our joystick handle has a comfortable ergonomic design and is fully weatherproof. The handle will attach onto existing joystick shaft using the removable adapter bushings and adjustment screws.

For different variations, the kit also includes one, two or three button momentary rocker switches that spring automatically to the neutral position.

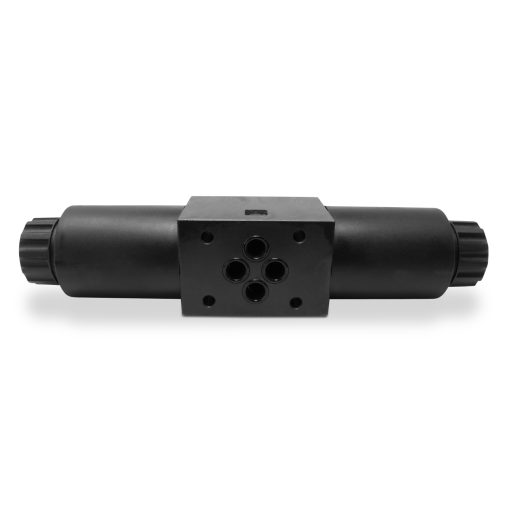

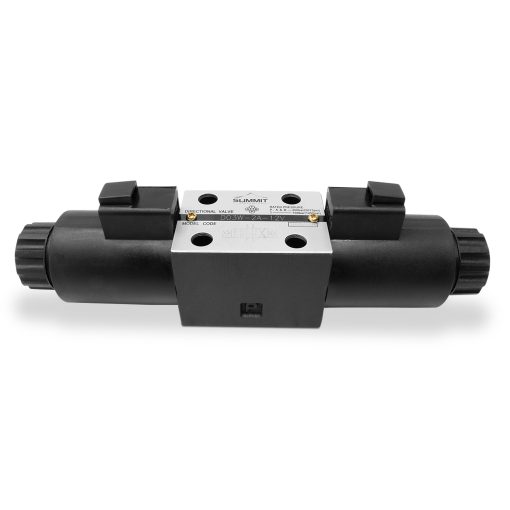

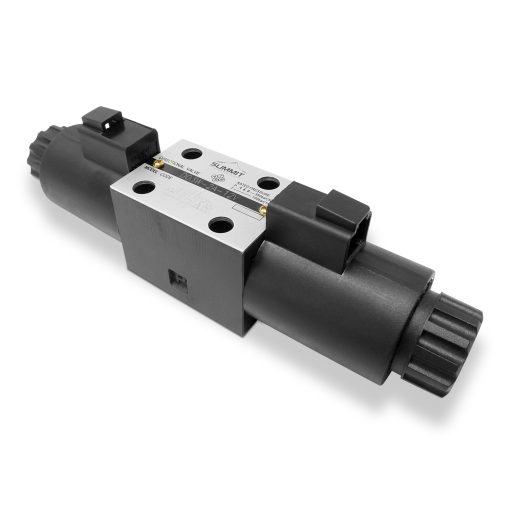

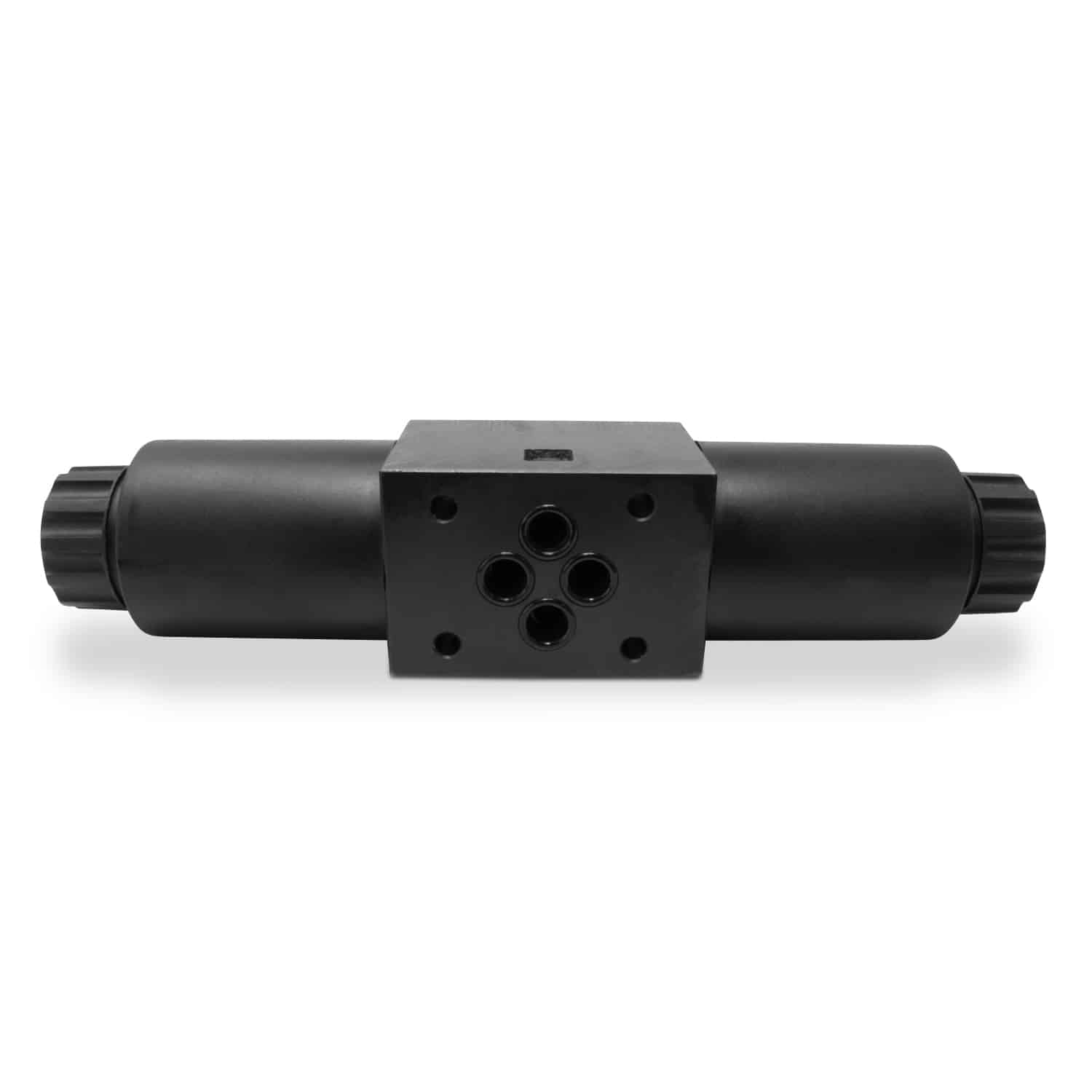

Valve Body Features:

• Solid aluminum housing designed for rugged use
• Max Operating Pressure: P = 5080 PSI, T = 3050 PSI, A & B = 5080 PSI
• Flow Rating: 15 GPM
• Aluminum Body
• 3000 PSI Rated
• Port Sizes:
• Work Ports: #8 SAE (3/4 – 16 ORB) Female Thread
• Pressure & Return Ports: #10 SAE (7/8- 14 ORB) Thread

Switch Features:

• Switch Box with one, two or three momentary rocker switches that spring automatically to the neutral position
• Switch Box with Harness
• Valve harness uses Deutsch environmentally sealed connections for great functionality in harsh weather
• Valve Harness with Deutsch connectors
• Optional 10′ and 20′ Extension Harness Available

Joystick Handle:

• Ergonomic design with two momentary push button switches
• Fully weatherproof
• Mounts on existing loader joystick shaft
• Removable adapter bushings designed to fit any joystick shaft
• Connects to 12v power source

Solenoid Specifications:

• Nominal Voltage Tolerance +/- 10%
• Power Rating: 37 Watts
• Amps: 3.08
• 100% Duty Cycle

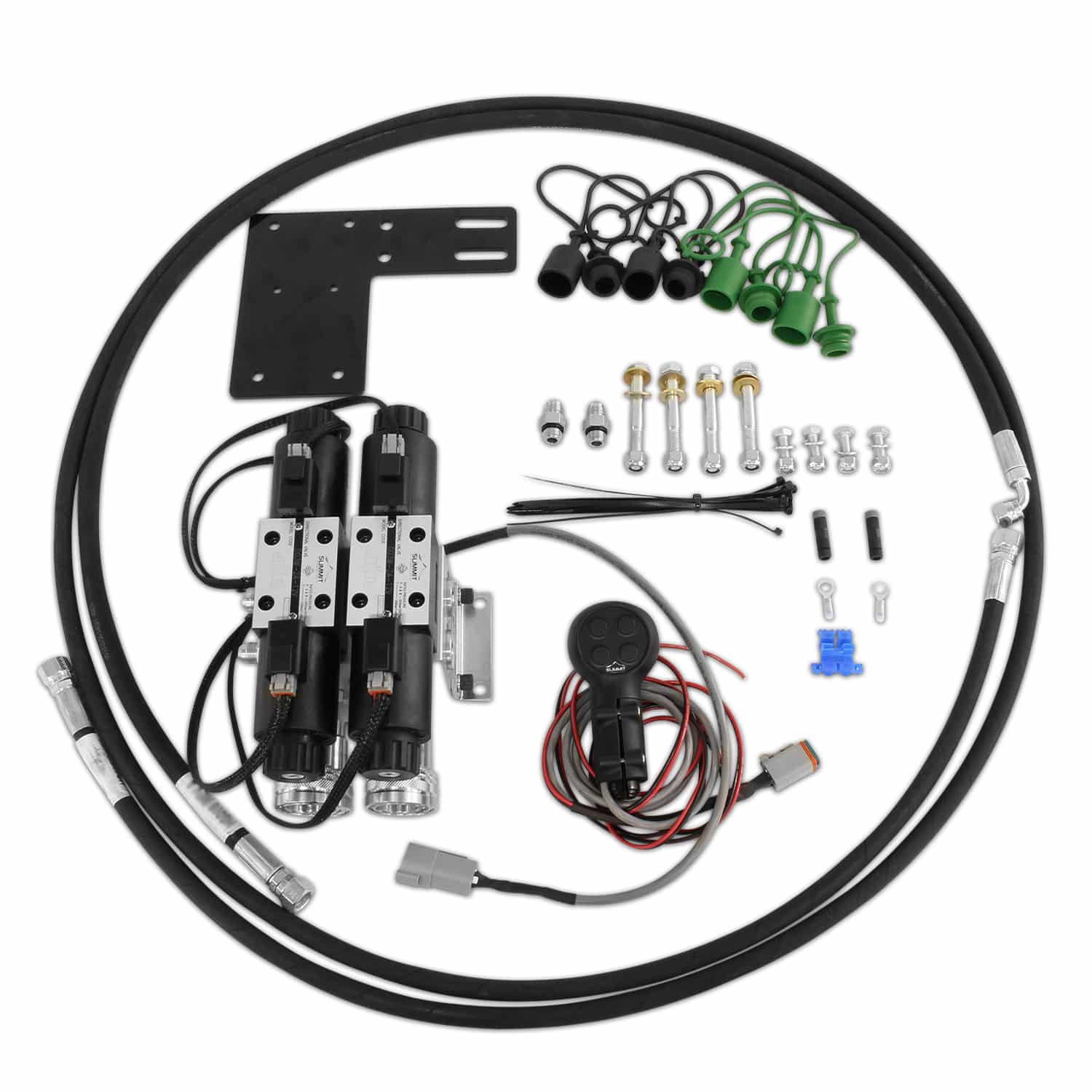

Kit Includes:

• Control valve
• Joystick (Two Button) and/or Switchbox (One, Two or Three Switch) – with mounting bracket
• Valve Harness(es)
• 1/2″ ISO 5675 Agricultural/Pioneer Style Couplers
• 3/8″ ISO 7241-A Style Couplers (w/ Backhoe)
• Quick coupler dust caps
• ROPS mounting bracket & hardware
• Hydraulic connection hoses for pressure and return lines and power beyond hookup
• Installation instructions
