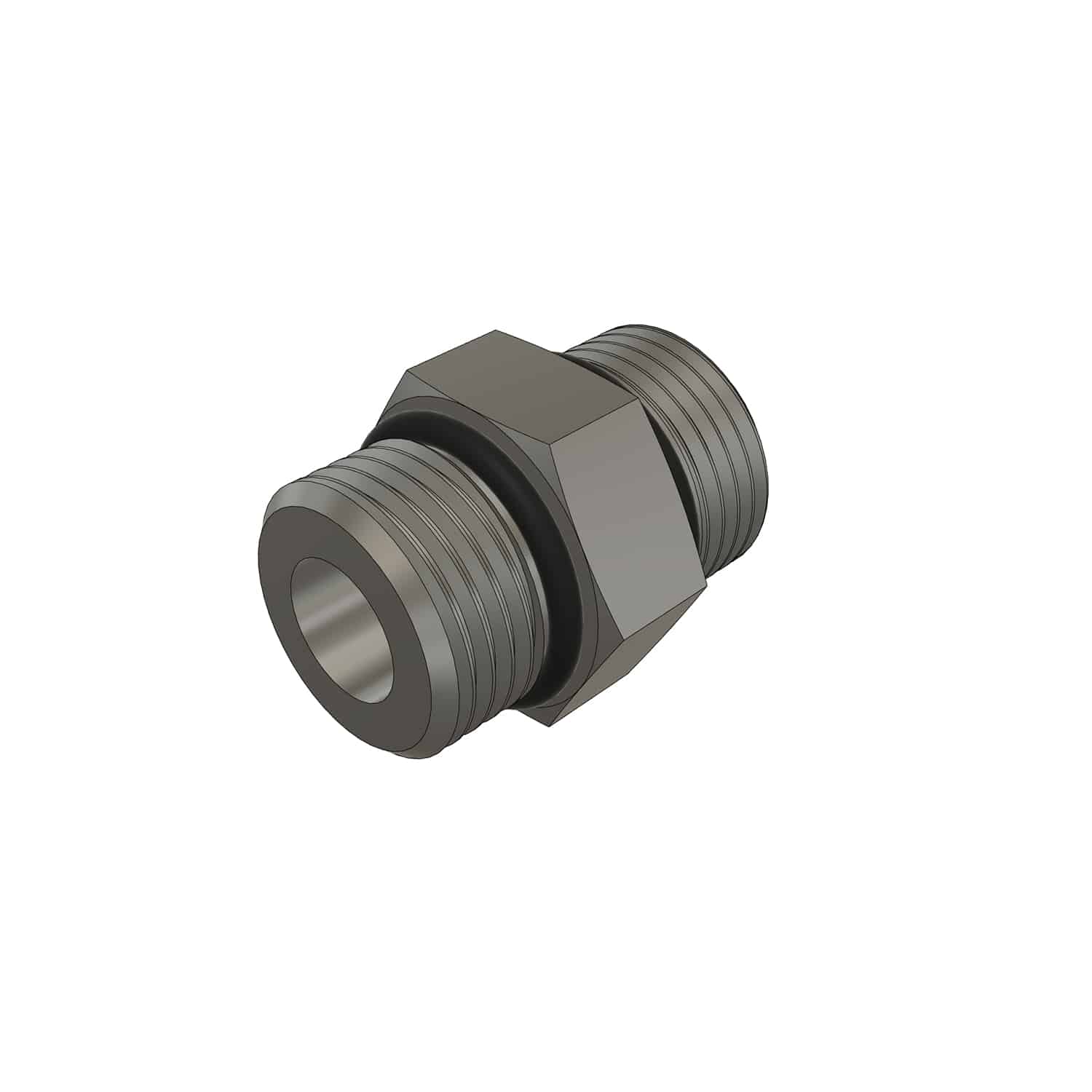

- Hydraulic Adapter Fitting
- SAE/O-Ring Boss Male to SAE/O-Ring Boss Male
| N08S-06S | Adapter, #8 SAE/ORB Male x #6 SAE/ORB Male |
| N08S-08S | Adapter, #8 SAE/ORB Male x #8 SAE/ORB Male |
| N08S-10S | Adapter, #8 SAE/ORB Male x #10 SAE/ORB Male |
| N10S-10S | Adapter, #10 SAE/ORB Male x #10 SAE/ORB Male |
SAE Straight Thread O-Ring (ORB)
| Inch size | Dash size | Thread Size | Male Thread O.D. (in) | Female thread I.D (in) | ||
| 3⁄8 | -6 | 9⁄16 – 18 | 9⁄16 | 0.56 | 17⁄32 | 0.51 |
| 1⁄2 | -8 | 3⁄4 – 16 | 3⁄4 | 0.75 | 11⁄16 | 0.69 |
| 5⁄8 | -10 | 7⁄8 – 14 | 7⁄8 | 0.88 | 13⁄16 | 0.81 |
| 3⁄4 | -12 | 1 1⁄16 – 12 | 1 1⁄16 | 1.06 | 1 | 0.98 |
| 7⁄8 | -14 | 1 3⁄16 – 12 | 1 3⁄16 | 1.19 | 1 1⁄8 | 1.1 |
| 1 | -16 | 1 5⁄16-12 | 1 5⁄16 | 1.31 | 1 1⁄4 | 1.23 |
| Weight | .2 lbs |
|---|---|
| Dimensions | 2 × 2 × 2 in |
| Size | #8 SAE/ORB Male x #6 SAE/ORB Male, #8 SAE/ORB Male x #8 SAE/ORB Male, #8 SAE/ORB Male x #10 SAE/ORB Male, #10 SAE/ORB Male x #10 SAE/ORB Male |
