SKU: B12-08N-SET
The ISO 7241 B Series of quick disconnect couplers are used on a large spectrum of hydraulic applications with strenuous quality standards such as the aerospace, automotive, electronics industries. They are also recommended for general purpose, machine tools, mobile hydraulics, and other equipment applications. Our Series B couplers are interchangeable with all ISO 7241 B series couplings.
Size: 1/2″ Body
Thread Size: 1/2″ NPT Thread, Poppet Valve
Features:
- Self Sealing Poppet Valve Seals Excellent Under High and Low Pressures
- Interchangeable with all ISO 7241 B series couplings
- 3,675 PSI Rating
- 14,500 PSI Burst Rating (Coupled)
- Nominal Flow Rate: 12 GPM
- Max Flow Rate: 23.78 GPM
- Seal Type: Nitrile Buna-N
Interchangeable with:
| Manufacturer | Male | Female |
| SUMMIT | B12M-08N | B12F-08N |
| Parker 60 Series | H4-63 | H4-62 |
| Safeway S10 Series | S101-4 | S105-4 |
| Faster HNV | HNV 12 NPT M | HNV 12 NPT F |
| Snap-Tite 72 Series | 72N8-8F | 72C8-8F |
| Stucchi IRB Series | M IRB12 NPT 800601007 |
F IRB12 NPT 800601006 |
| Dixon H-Series | H4F4 | 4HF4 |
| Eaton HK Series | 4KP26 | 4HP26 |
| DNP HNV Series | HNV-08-08-N-NPT | HNV-08-08-C-NPT |

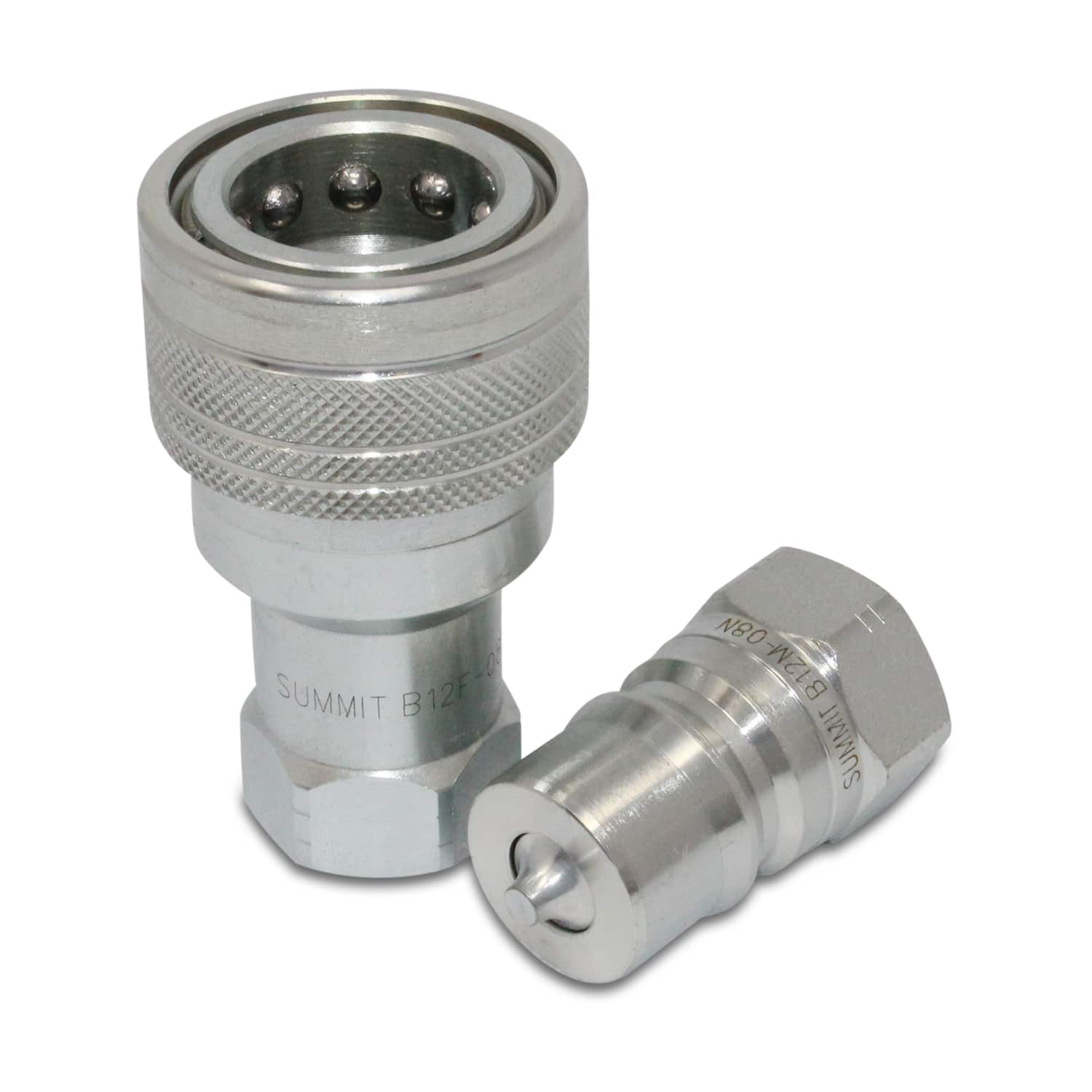

What’s Included:
- Female Coupler

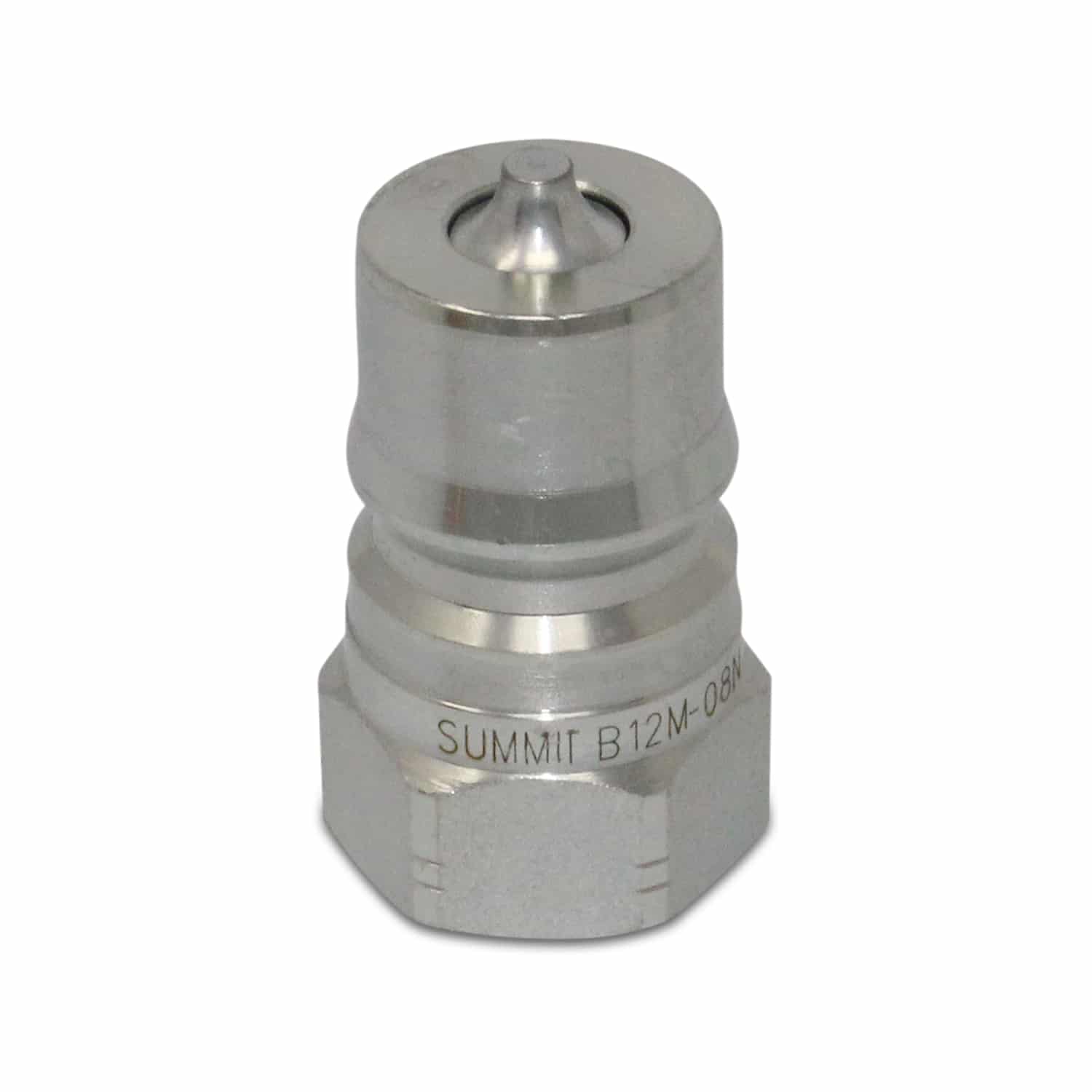

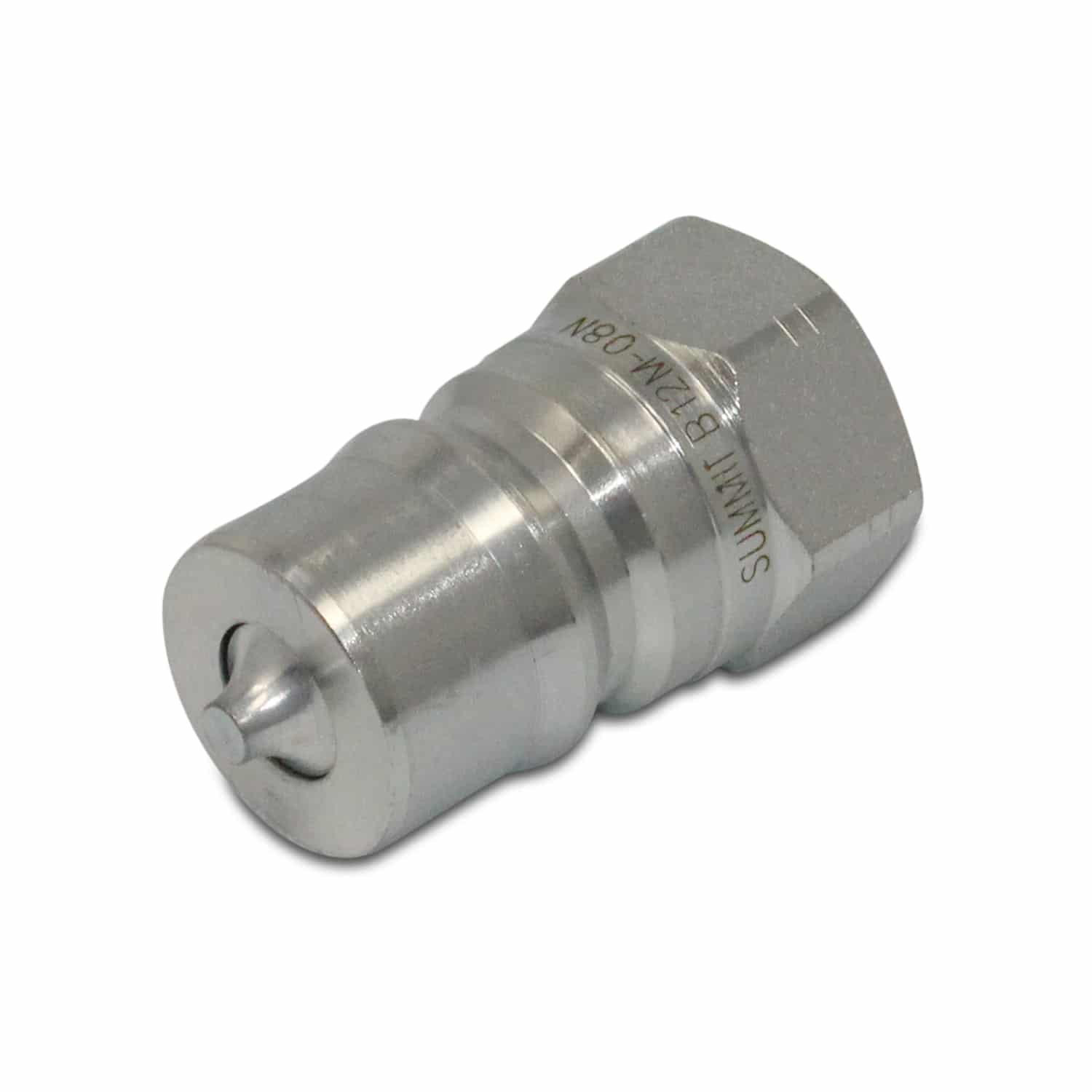

- Male Coupler
Sold Separately:
https://staging.summit-hydraulics.com/product/iso-7241-b-quick-couplers-dust-cap-set/
| Weight | 1 lbs |
|---|---|
| Dimensions | 5 × 4 × 3 in |
| Style | ISO 7241-B |
| Body Size | 1/2" |
| Thread Type | |
| Thread Size | 1/2" |
| Body Material | Hardened Steel |
| Locking Type | Sleeve |
