1/4″ ISO 7241-B Quick Disconnect Hydraulic Coupler Set, 3/8″ SAE Thread

SKU: B14-06S-SET

The ISO 7241 B Series of quick disconnect couplers are used on a large spectrum of hydraulic applications with strenuous quality standards such as the aerospace, automotive, electronics industries. They are also recommended for general purpose, machine tools, mobile hydraulics, and other equipment applications. Our Series B couplers are interchangeable with all ISO 7241 B series couplings.

Body Size: 1/4″ Body

Thread Size: 3/8″ SAE Thread, Poppet Valve

Features:

• Hardened Steel Self Sealing Poppet Valve Seals Excellent Under High and Low Pressures
• Interchangeable with all ISO 7241 B series couplings
• 3600 PSI Rating
• 14,500 PSI Burst Rating (Coupled)
• Nominal Flow Rate: 3.17 GPM
• Max Flow Rate: 6.34 GPM

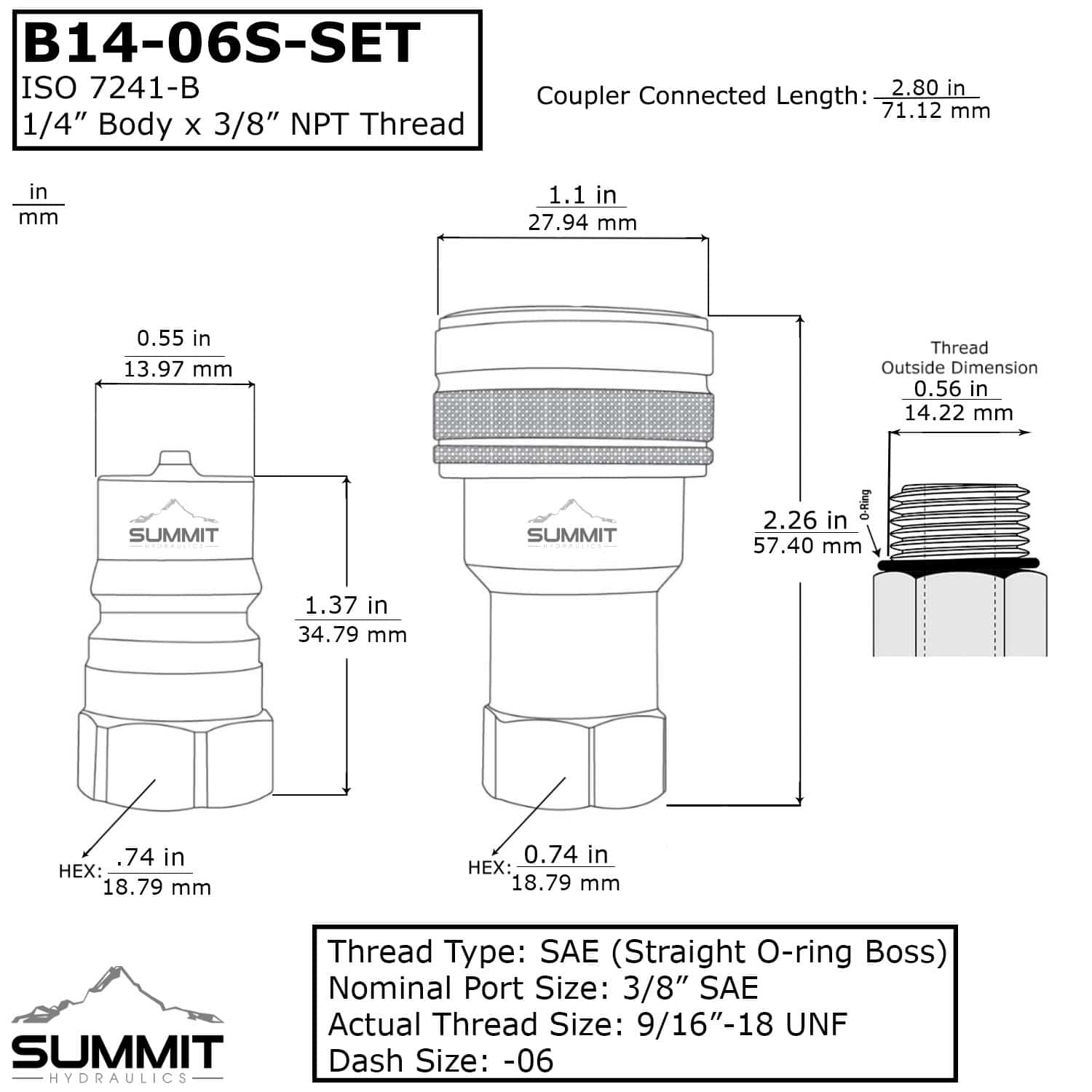

• Male Face Diameter: 0.55″ (13.97mm)
• Male Length: 1.37″ (39.79mm)
• Male Hex: 0.74″ (18.79mm)
• Female Face Diameter: 1.10″ (27.94mm)
• Female Length: 2.26″ (57.40mm)
• Female Hex: 0.74″ (18.79mm)

What’s Included:

• Female Coupler
• Male Coupler
