SKU: FF1-20N-SET

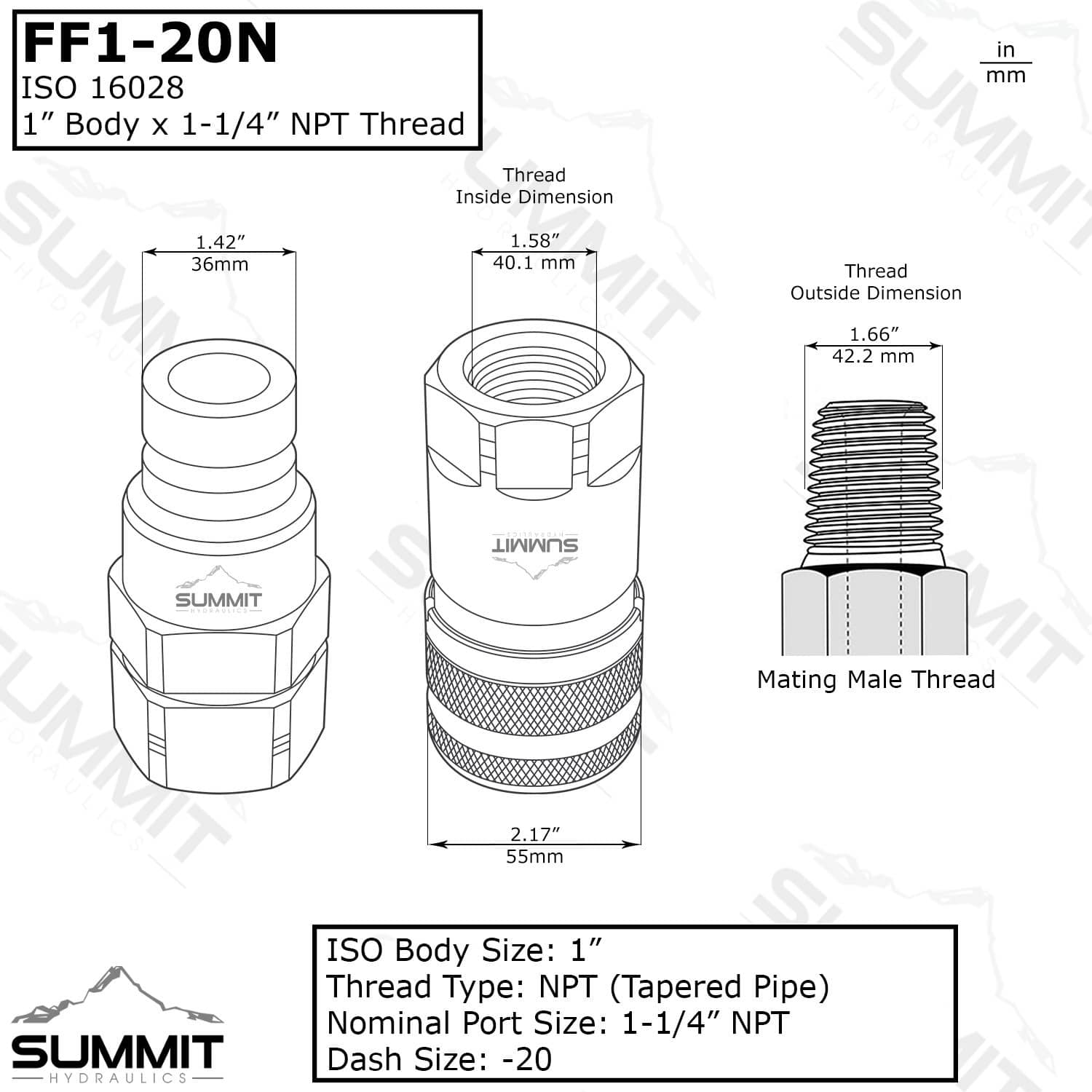

Size: 1″ Body with 1-1/4″ NPT Thread
Features:
- Heavy Duty Design with 5076 PSI Rating
- Max Flow Rate: 73.97 GPM
- Locking sleeve helps prevent accidental disconnects
- Compact profile with high flow performance
- Harden steel construction with anti-corrosive plating
- Sleeves are hardened to resist deformation and maximize life of the coupler
- Valve design that allows for a minimal pressure drops and one hand operation
- Seals are rated for operating temperatures up to 250°F
Cross Reference:
| Manufacturer | Male | Female |
| SUMMIT | FF1M-20N | FF1F-20N |
| Parker FE Series | FEM-1002-20FP | FEM-1001-20FP |
| Safeway FFE49 Series | FFE491-8-114 | FFE495-8-114 |
| Faster FFH Series | FFH16 114NPT M | FFH16 114NPT F |
| Stucchi FIRG Series | 801301015 M. A21 114 NPT |
801301016 F. A21 114 NPT |
| DNP PLT4 Series | FF-HPG-16-20N-NPT | FF-HPG-16-20C-NPT |
Kit Includes:
- 1 Female Coupler
- 1 Male Nipple
- 1 Female Dust Cap
- 1 Male Dust Cap
| Weight | 4 lbs |
|---|---|
| Dimensions | 8 × 6 × 4 in |
| Style | Flat Face |
| Body Size | 1" |
| Thread Type | |
| Thread Size | 1-1/4" |
| Body Material | Hardened Steel |
| Locking Type | Ball |
