1″ Flat Face Hydraulic Quick Connect Coupler Set, 1″ SAE Thread

SKU: FF1-16S-SET

ISO Body Size: 1”

Port Thread: 1” SAE (1-5/16” O-Ring Boss)

Benefits

• Flush face valve design minimizes fluid loss and air inclusion
• Locking sleeve to prevent accidental disconnection
• Zinc-nickel plating provides superior corrosion resistance
• Hardened steel construction with hardened sleeves
• Allows for minimal pressure drops
• Easy single-handed push-connect design
• Nipple seal resists blow-outs
• Interchangeable with other ISO 16028 standard couplings

Features

• 5,076 PSI rating
• 97 GPM Max Flow Rate
• 50 GPM Nominal Flow Rate
• Buna-N Seals with Teflon backup ring can operate up to 250° F
• Female Face Diameter: 2.17” (55mm)
• Male Face Diameter: 1.42” (36mm)
• Female Length: 4.31” (109mm)
• Male Length: 3.54” (90mm)
• Hex: 2.17” (55mm)

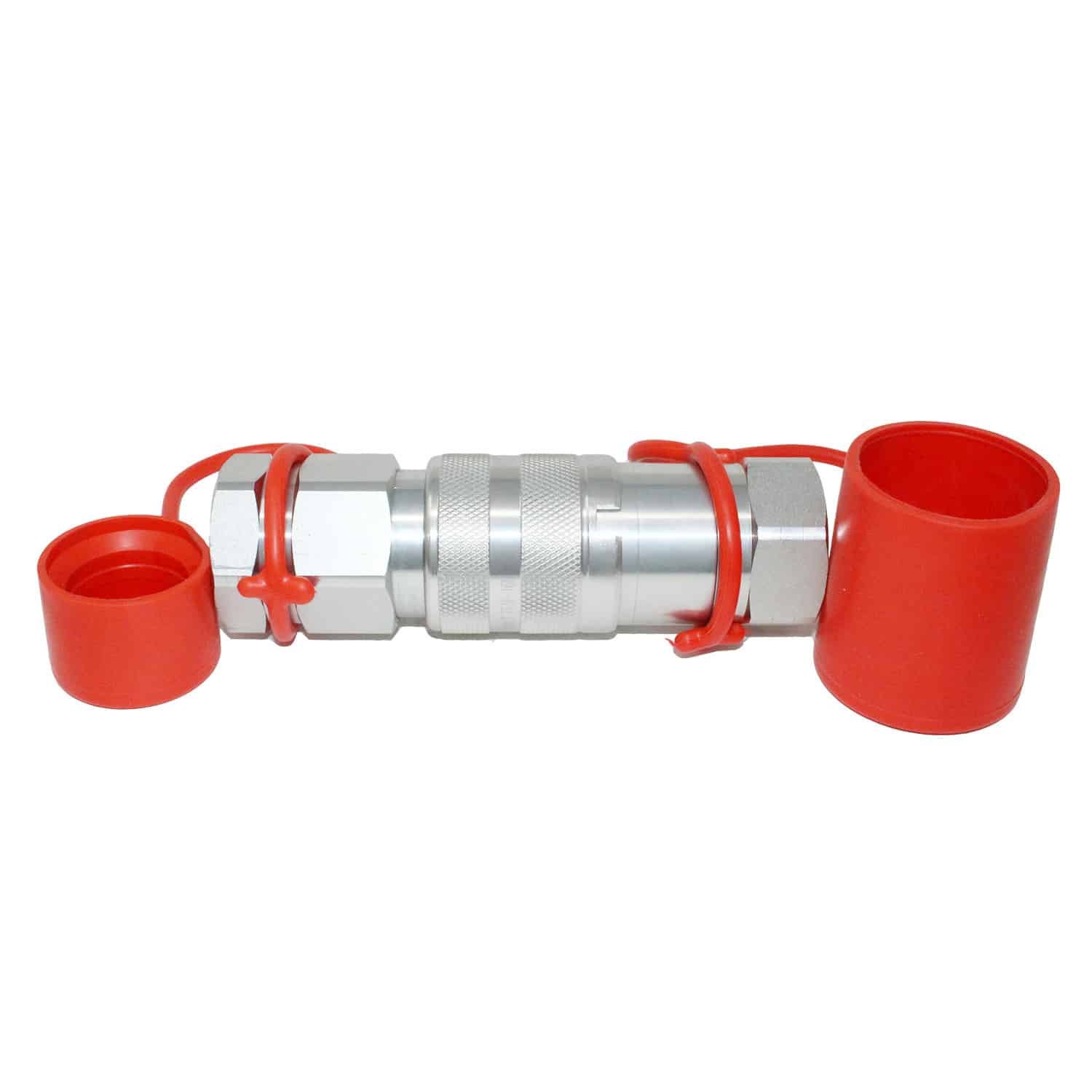

• Connected Length: 6.97” (177mm)

Cross Reference:

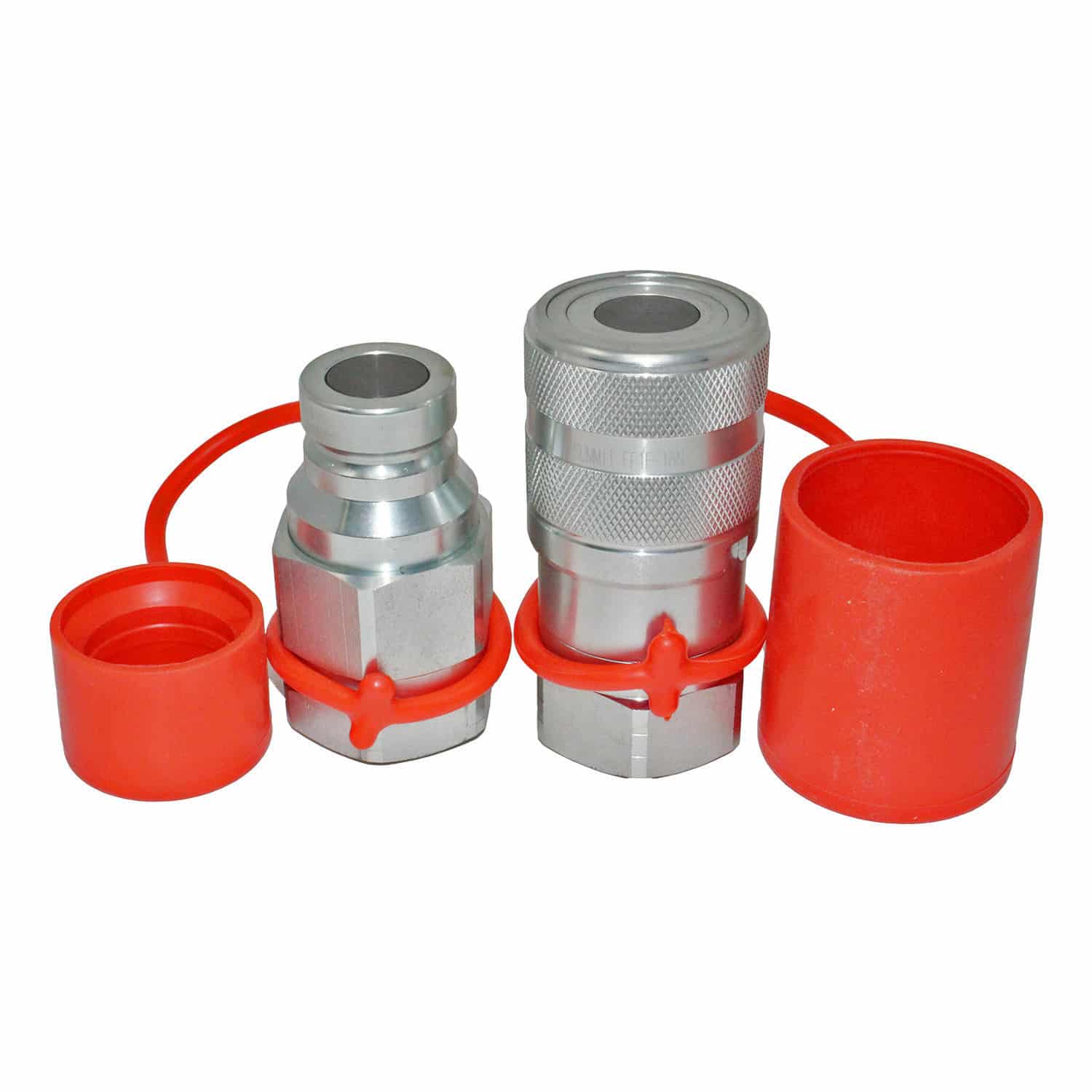

Kit Includes:

• 1 Female Coupler

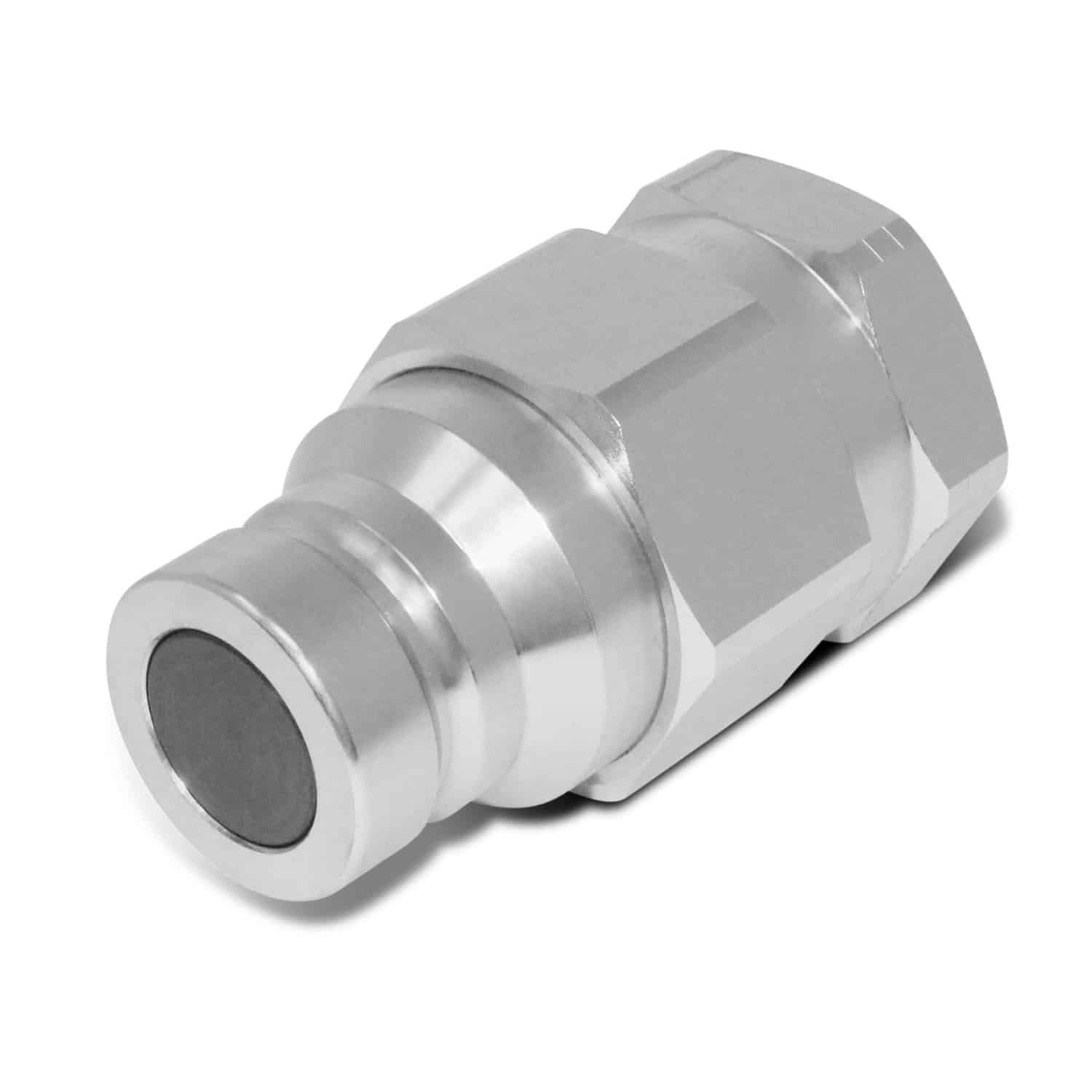

• 1 Male Nipple
• 1 Female Dust Cap
• 1 Male Dust Cap
