3/4″ Flat Face High Flow Hydraulic Quick Connect Male Coupler, 3/4″ NPT Thread

SKU: FF34M-12N

Size: 3/4″ Body with 3/4″ NPT

Benefits:

• Flush face valve design minimizes fluid loss and air inclusion
• Zinc-nickel plating provides superior corrosion resistance
• Hardened steel construction with hardened sleeves
• Allows for minimal pressure drops
• Easy single-handed push-connect design
• Nipple seal resists blow-outs
• Interchangeable with other ISO 16028 standard couplings

Features:

• 5,076 PSI rating
• 52 GPM Max Flow Rate
• 28 GPM Nominal Flow Rate
• Buna-N Seals with Teflon backup ring can operate up to 250° F

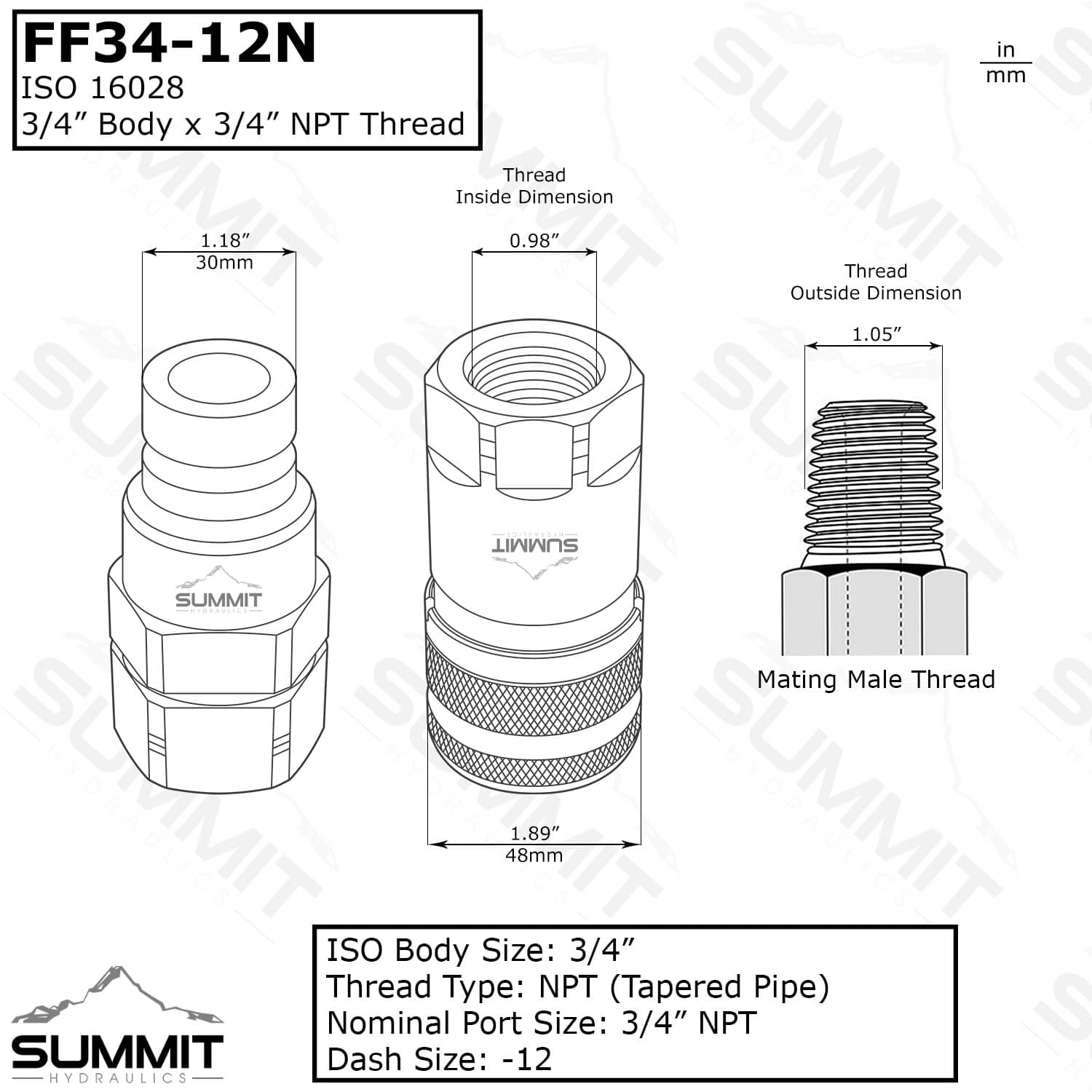

• Male Face Diameter: 1.18” (30mm)
• Male Length: 3.19” (81mm)
• Hex: 1.61” (40.89mm)

Interchangeable with:

Kit Includes:

• 1 Male Coupler
• 1 Male Dust Cap
