SKU: FF34M-16S
Size: 3/4″ Body with 1″ SAE
Benefits:
- Flush face valve design minimizes fluid loss and air inclusion
- Zinc-nickel plating provides superior corrosion resistance
- Hardened steel construction with hardened sleeves
- Allows for minimal pressure drops
- Easy single-handed push-connect design
- Nipple seal resists blow-outs
- Interchangeable with other ISO 16028 standard couplings
Features:
- 5,076 PSI rating
- 52 GPM Max Flow Rate
- 28 GPM Nominal Flow Rate
- Buna-N Seals with Teflon backup ring can operate up to 250° F

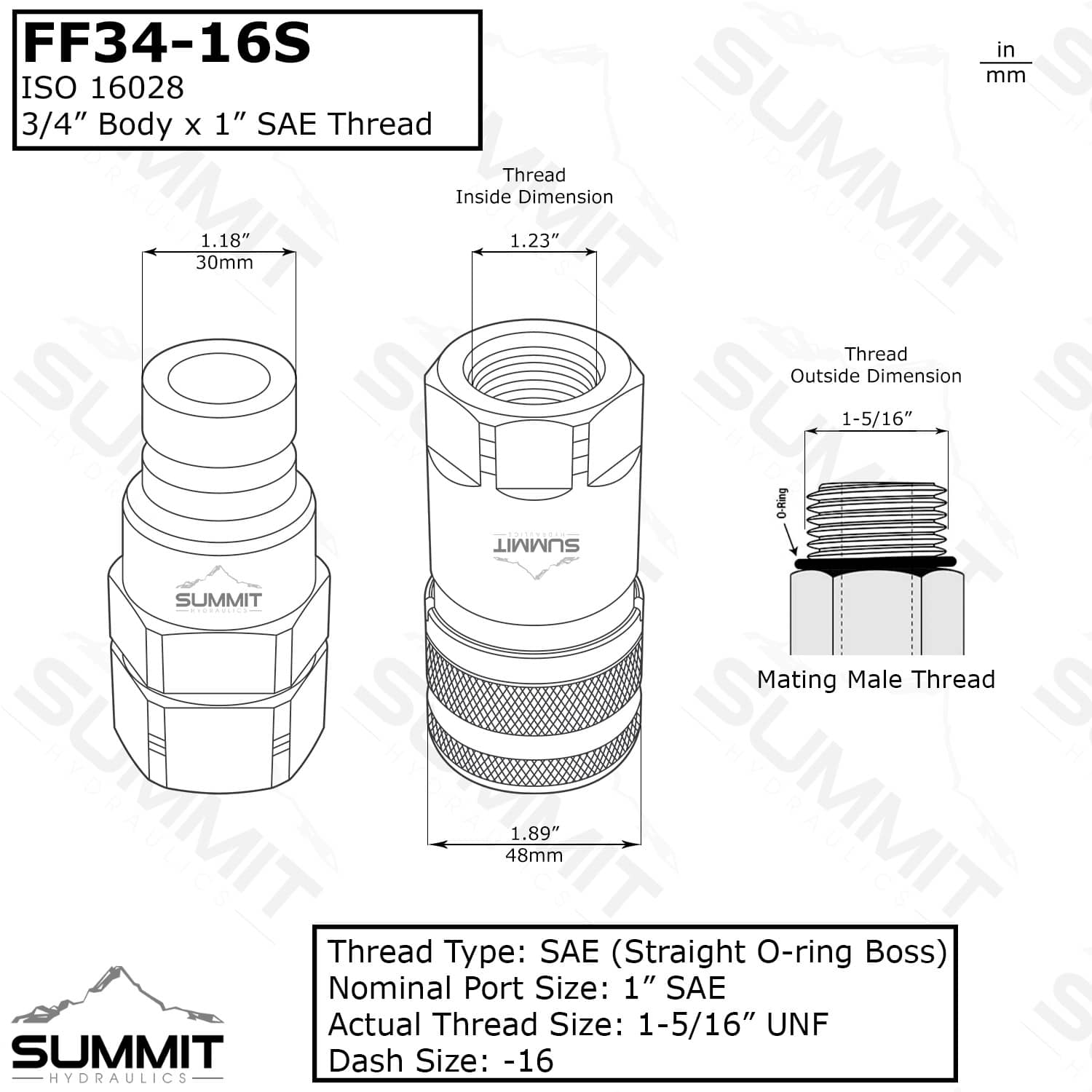

- Male Face Diameter: 1.18” (30mm)
- Male Length: 3.19” (81mm)
- Hex: 1.61” (40.89mm)
Interchangeable with:
| Manufacturer | Male |
| SUMMIT | FF34M-16S |
| Safeway FFE49 Series | FFE491-6-16 |
| Faster FFH Series | FFH12 1SAE M |
| Eaton Aeroquip FD89 | FD89-1004-16-12 |
| Snap Tite 74 Series | 74N12-16EF |
| Stucchi FIRG Series | 800804013 |
| DNP PLT4 Series | FF-HPG-12-16N-SAE |
| DNP PLT4 Series | FF-HPG-10-12N-SAE |
Kit Includes:
- 1 Male Coupler
- 1 Male Dust Cap
| Weight | 1.05 lbs |
|---|---|
| Style | Flat Face |
| Body Size | 3/4" |
| Thread Type | |
| Thread Size | 1" |
| Body Material | Hardened Steel |
| Locking Type | Ball |
