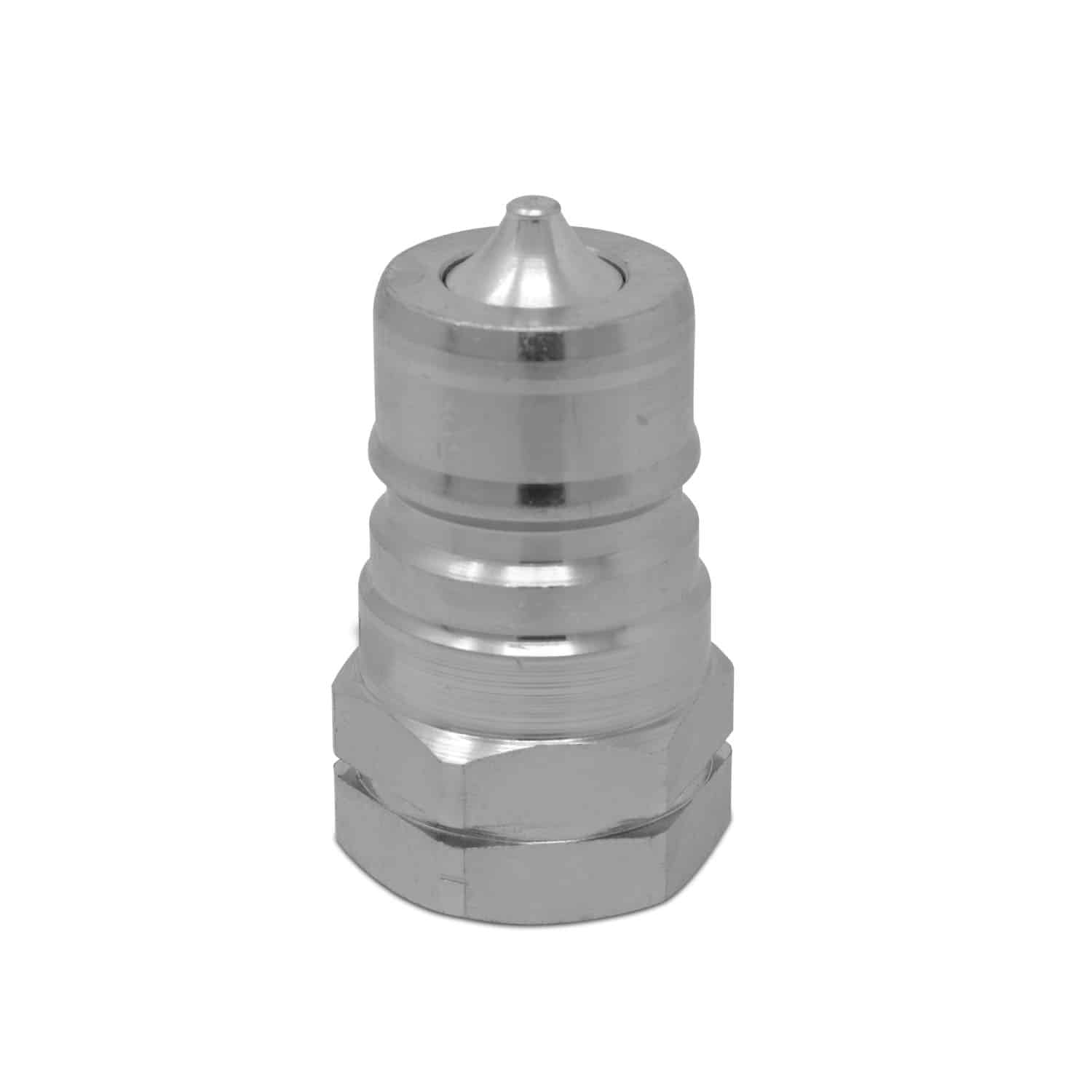

3/4″ NPT ISO 7241-A Quick Disconnect Hydraulic Male Coupler

SKU: A34M-12N

The ISO 7241 A Series of quick disconnect couplers are used on a large spectrum of hydraulic applications with strenuous quality standards such as the aerospace, automotive, electronics industries. They are also recommended for general purpose, machine tools, mobile hydraulics, and other equipment applications. Our Series A couplers are interchangeable with all ISO 7241 A series couplings.

Size: 3/4″ Body, 3/4″ NPT Thread, Poppet Valve

This 3/4″ male coupler connects to its female equivalent. We also carry a complete set, including a single male and single female coupler.

Benefits:

• Hardened Steel Self Sealing Poppet Valve Seals Excellent Under High and Low Pressures
• Interchangeable with all ISO 7241 A series couplings
• Radial Locking Balls
• Manual Connect and Disconnect
• Seal Type: Nitrile Buna-N

Features:

• Nominal Flow Rate: 6.5 GPM
• Max Flow Rate: 12.15 GPM
• Max Working (PSI): 4410 psi
• Male Face Diameter 1.770” (45mm)
• Male Length: 2.244” (57mm)
• Hex: 1.341” (34mm)

Interchangeable with:

What’s Included:

• Male Coupler
