SKU: AG38-06N-SET
This series of couplers are the most common quick connect couplers used in the agriculture, construction and logging industries. They are interchangeable with all ISO 5675 series including ball seat valve, poppet seal, push-pull couplings.
ISO Body Size: 3/8”
Port Thread: 3/8” NPT

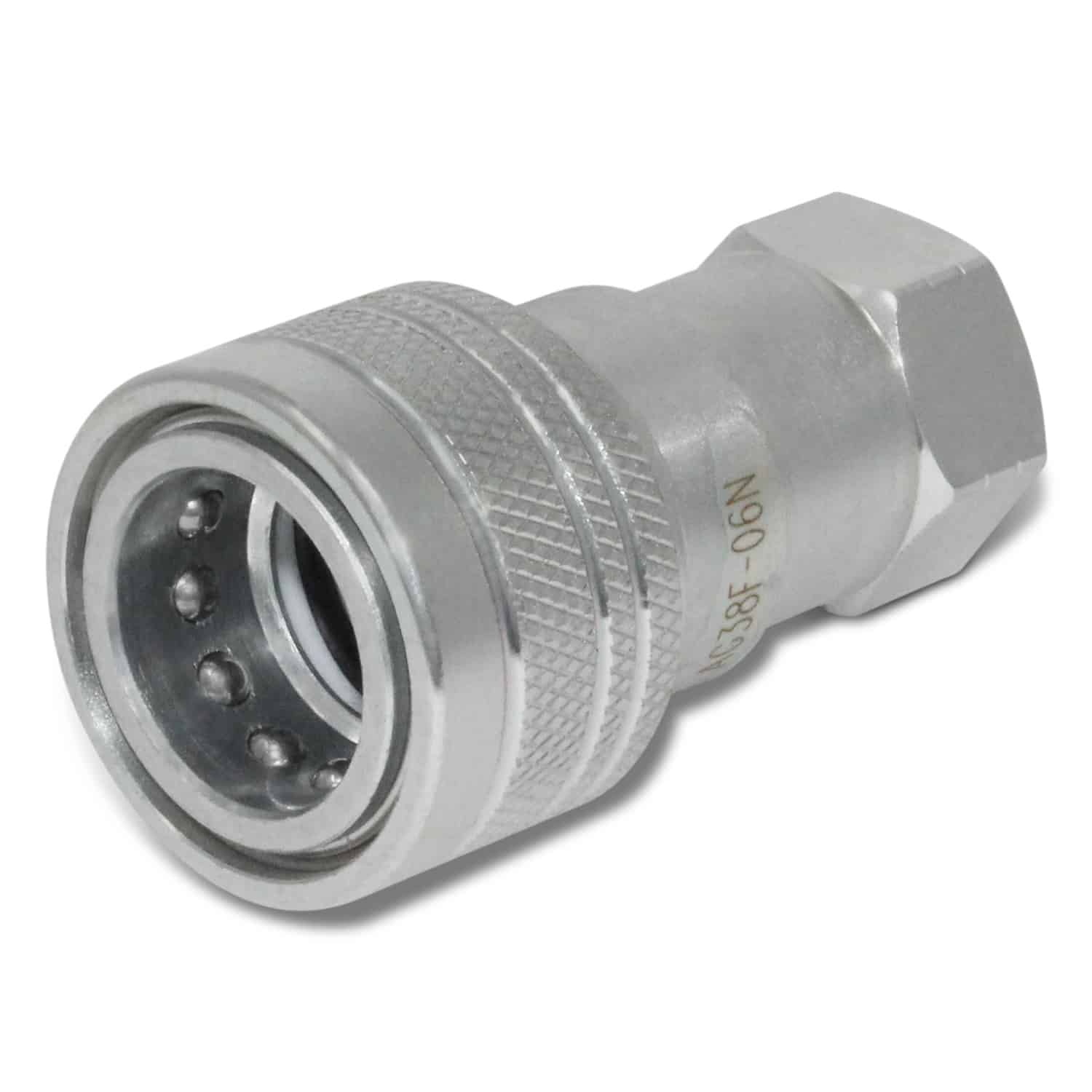

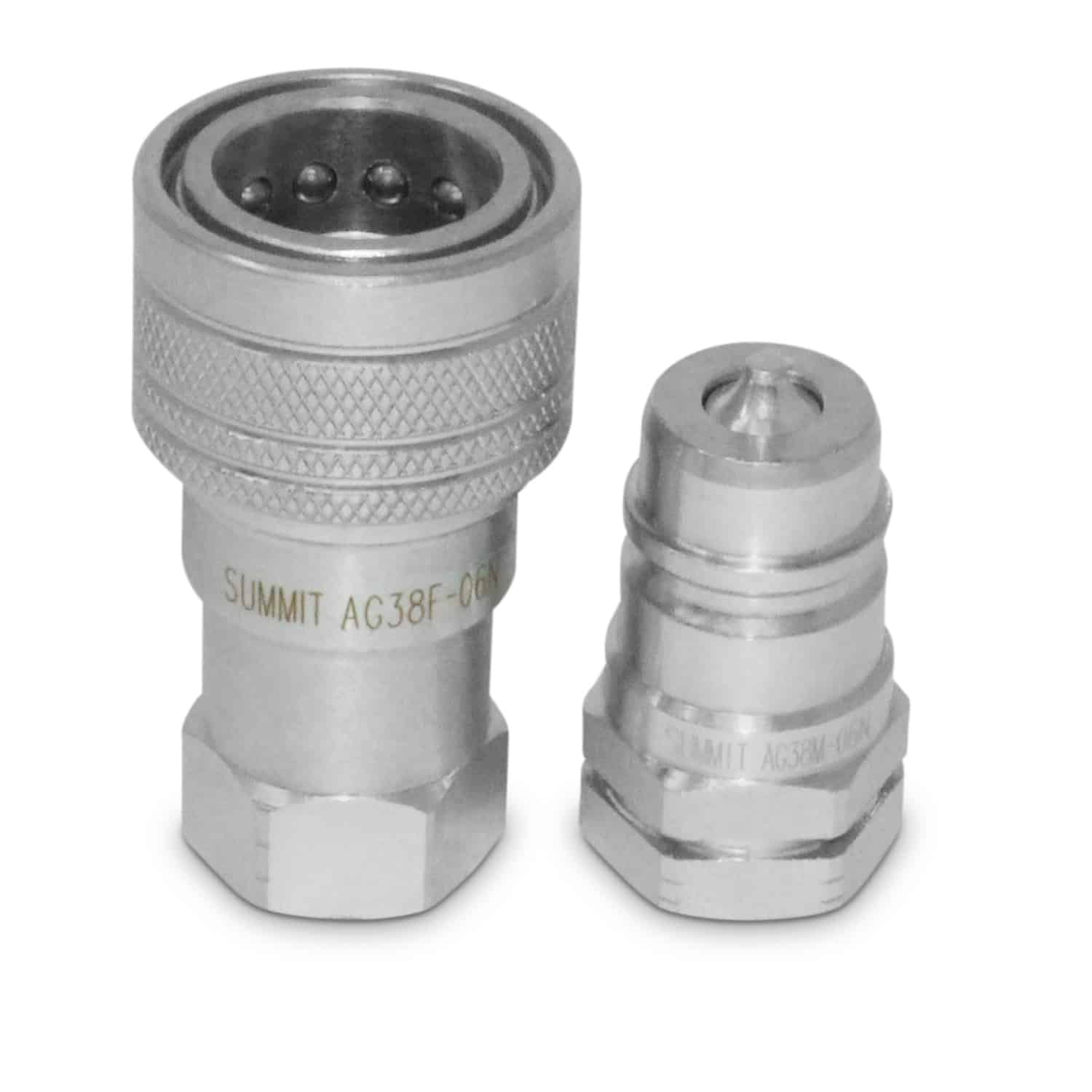

This 3/8″ coupler set consists of a male and female quick coupler.
Features:
- 4,400 PSI Rating
- 12.15 GPM Max Flow
- Hardened Steel Plugs
- Buna-N Seals with Teflon backup ring can operate up to 250° F
- Poppet Valve
- Female Length: 2.38”
- Male Length: 1.673”
- Coupled Length: 3.346”
- Hex: 0.868”
Interchangeable with:
| Manufacturer | Male | Female |
| SUMMIT | AG38M-06N | AG38F-06N |
| Parker 4000 Series | 4010-3P | 4050-3P |
| Safeway S20 Series | S41-3P | S25-3P |
| Faster NV/NS Series | NV 38 NPT M | NV 38 NPT F |
| Snap-Tite 60/ 21 | 60C6-6M | 60C6-6F |
| Stucchi IRV Series | 800101003 M IR38V NPT |
800101002 F IR38V NPT |
| Dixon AG Series | AG3F3-PV | 3AGF3-PV |

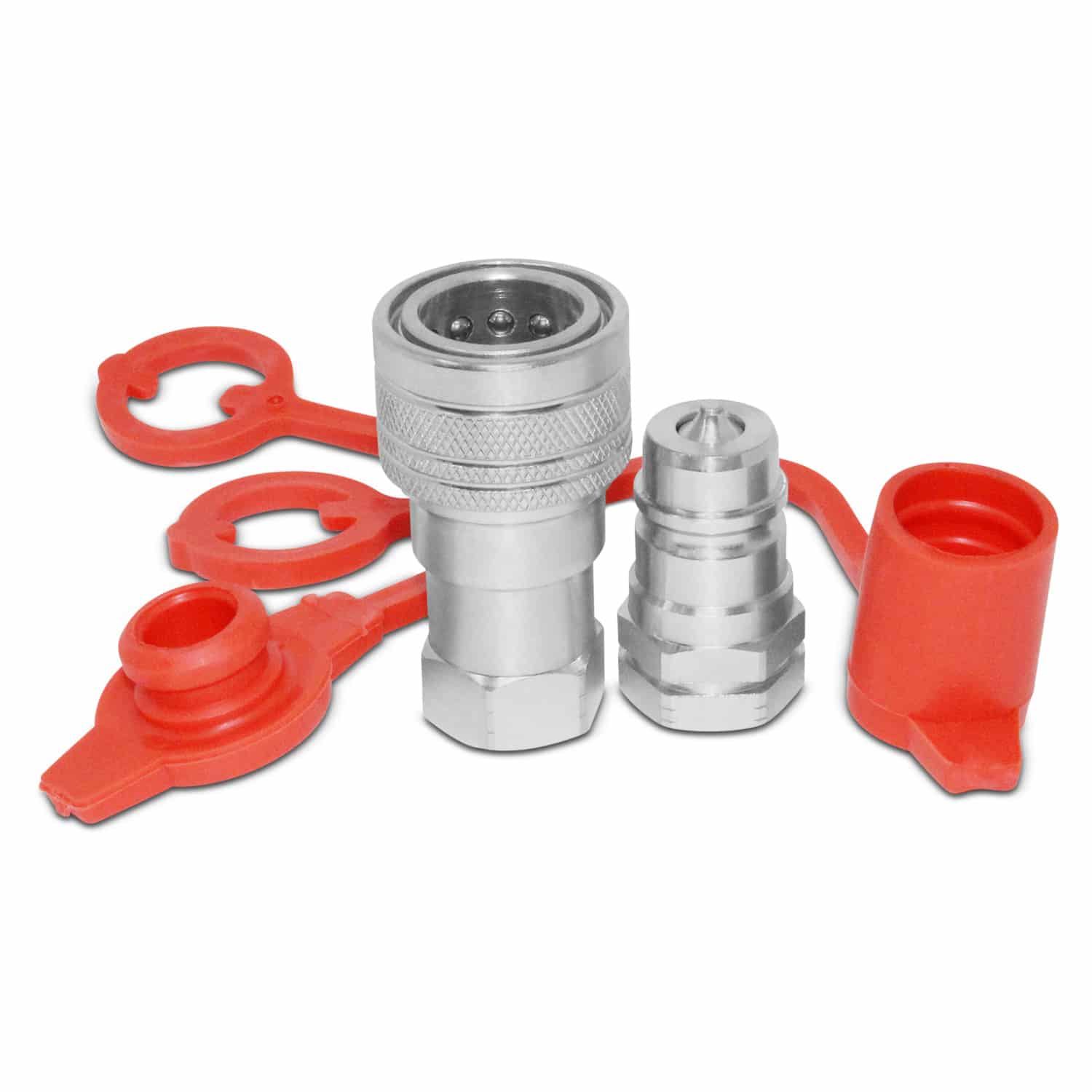

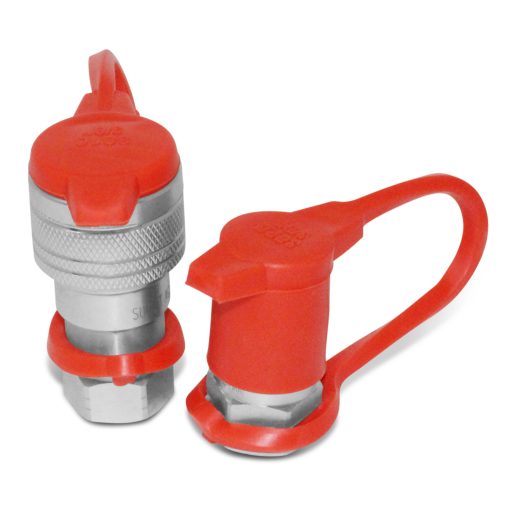

Included:
- 1 – Male Couplers
- 1 – Female Couplers
- 1 – Male Dust Caps
- 1 – Female Dust Caps
| Weight | 1 lbs |
|---|---|
| Dimensions | 7 × 5 × 3 in |
| ISO Standard | |
| Style | Agricultural |
| ISO Body Size | |
| Body Size | 3/8" |
| Thread Type | |
| Thread Size | 3/8" |
| Body Material | Hardened Steel |
| Locking Type | Sleeve |
| Coupling |
