SKU: BSS34-12N-SET
Size: 3/4″ Body, 3/4″ NPT Thread, Poppet Valve
Features:
- Body Material: 316 or 304 Stainless Steel
- Spring Material: 304 Stainless Steel
- Locking Ball Material: 316 or 304 Stainless Steel
- 316 Stainless Steel Body is highly resistant to corrosion
- Self Sealing Poppet Valve Seals Excellent Under High and Low Pressures
- Interchangeable with all ISO 7241 B series couplings
- 3,000 PSI Rating
- Nominal Flow Rate: 28 GPM
- Max Flow Rate: 58.12 GPM
- Seal Type: Viton FKM
- Temperature Range: -15°F to +400°F
- Female Face Diameter 2.05” (44mm)
- Female Length: 3.54” (90mm)
- Hex: 1.34” (27mm)
- Male Face Diameter 1.24” (31.5mm)
- Male Length: 2.28” (58mm)
Applications:
- Ideal for harsh environments such as offshore oil and gas markets
- Water Applications
- Chemical Applications
- Food Grade
- Hydraulic
304 Variant Interchangeable with:
| Manufacturer | Male | Female |
| SUMMIT | BSS34M-12N | BSS34F-12N |
| Parker 60 Series | SSH6-63Y | SSH6-62Y |
| Safeway SS10 Series | SS101-6 | SS105-6 |
| Faster HNV Stainless Steel | HNV 34 NPT M 2V | HNV 34 NPT F 2V |
| Snap-Tite 72 Series | SS72N12-12F | SS72C12-12F |
| Stucchi IRBX Series | M IRBX34 NPT 804601109 |
F IRBX34 NPT 804601108 |
| Dixon H-Series | H6F6-SS | 6HF6-SS |
| Eaton HK Series | LL6KP31 | LL6HP31 |
| DNP HNV Series | HNV-SS316-12-12-N-NPT | HNV-SS316-12-12-C-NPT |

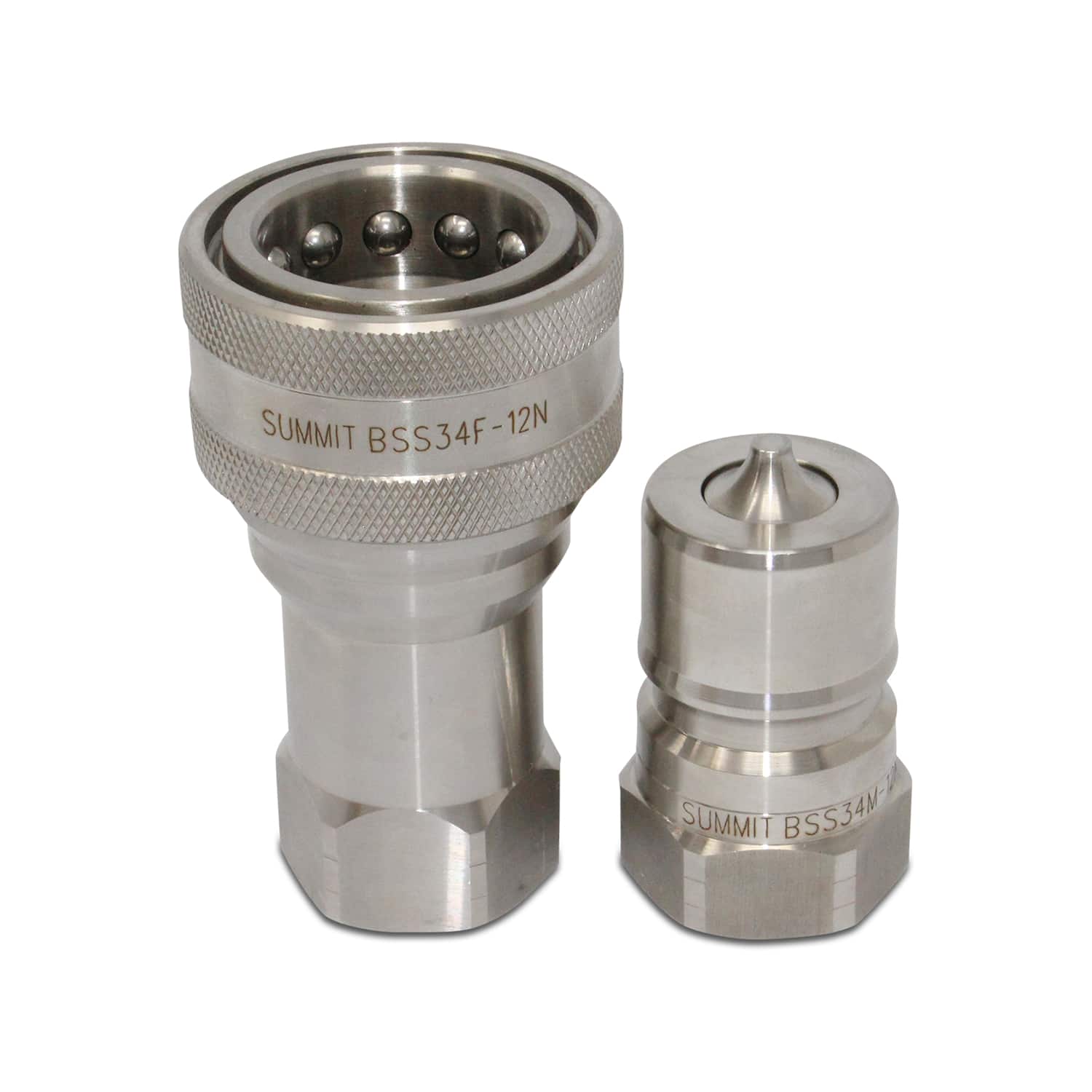

What’s Included:
- Female Coupler
- Male Coupler
https://staging.summit-hydraulics.com/product/iso-7241-b-quick-couplers-dust-cap-set/
| Weight | 6 lbs |
|---|---|
| Dimensions | 5 × 4 × 4 in |
| Style | ISO 7241-B |
| Body Size | 3/4" |
| Thread Type | |
| Thread Size | 3/4" |
| Body Material | Stainless Steel |
| Locking Type | Sleeve |
| Stainless Steel Type | 316, 304 |
