SKU: 4100M-12N
Summit 3/4″ Wet-Line / Wing Nut Couplers are designed for industrial applications that require couplings to be connected and disconnected under pressure with little to no fluid loss. Wet-line couplers are commonly used on live bed / dump trailer wet-line hydraulic systems and other heavy duty applications.
Applications:
- Dump Trailers
- Live Bed Trailers
- Mobile Drilling Rigs
- Sand and salt spreaders
- Oil Well Equipment
- Heavy Equipment

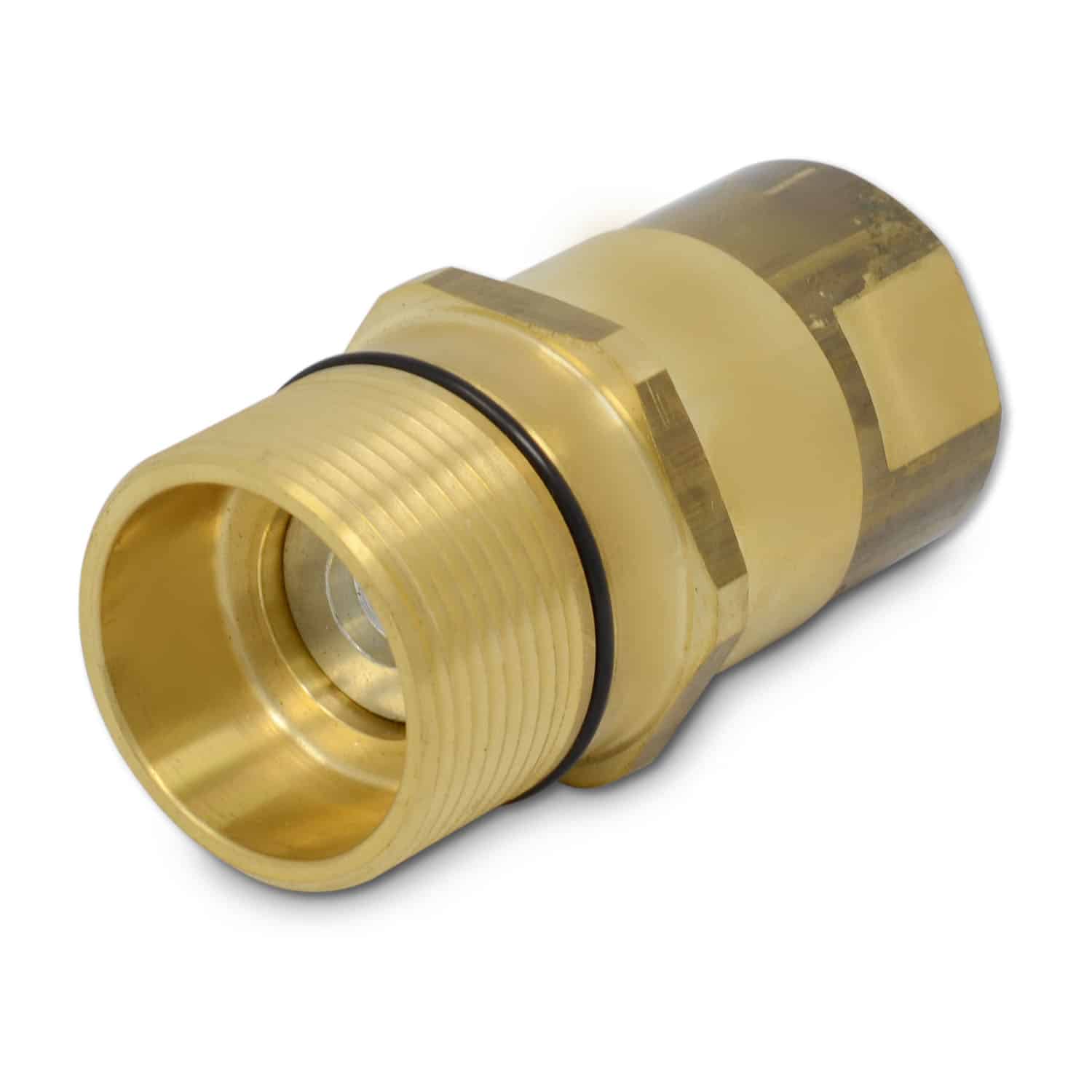

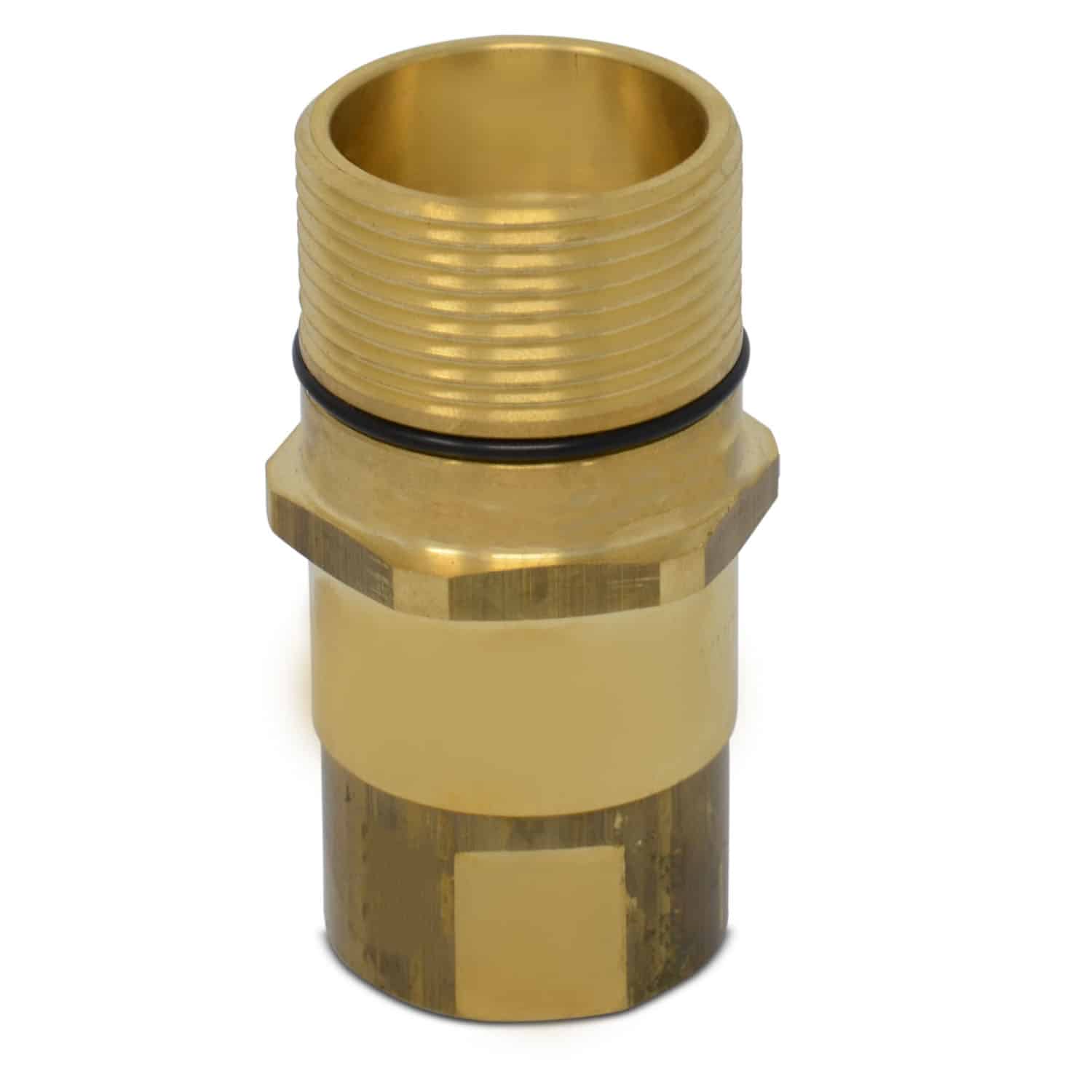

This 3/4″ male coupler connects to its female equivalent. We also carry a complete set, including a single male and single female coupler.
Features:
- Brass body coupler and nipple prevents corrosion
- Heavy-duty steel sleeve and wing nut
- Nitrile seal with Teflon backup
- 3000 PSI working pressure rating
- 3/4″ NPT Female Pipe Thread
- Nominal Flow Rate: 35 GPM
Interchangeable with:
| Male | Female |
| 4100M-12N | 4100F-12N |
| 6105-12 | 6125-12 |
| 5100-S4-12B | 5100-S5-12B |
| W6F6-B | 6WF6-B |
| FB 12/34 NPT M5 | FB 12/34 NPT F5 |
| B78N12-12F | B78C12-12F |
| 100610112 N51WS-12-12 NPT |
100610012 C51WS-12-12 NPT |
| VFF-12-12-N-NPT | VFF-12-12-C-NPT |
What’s Included:
- Male Wet Line Coupler
| Weight | 0.91 lbs |
|---|---|
| Style | Wet Line |
| Body Size | 3/4" |
| Thread Type | |
| Thread Size | 3/4" |
| Body Material | Brass |
| Locking Type | Screw |
