SKU: FF12M-12N
ISO Body Size: 1/2”
Port Thread: 3/4” NPT
Benefits
- Flush face valve design minimizes fluid loss and air inclusion
- Zinc-nickel plating provides superior corrosion resistance
- Hardened steel construction
- Allows for minimal pressure drops
- Easy single-handed push-connect design
- Nipple seal resists blow-outs
- Interchangeable with other ISO 16028 standard couplings
Features
- 5,076 PSI rating
- 23.78 GPM Max Flow Rate
- 12 GPM Nominal Flow Rate
- Buna-N Seals with Teflon backup ring can operate up to 250° F
- Face Diameter: 0.94″ (24.5mm)
- Length: 2.87” (73mm)
- Hex: 1.42” (36mm)
Cross Reference
| Manufacturer | Male |
| SUMMIT | FF12M-12N |
| Parker FE Series | FEM-502-12FP |
| Safeway FFE49 Series | FFE491-6 |
| Faster FFH Series | FFH08 34NPT M |
| Eaton Aeroquip FD89 | FD89-1002-12-08 |
| Snap Tite 74 Series | 74N8-12F |
| Stucchi FIRG Series | 800801009 |
| Dixon HT Series | HT4F6 |
| DNP PLT4 Series | FF-HPG-08-12N-NPT |
| Tomco FE Series | EP4-31 |
| Weight | 0.7 lbs |
|---|---|
| Dimensions | 6 × 3 × 3 in |
| ISO Standard | |
| Style | Flat Face |
| ISO Body Size | |
| Body Size | 1/2" |
| Thread Type | |
| Thread Size | 3/4" |
| Body Material | Hardened Steel |
| Locking Type | Ball |
| Coupling |

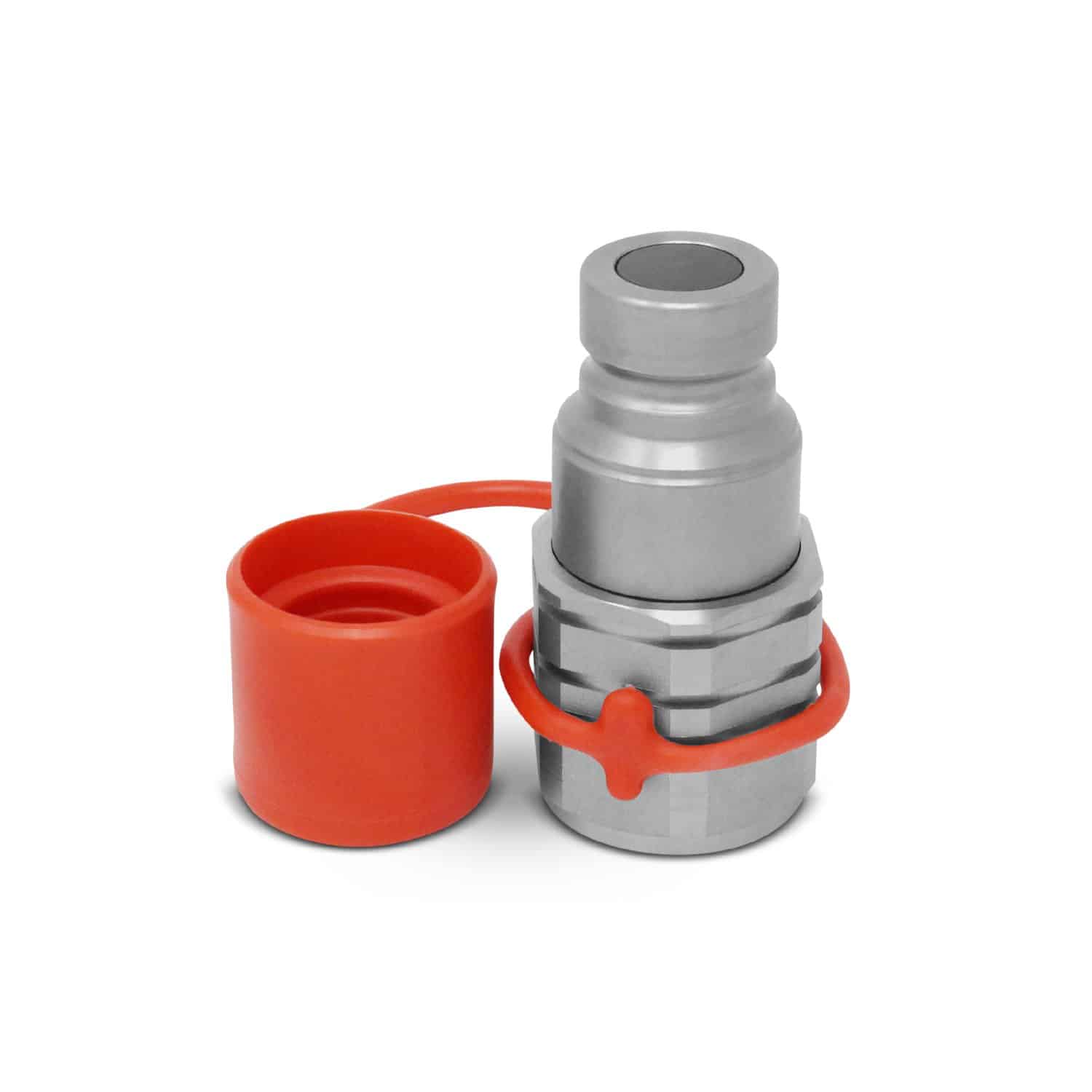

Be the first to review “Flat Face Hydraulic Quick Connect Male Coupler, 3/4″ NPT Thread”
