SKU: FF34-16S-SET

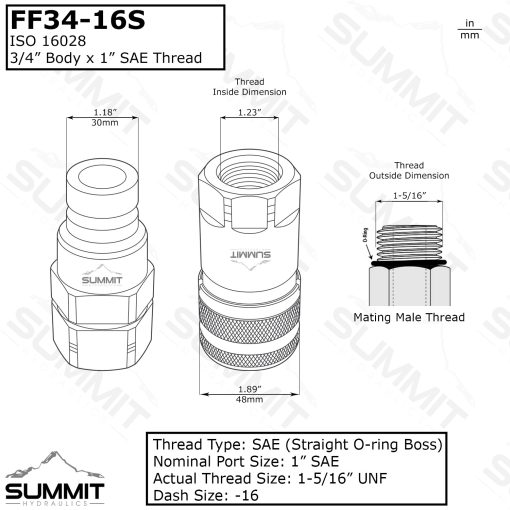

Size: 3/4″ Body with 1″ SAE (1 15/16-12 UNF female ORB) Thread, also know as Dash -16
Features:
- Heavy Duty Design with 5076 PSI Rating
- Max Flow Rate: 52 GPM
- Locking sleeve helps prevent accidental disconnects
- Compact profile with high flow performance
- Harden steel construction with anti-corrosive plating
- Sleeves are hardened to resist deformation and maximize life of the coupler
- Valve design that allows for a minimal pressure drops and one hand operation
- Seals are rated for operating temperatures up to 250°F
Interchangeable with:
| Manufacturer | Male | Female |
| SUMMIT | FF34M-16S | FF34F-16S |
| Safeway FFE49 Series | FFE491-6-16 | FFE495-6-16 |
| Faster FFH Series | FFH12 1SAE M | FFH12 1SAE F |
| Eaton Aeroquip FD89 | FD89-1004-16-12 | FD89-1005-16-12 |
| Snap Tite 74 Series | 74N12-16EF | 74C12-16EF |
| Stucchi FIRG Series | 800804013 | 800804012 |
| DNP PLT4 Series | FF-HPG-12-16N-SAE | FF-HPG-12-16C-SAE |
| Weight | 6 lbs |
|---|---|
| Dimensions | 6 × 5 × 4 in |
| ISO Standard | |
| Style | Flat Face |
| ISO Body Size | |
| Body Size | 3/4" |
| Thread Type | |
| Thread Size | 1" |
| Body Material | Hardened Steel |
| Locking Type | Ball |
| Coupling |
