SKU: BB38-06N-SET
Size: 3/8″ Body, 3/8″ NPT Thread, Poppet Valve
Features:
- Body Material: Brass material for corrosion resistance
- Spring Material: 304 Stainless Steel
- Locking Ball Material: 316 Stainless Steel
- Self Sealing Poppet Valve Seals Excellent Under High and Low Pressures
- Interchangeable with all ISO 7241 B series couplings
- 3,000 PSI Rating
- Nominal Flow Rate: 6.08 GPM
- Max Flow Rate: 12.15 GPM
- Seal Type: Viton FKM
- Temperature Range: -15°F to +400°F

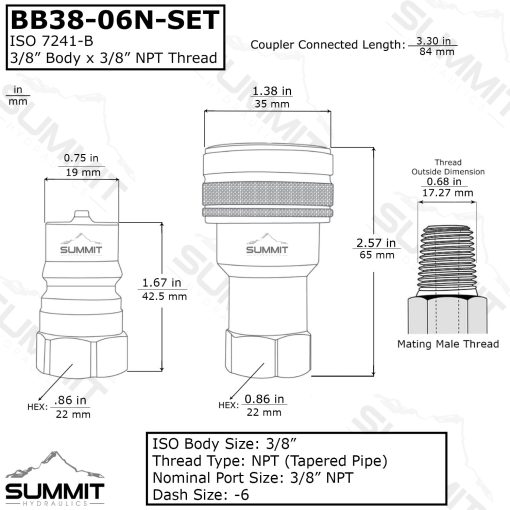

- Female Face Diameter 1.38” (35mm)
- Female Length: 2.57” (65mm)
- Hex: .86” (22mm)
- Male Face Diameter 0.75” (19mm)
- Male Length: 1.67” (42.5mm)
Applications:
- Hydraulic fluids
- Water
- Diesel / Petroleum
Interchangeable with:
| Manufacturer | Male | Female |
| SUMMIT | BB38M-06N | BB38F-06N |
| Parker 60 Series | BH3-61 | BH3-60 |
| Safeway BS10 Series | BS101-3 | BS105-3 |
| Faster HNV Brass | HNV 38 NPT M 5V | HNV 38 NPT F 5V |
| Snap-Tite 72 Series | B72N6-6F | B72C6-6F |
| Stucchi IRBO Series | M IRBO38 NPT 804501105 |
F IRBO38 NPT 804501104 |
| Dixon H-Series | H3F3-B | 3HF3-B |
| Eaton HK Series | B3K21 | B3H21 |
| DNP HNV Series | HNV-B-06-06-N-NPT | HNV-B-06-06-C-NPT |

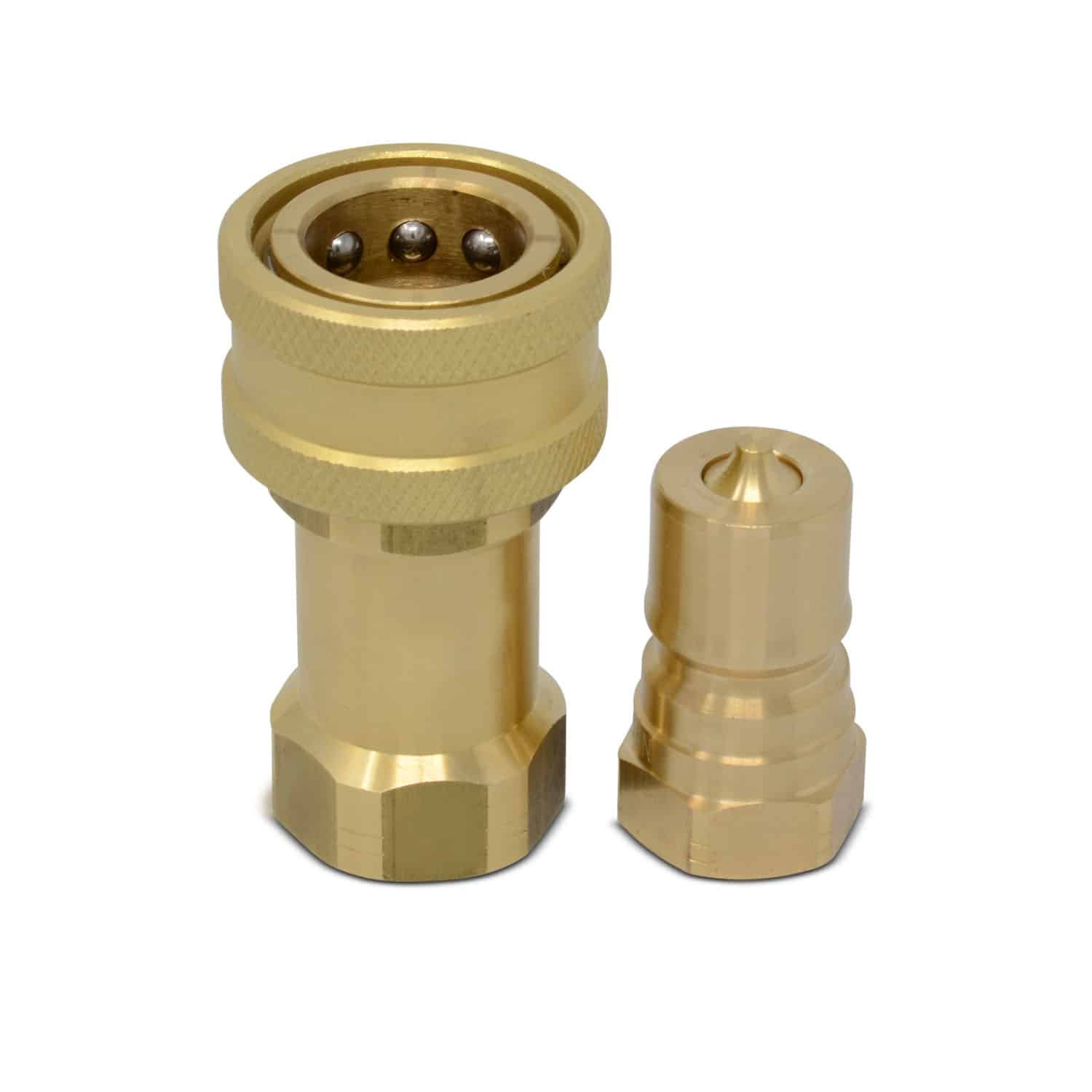

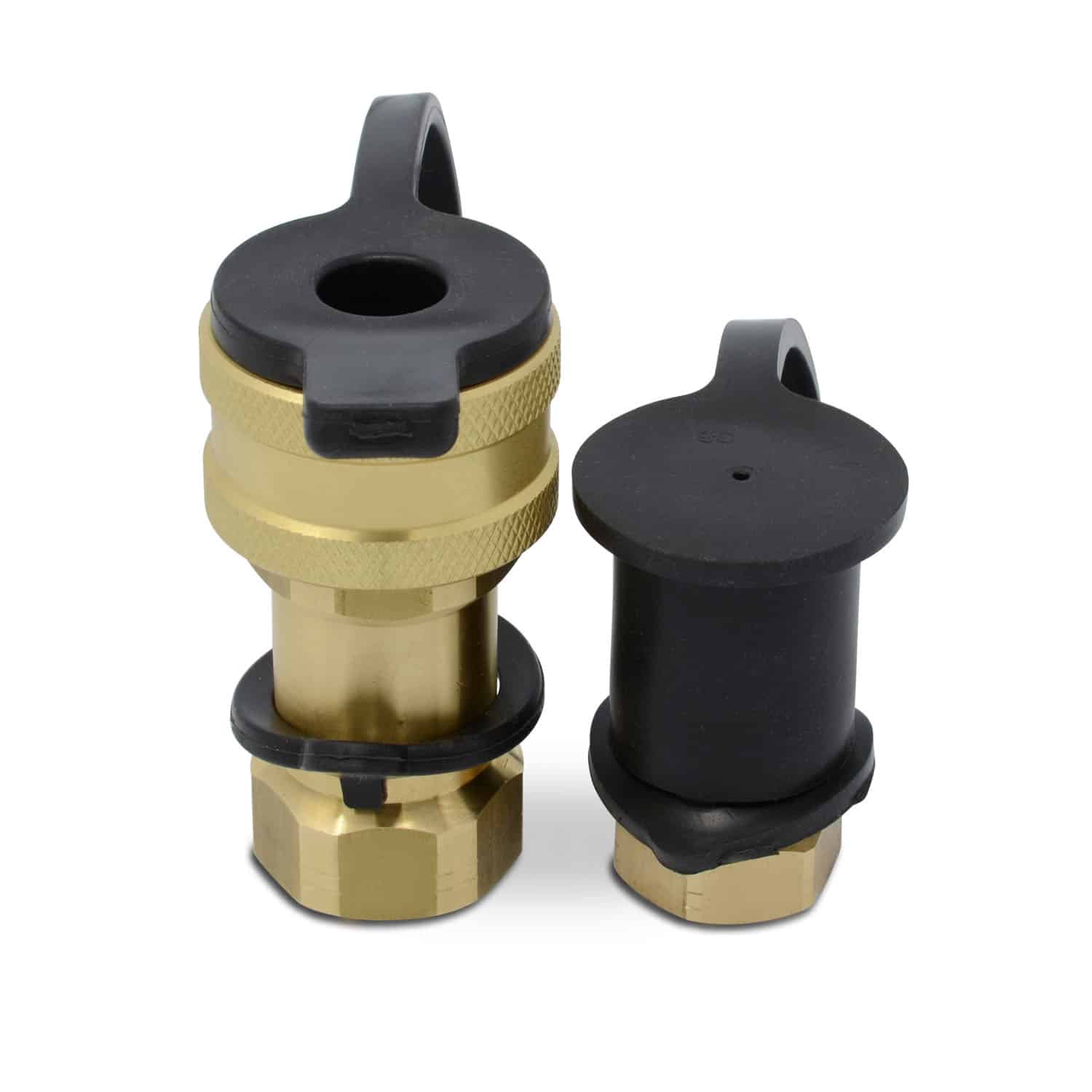

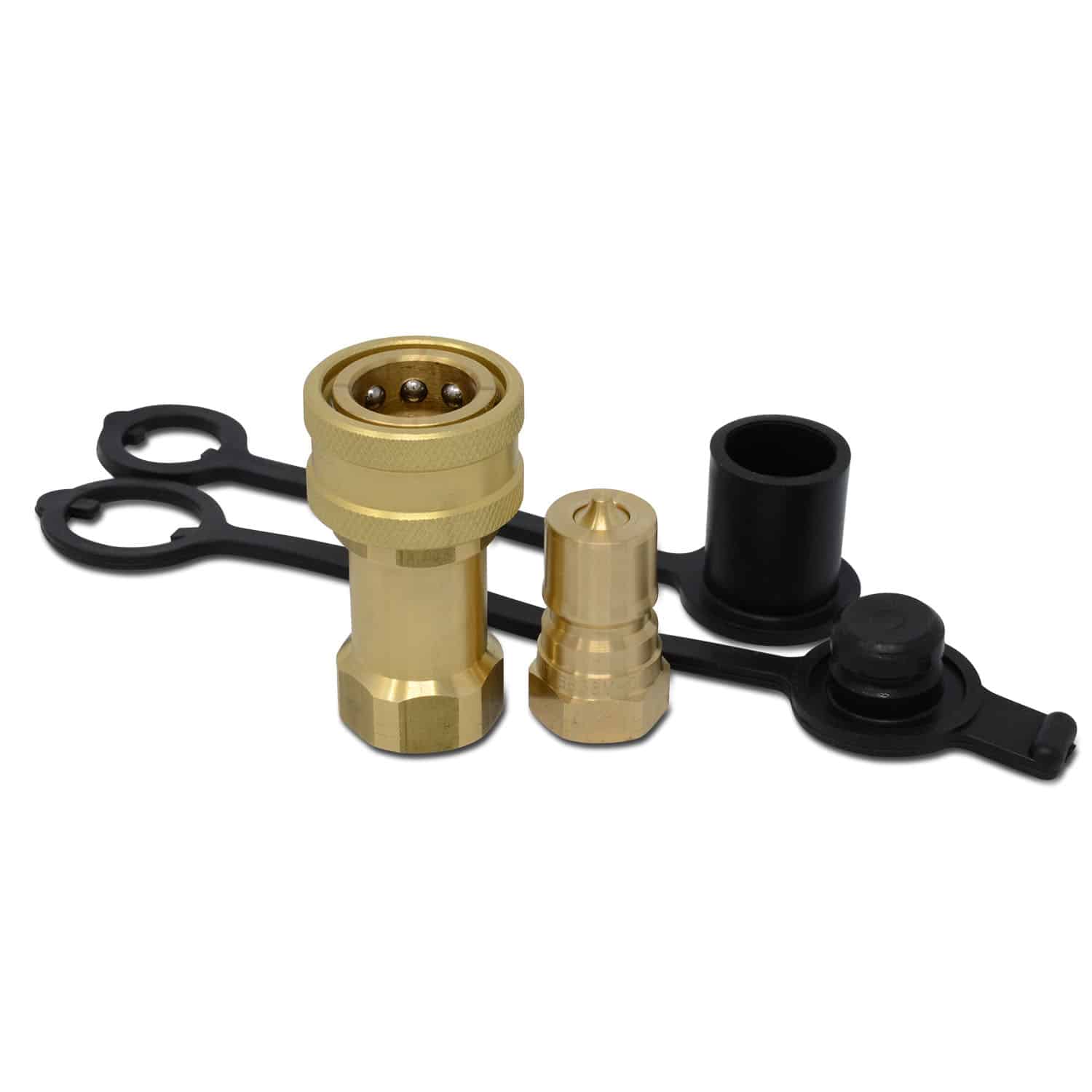

What’s Included:
- Female Coupler
- Male Coupler
- Female Dust Cap
- Male Dust Cap
| Weight | 1 lbs |
|---|---|
| Dimensions | 5 × 5 × 4 in |
| Style | ISO 7241-B |
| Body Size | 3/8" |
| Thread Type | |
| Thread Size | 3/8" |
| Body Material | Brass |
| Locking Type | Sleeve |
