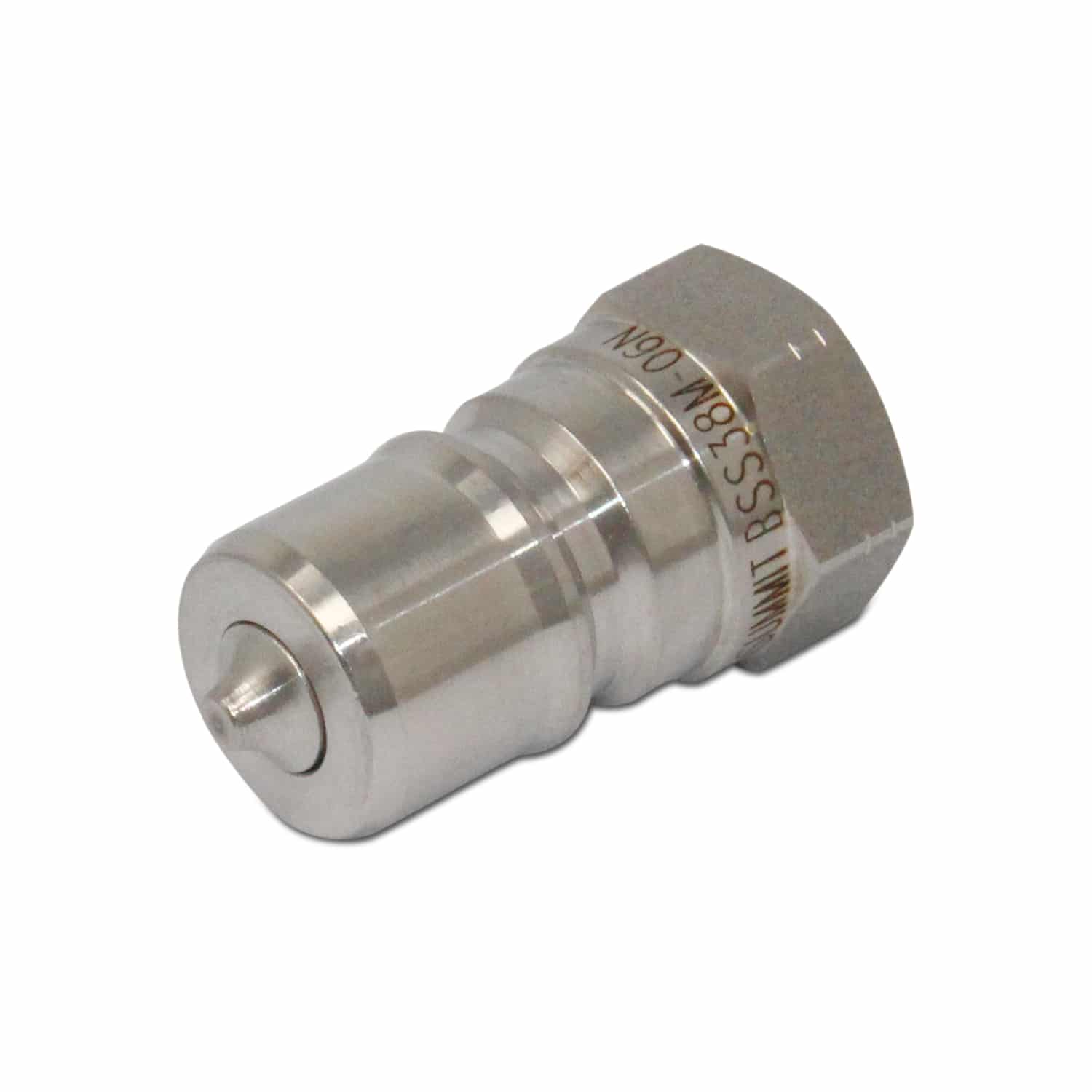

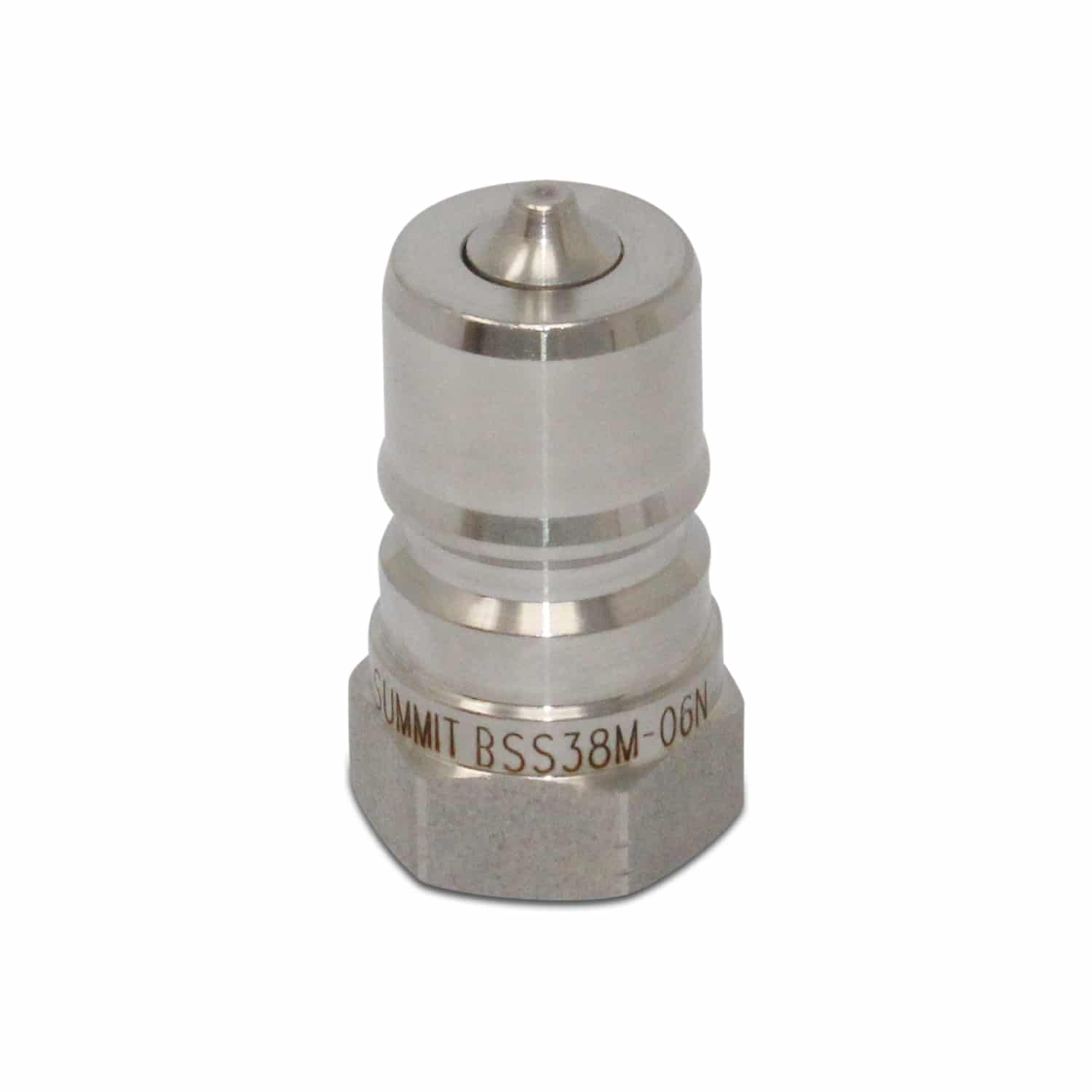

3/8″ NPT ISO 7241-B Stainless Steel Quick Disconnect Hydraulic Male Coupler

SKU: BSS38M-06N

The ISO 7241 B Series of quick disconnect couplers are used on a large spectrum of hydraulic applications with strenuous quality standards such as the aerospace, automotive, electronics industries. They are also recommended for general purpose, machine tools, mobile hydraulics, and other equipment applications. Our Series B couplers are interchangeable with all ISO 7241 B series couplings.

Body Size: 3/8″ Body

Thread Size: 3/8″ NPT Thread, Poppet Valve

Benefits:

• Body Material: 316 or 304 Stainless Steel
• Spring Material: 304 Stainless Steel
• Locking Ball Material: 316 or 304 Stainless Steel
• Stainless Steel Body is highly resistant to corrosion
• Self Sealing Poppet Valve Seals Excellent Under High and Low Pressures
• Seal Type: Viton FKM
• Self Sealing Poppet Valve Seals Excellent Under High and Low Pressures
• Interchangeable with all ISO 7241 B series couplings
• Temperature Range: -15°F to +400°F

Features:

• 3600 PSI Rating
• 14,500 PSI Burst Rating (Coupled)
• Nominal Flow Rate: 6.08 GPM
• Max Flow Rate: 12.15 GPM
• Male Face Diameter 0.75” (19mm)
• Male Length: 1.67” (42.5mm)
• Hex: .86” (22mm)

Interchangeable with:

Kit Includes:

• 1 Male Coupler
