SKU: B38-06N-SET
The ISO 7241 B Series of quick disconnect couplers are used on a large spectrum of hydraulic applications with strenuous quality standards such as the aerospace, automotive, electronics industries. They are also recommended for general purpose, machine tools, mobile hydraulics, and other equipment applications. Our Series B couplers are interchangeable with all ISO 7241 B series couplings.
Body Size: 3/8″ Body
Thread Size: 3/8″ NPT Thread, Poppet Valve
Features:
- Hardened Steel Self Sealing Poppet Valve Seals Excellent Under High and Low Pressures
- Interchangeable with all ISO 7241 B series couplings
- 3600 PSI Rating
- 14,500 PSI Burst Rating (Coupled)
- Nominal Flow Rate: 6.08 GPM
- Max Flow Rate: 12.15 GPM
- Female Face Diameter 1.38” (35mm)
- Female Length: 2.57” (65mm)
- Hex: 0.86” (22mm)
- Male Face Diameter: 0.75″ (19mm)
- Male Length: 1.67″ (42.5mm)
Interchangeable with:
| Manufacturer | Male | Female |
| SUMMIT | B38M-06N | B38F-06N |
| Parker 60 Series | H3-63 | H3-62 |
| Safeway S10 Series | S101-3 | S105-3 |
| Faster HNV | HNV 38 NPT M N | HNV 38 NPT F |
| Snap-Tite 72 Series | 72N6-6F | 72C6-6F |
| Stucchi IRB Series | M IRB38 NPT 800601005 |
F IRB38 NPT 800601004 |
| Dixon H-Series | H3F3 | 3HF3 |
| Eaton HK Series | 3K21 | 3H21 |
| DNP HNV Series | HNV-06-06-N-NPT | HNV-06-06-C-NPT |

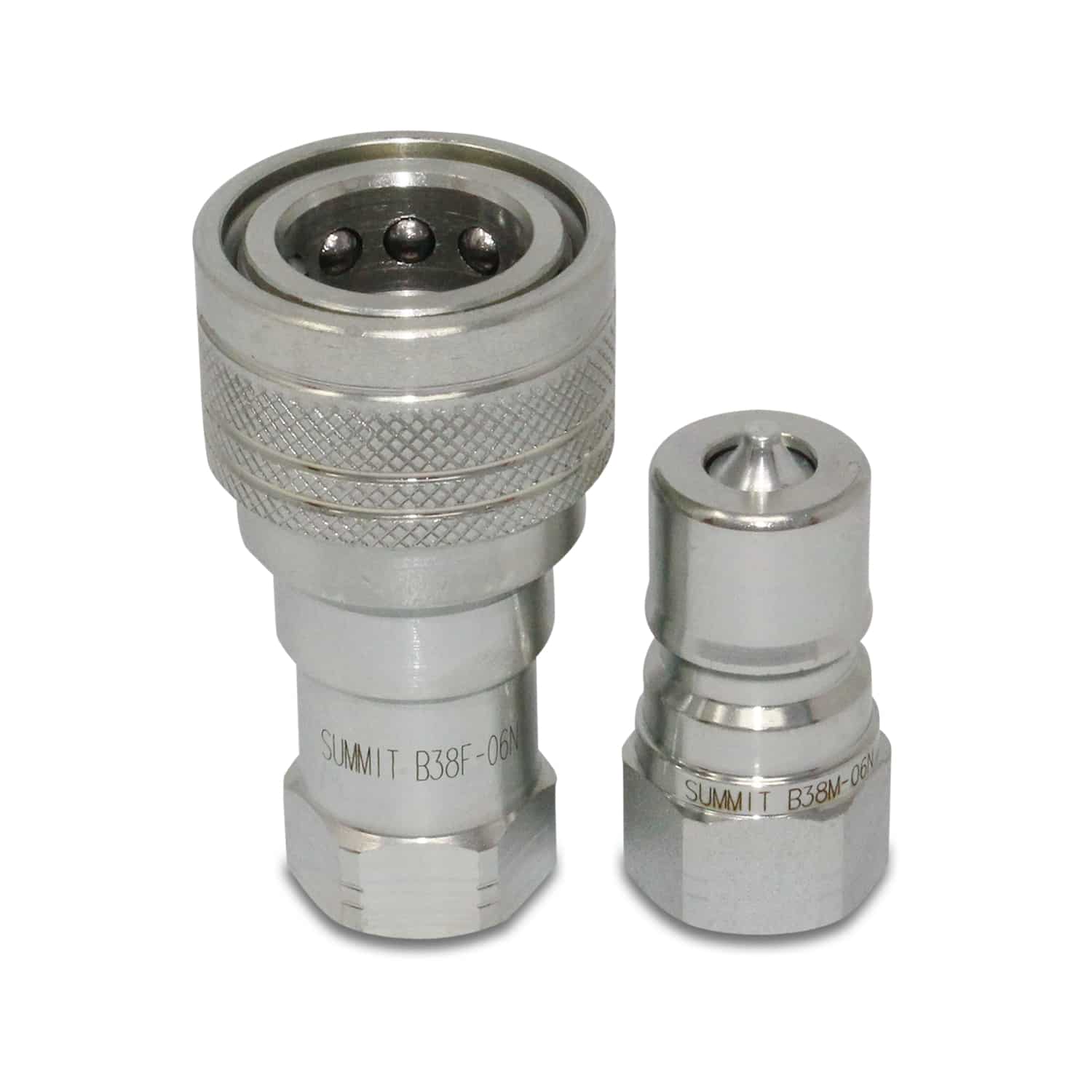

What’s Included:

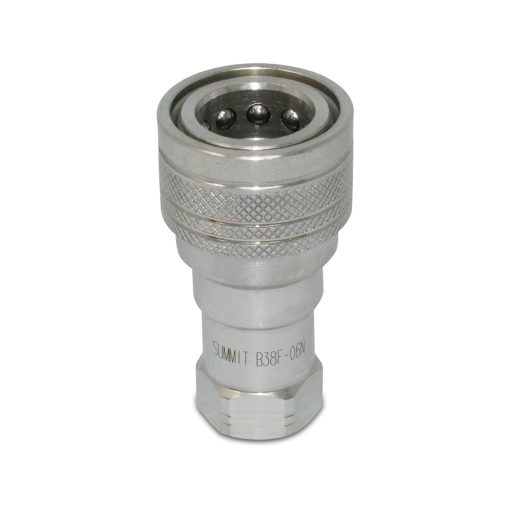

- Female Coupler

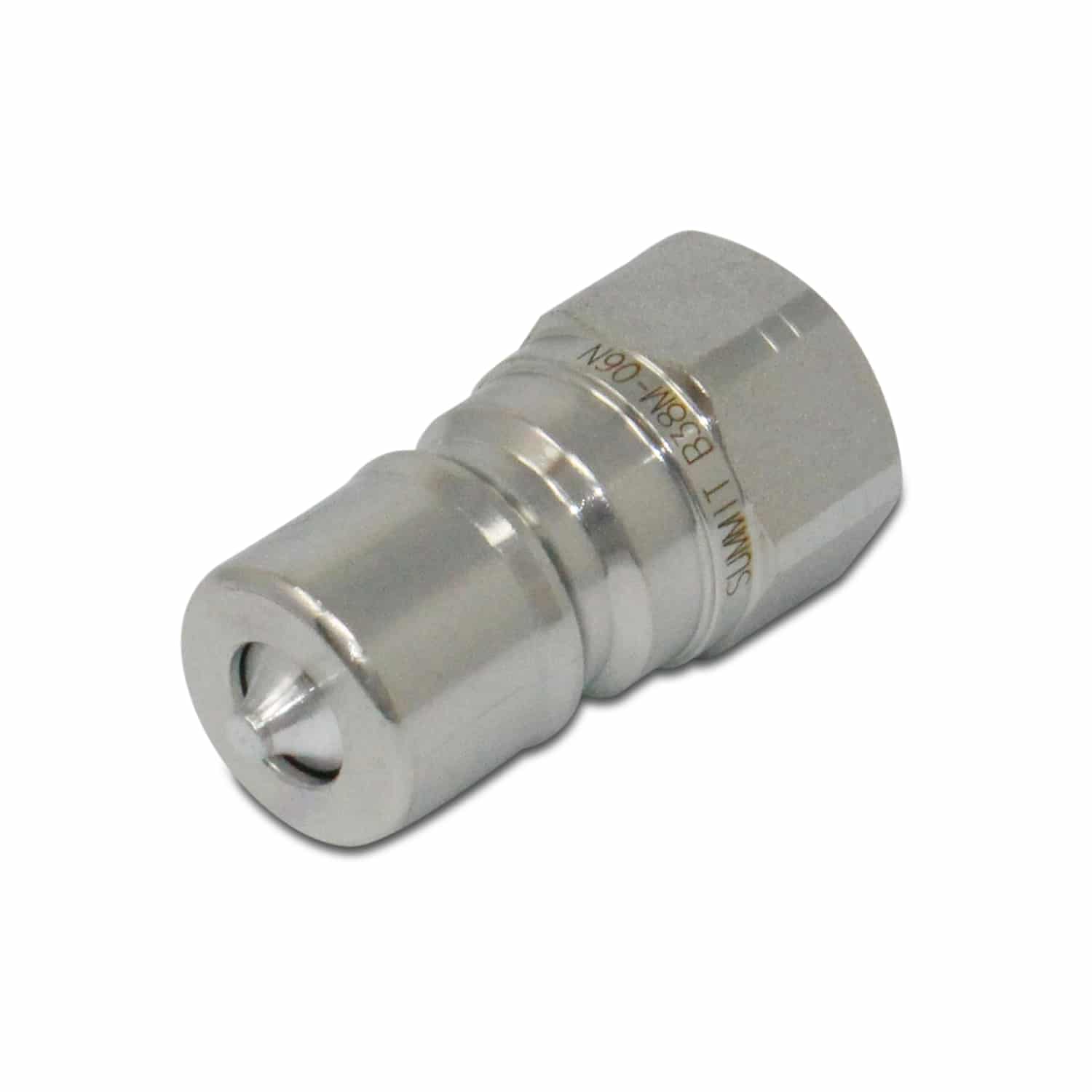

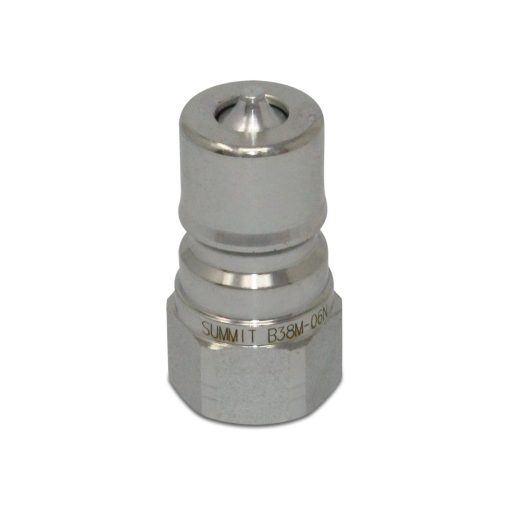

- Male Coupler
- Female Dust Cap
- Male Dust Cap
| Weight | 0.875 lbs |
|---|---|
| Dimensions | 5 × 4 × 3 in |
| ISO Standard | |
| Style | ISO 7241-B |
| ISO Body Size | |
| Body Size | 3/8" |
| Thread Type | |
| Thread Size | 3/8" |
| Body Material | Hardened Steel |
| Locking Type | Sleeve |
| Coupling |
