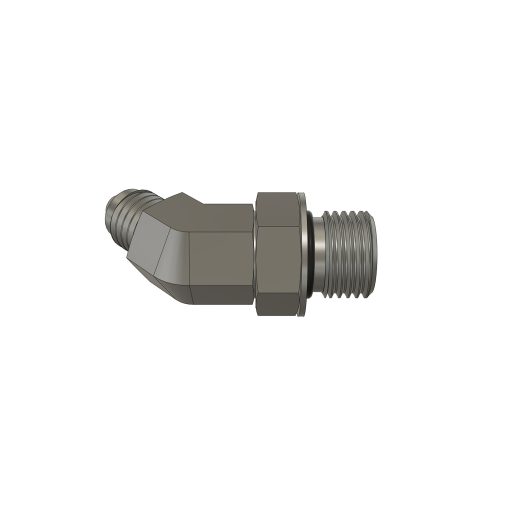

45 Elbow, JIC Male x SAE/ORB Male
- Hydraulic Adapter Fitting
| 6802-04-06-FG | 45 Elbow, 1/4″ JIC Male x #6 SAE/ORB Male |
| 6802-06-06-FG | 45 Elbow, 3/8″ JIC Male x #6 SAE/ORB Male |
| 6802-06-08-FG | 45 Elbow, 3/8″ JIC Male x #8 SAE/ORB Male |
| 6802-06-10-FG | 45 Elbow, 3/8″ JIC Male x #10 SAE/ORB Male |
| 6802-08-06-FG | 45 Elbow, 1/2″ JIC Male x #6 SAE/ORB Male |
| 6802-08-08-FG | 45 Elbow, 1/2″ JIC Male x #8 SAE/ORB Male |
| 6802-08-10-FG | 45 Elbow, 1/2″ JIC Male x #10 SAE/ORB Male |
| 6802-10-10-FG | 45 Elbow, 5/8″ JIC Male x #10 SAE/ORB Male |
| 6802-10-12-FG | 45 Elbow, 5/8″ JIC Male x #12 SAE/ORB Male |
| 6802-12-12-FG | 45 Elbow, 3/4″ JIC Male x #12 SAE/ORB Male |
JIC 37° Flare
| Inch size | Dash size | Thread Size | Male Thread O.D. (in) | Female thread I.D (in) | ||
| 3⁄8 | -6 | 9⁄16 – 18 | 9⁄16 | 0.56 | 17⁄32 | 0.51 |
| 1⁄2 | -8 | 3⁄4 – 16 | 3⁄4 | 0.75 | 11⁄16 | 0.69 |
| 5⁄8 | -10 | 7⁄8 – 14 | 7⁄8 | 0.88 | 13⁄16 | 0.81 |
| 3⁄4 | -12 | 1 1⁄16 – 12 | 1 1⁄16 | 1.06 | 1 | 0.98 |
| 7⁄8 | -14 | 1 3⁄16 – 12 | 1 3⁄16 | 1.19 | 1 1⁄8 | 1.1 |
| 1 | -16 | 1 5⁄16-12 | 1 5⁄16 | 1.31 | 1 1⁄4 | 1.23 |
SAE Straight Thread O-Ring (ORB)
| Inch size | Dash size | Thread Size | Male Thread O.D. (in) | Female thread I.D (in) | ||
| 3⁄8 | -6 | 9⁄16 – 18 | 9⁄16 | 0.56 | 17⁄32 | 0.51 |
| 1⁄2 | -8 | 3⁄4 – 16 | 3⁄4 | 0.75 | 11⁄16 | 0.69 |
| 5⁄8 | -10 | 7⁄8 – 14 | 7⁄8 | 0.88 | 13⁄16 | 0.81 |
| 3⁄4 | -12 | 1 1⁄16 – 12 | 1 1⁄16 | 1.06 | 1 | 0.98 |
| 7⁄8 | -14 | 1 3⁄16 – 12 | 1 3⁄16 | 1.19 | 1 1⁄8 | 1.1 |
| 1 | -16 | 1 5⁄16-12 | 1 5⁄16 | 1.31 | 1 1⁄4 | 1.23 |
| Weight | N/A |
|---|---|
| Size | 1/4" JIC Male x #6 SAE/ORB Male, 3/8" JIC Male x #6 SAE/ORB Male, 3/8" JIC Male x #8 SAE/ORB Male, 3/8" JIC Male x #10 SAE/ORB Male, 1/2" JIC Male x #6 SAE/ORB Male, 1/2" JIC Male x #8 SAE/ORB Male, 1/2" JIC Male x #10 SAE/ORB Male, 5/8" JIC Male x #10 SAE/ORB Male, 5/8" JIC Male x #12 SAE/ORB Male, 3/4" JIC Male x #12 SAE/ORB Male |
