Electric Hydraulic Double Acting Directional Control Valve, 2 Spool, 15 GPM

Electric Hydraulic Double Acting Directional Control Valve, 2 Spool, 15 GPM

This double acting hydraulic control valve controls the flow of hydraulic fluid in/out of a hydraulic cylinder or motor (depending on spool type). These valves add additional auxiliary hydraulic functions or replace a current hydraulic control valve. This works as a two station, open-center, series configuration setup.

Three Spool Options Available:

A Spool (Controls Double Acting Cylinders)

• All spools are double acting with spring return to neutral position, A spool controls double acting cylinders
• A and B ports are closed to Tank in neutral position

C Spool (Closed Center)

• A & B Ports are closed in the neutral position, and designed for double-acting cylinders.
• T port is closed to tank in the neutral position, and is designed for use on closed-center hydraulic systems. No load sensing options are available on this valve.

D Spool (Motor Control)

• All spools are double acting with spring return to neutral position, D spool is designed for non-load holding applications such as motors and horizontal cylinders
• A and B ports are open to Tank in neutral position
• Intended for Closed Center Systems

H Spool (Open Center)

• All spools are double acting with spring return to neutral position
• All four ports are open in neutral position
• Intended for Open Center Systems

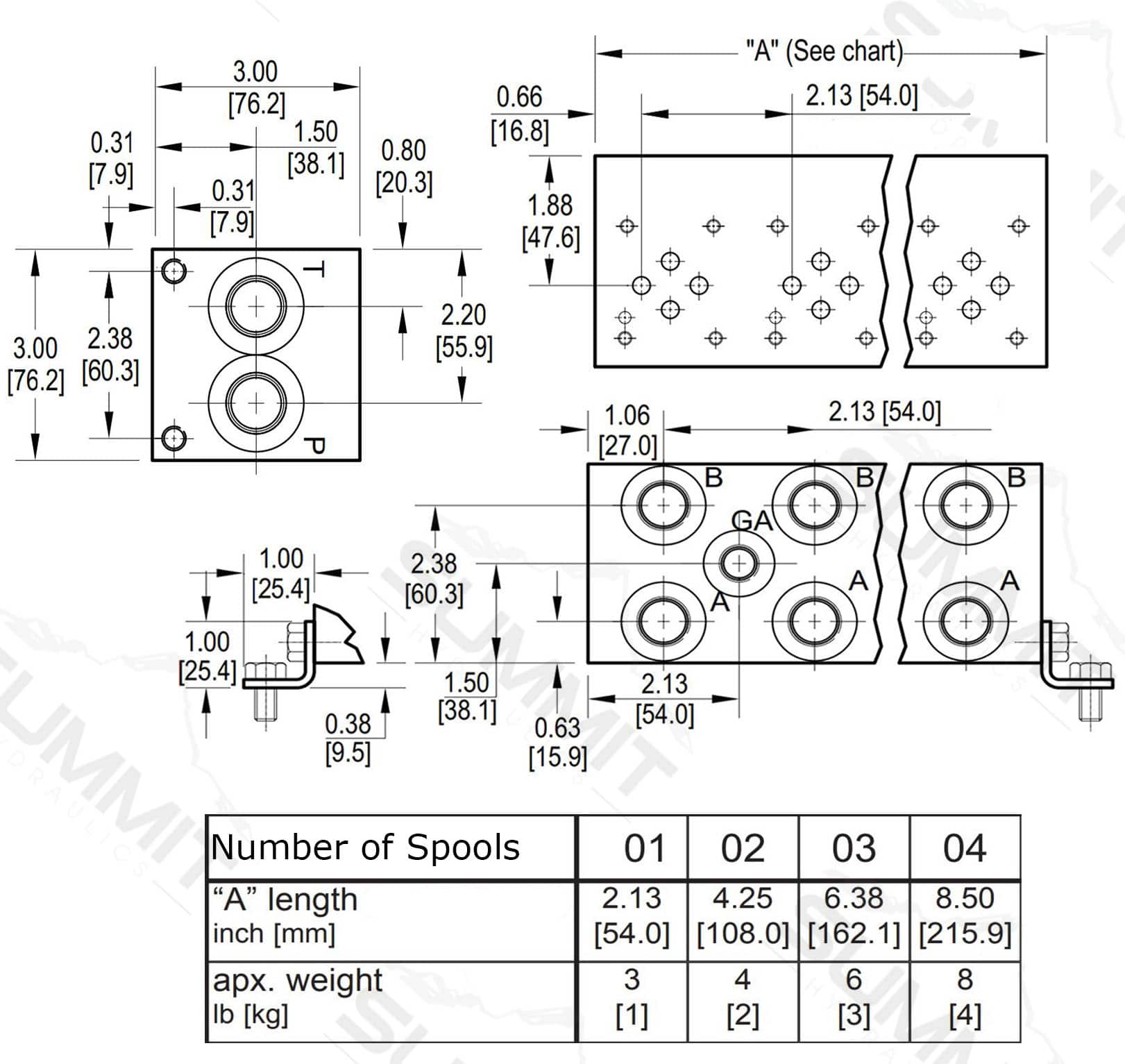

Valve Body Features:

• Solid aluminum housing designed for rugged use
• Max Operating Pressure: P = 5080 PSI, T = 3050 PSI, A & B = 5080 PSI
• Flow Rating: 15 GPM
• Aluminum Body
• 3000 PSI Rated
• Port Sizes:
  • Work Ports: #8 SAE (3/4 – 16 ORB) Female Thread
  • Pressure & Return Ports: #10 SAE (7/8- 14 ORB) Thread

Switch Features:

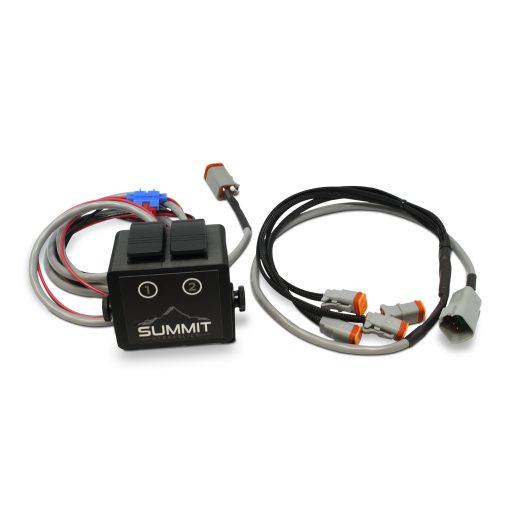

• Switch Box with two momentary rocker switches that spring automatically to the neutral position
• 1 Switch Box with three momentary rocker switches and 5′ Harness
• Valve harness uses DIN connections for great functionality
• 1 36″ Valve Harness with DIN connectors
• Optional 10′ and 20′ Extension Harness Available

Solenoid Specifications:

• Nominal Voltage Tolerance +/- 10%
• Power Rating: 37 Watts
• Amps: 3.08
• 100% Duty Cycle
