SKU: FF34-12J-SET
Body Size: 3/4″
Thread: 3/4″ JIC Bulkhead
- Standard Skid Steer quick coupler (3/4” Body) interchangeable with ISO 16028 Flat Face Couplers
- #12 JIC Bulkhead adapter which allows direct mounting on machine
- Heavy Duty Design with 6100 PSI Rating
- Max Flow Rate: 52 GPM

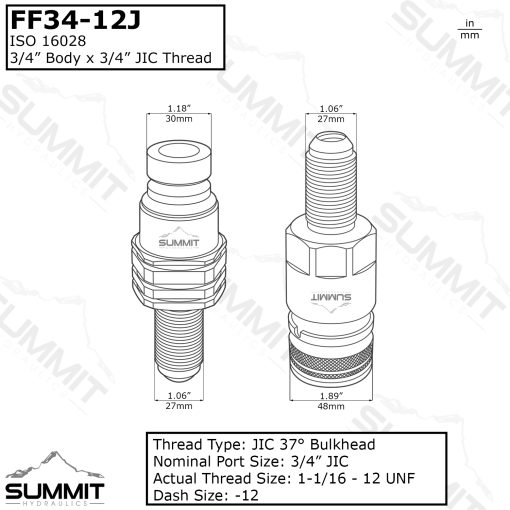

- Male Face Diameter: 1.18″ (30mm)
- Female Face Diameter: 1.89″ (48mm)
- Locking sleeve helps prevent accidental disconnect
| Weight | 8 lbs |
|---|---|
| Dimensions | 7 × 5 × 4 in |
| Style | Flat Face |
| Body Size | 3/4" |
| Thread Type | |
| Thread Size | #12 |
| Body Material | Hardened Steel |
| Locking Type | Ball |
