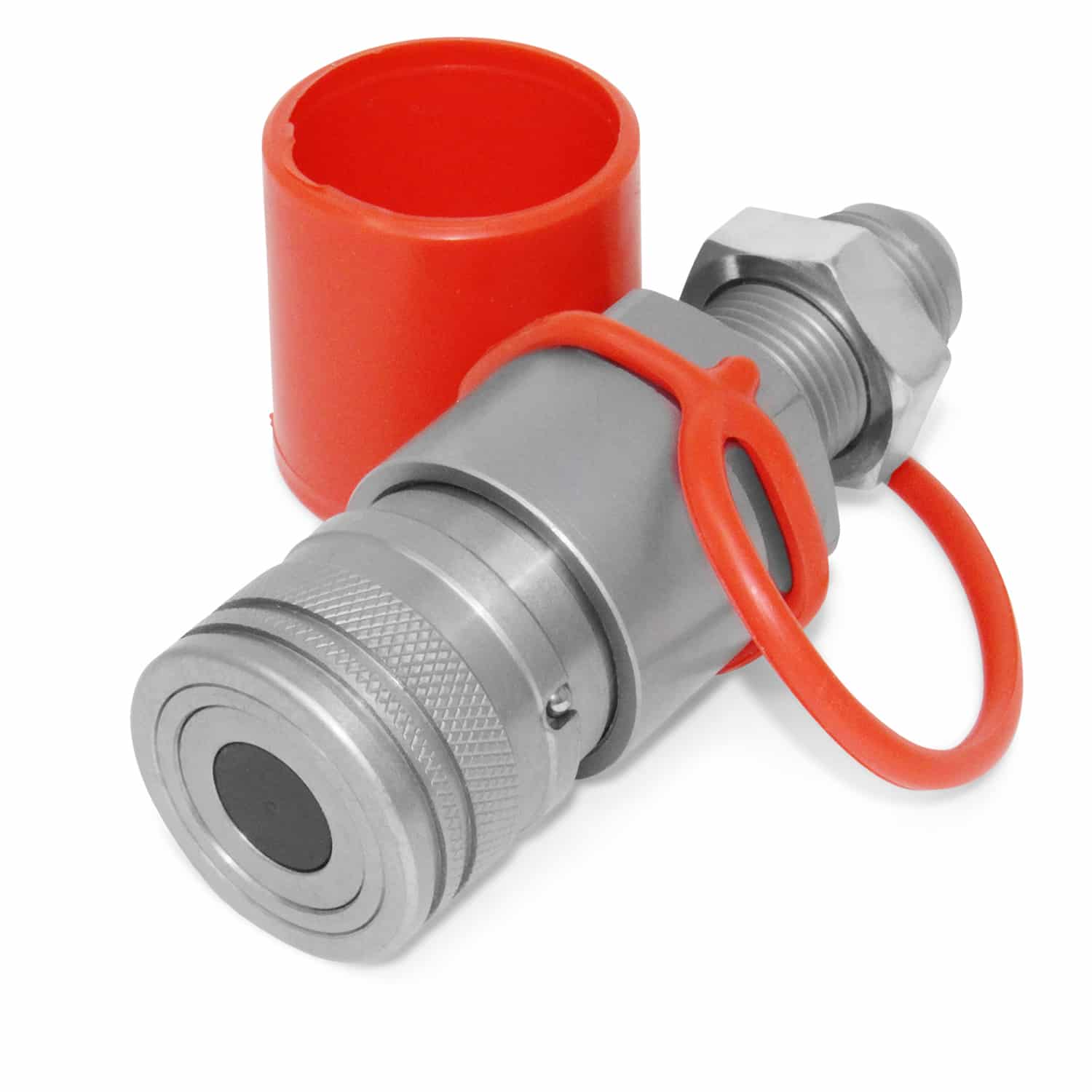

Flat Face Hydraulic Quick Connect Female Coupler, 1″ Body x #16 JIC Bulkhead Mount

SKU: FF1F-16J

Body Size: 1″

Thread: 1″ JIC Bulkhead

Benefits

• Flush face valve design minimizes fluid loss and air inclusion
• Locking sleeve to prevent accidental disconnection
• Zinc-nickel plating provides superior corrosion resistance
• Hardened steel construction with hardened sleeves
• Allows for minimal pressure drops
• Easy single-handed push-connect design
• Nipple seal resists blow-outs
• Interchangeable with other ISO 16028 standard couplings

Features

• Standard Skid Steer quick coupler (1” Body) interchangeable with ISO 16028 Flat Face Couplers
• #16 JIC Bulkhead adapter which allows direct mounting on machine
• 5,076 PSI rating
• 97 GPM Max Flow Rate
• 50 GPM Nominal Flow Rate
• Buna-N Seals with Teflon backup ring can operate up to 250° F
• Female Face Diameter: 2.17” (55mm)
• Locking sleeve helps prevent accidental disconnect

Kit Includes:

• 1 Female Coupler
• 1 Female Dust Cap
