SKU: FF12F-12S
ISO Body Size: 1/2”
Port Thread: 3/4″ SAE (1-1/16″ Female O-Ring Boss)
Benefits
- Flush face valve design minimizes fluid loss and air inclusion
- Locking sleeve to prevent accidental disconnection
- Zinc-nickel plating provides superior corrosion resistance
- Hardened steel construction with hardened sleeves
- Allows for minimal pressure drops
- Easy single-handed push-connect design
- Nipple seal resists blow-outs
- Interchangeable with other ISO 16028 standard couplings
Features
- 5,076 PSI rating
- 23.78 GPM Max Flow Rate
- 12 GPM Nominal Flow Rate
- Buna-N Seals with Teflon backup ring can operate up to 250° F

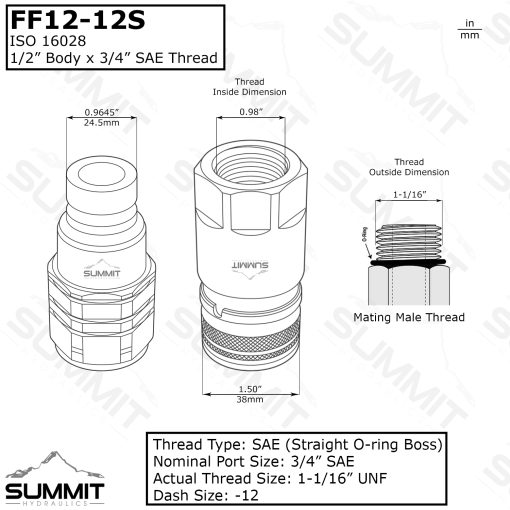

- Face Diameter: 1.50” (38mm)
- Length: 3.43” (87mm)
- Hex: 1.42” (36mm)
Cross Reference
| Manufacturer | Female |
| SUMMIT | FF12F-12S |
| Parker FE Series | FEM-501-12FO |
| Safeway FFE49 Series | FFE495-4-12 |
| Faster FFH Series | FFH08 34SAE F |
| Eaton Aeroquip FD89 | FD89-1005-12-08 |
| Snap Tite 74 Series | 74C8-12EM |
| Stucchi FIRG Series | 800804008 |
| Dixon HT Series | 4HTOF6 |
| DNP PLT4 Series | FF-HPG-08-12C-SAE |
| Tomco FE Series | EC4-12 |
Compatible With:
- Bobcat (2001 or older): 7753, 773, 863, 873, 963
- John Deere: 325, 328, 332
- GEHL: 4640, 4840, 5640, 6640
- Volvo: MC90, MC110
- ASV: RC100
| Weight | 1.15 lbs |
|---|---|
| Dimensions | 6 × 3 × 3 in |
| ISO Standard | |
| Style | Flat Face |
| ISO Body Size | |
| Body Size | 1/2" |
| Thread Type | |
| Thread Size | 3/4" |
| Body Material | Hardened Steel |
| Locking Type | Ball |
| Coupling |
