SKU: FF12M-08S
ISO Body Size: 1/2”
Port Thread: 1/2” SAE (¾-16” O-Ring Boss)
Benefits:
- Flush face valve design minimizes fluid loss and air inclusion
- Zinc-nickel plating provides superior corrosion resistance
- Hardened steel construction with hardened sleeves
- Allows for minimal pressure drops
- Easy single-handed push-connect design
- Nipple seal resists blow-outs
- Interchangeable with other ISO 16028 standard couplings
Features:
- 5,076 PSI rating
- 23.78 GPM Max Flow Rate
- 12 GPM Nominal Flow Rate
- Buna-N Seals with Teflon backup ring can operate up to 250° F

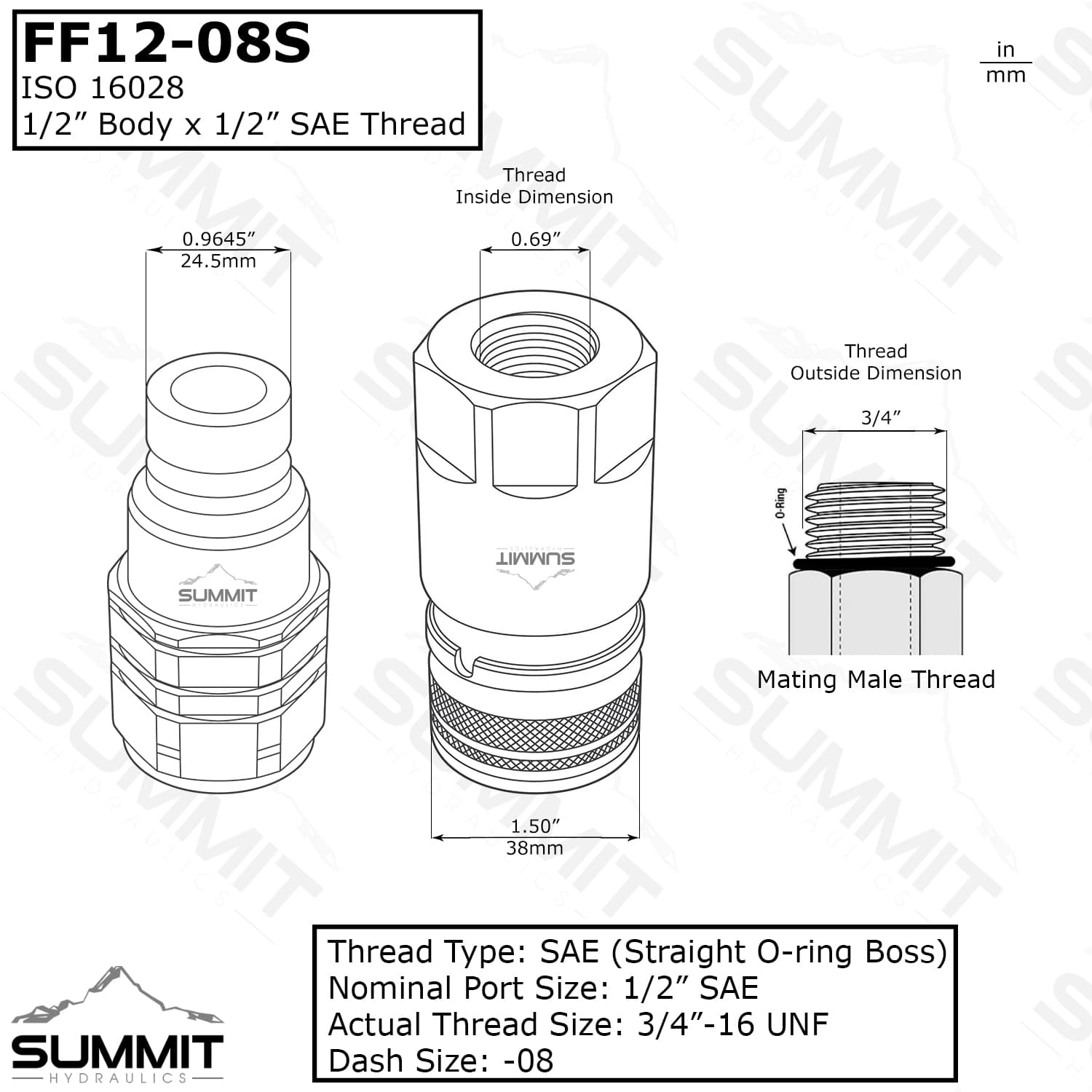

- Face Diameter: 0.94” (24.5mm)
- Length: 2.87” (73mm)
- Hex: 1.42” (36mm)
Interchangeable With:
| Manufacturer | Male |
| SUMMIT | FF12M-08S |
| Parker FE Series | FEM-502-8FO |
| Faster FFH Series | FFH08 12SAE M |
| Snap Tite 74 Series | 74N8-8EF |
| Stucchi FIRG Series | 803304004 |
| Dixon HT Series | HT4OF4 |
| DNP PLT4 Series | FF-HPG-08-08N-SAE |
| Holmbury | HQ12-M-08S |
| Weight | 0.75 lbs |
|---|---|
| Dimensions | 5 × 3 × 3 in |
| ISO Standard | |
| Style | Flat Face |
| ISO Body Size | |
| Body Size | 1/2" |
| Thread Type | |
| Thread Size | 1/2" |
| Body Material | Hardened Steel |
| Locking Type | Ball |
| Coupling |
