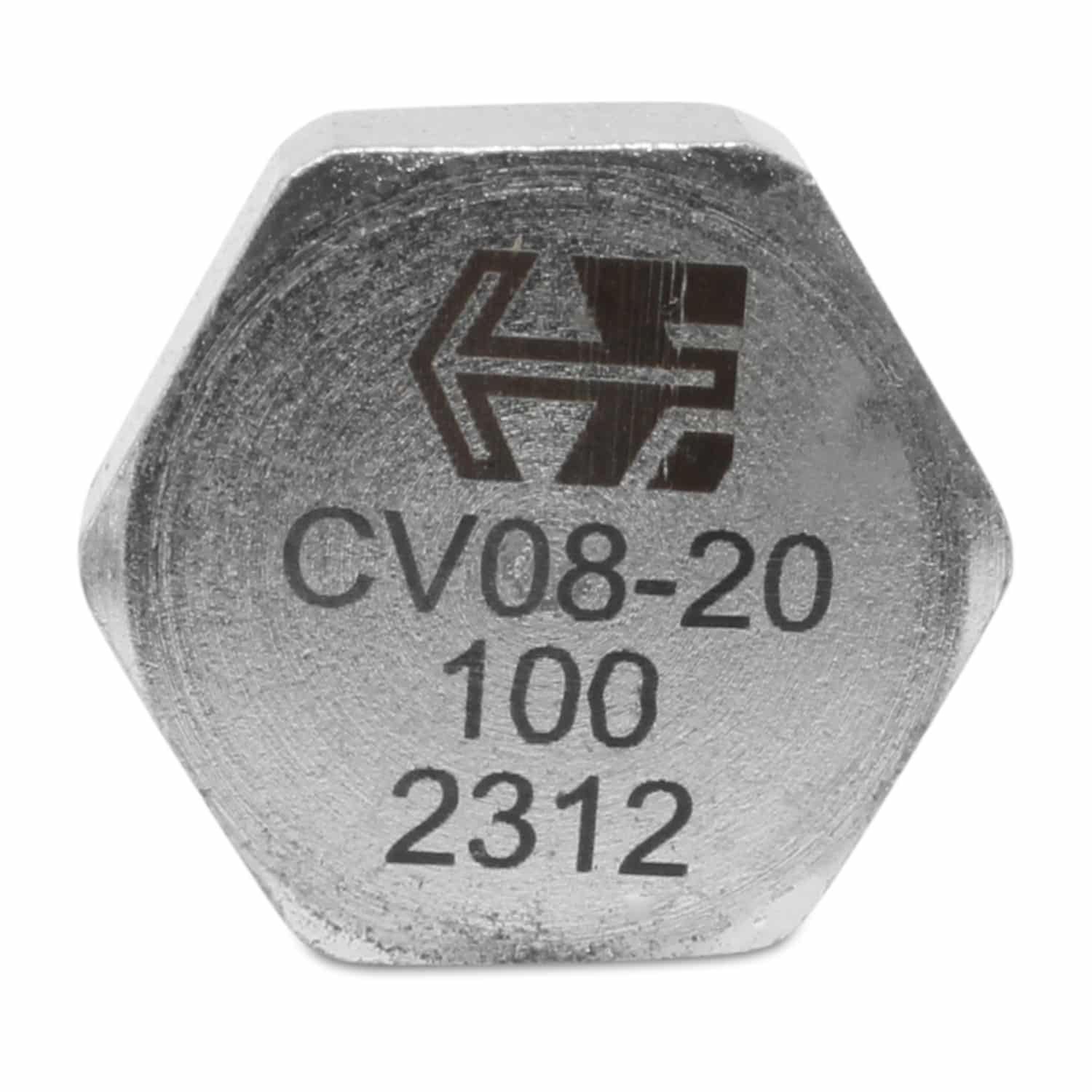

Hydraforce CV08-20-0-N-100 Piloted Spool-Type Logic Element Valve, 100 PSI
SKU: CV08-20-0-N-100
Hydraforce Part Number: CV08-20-0-N-100

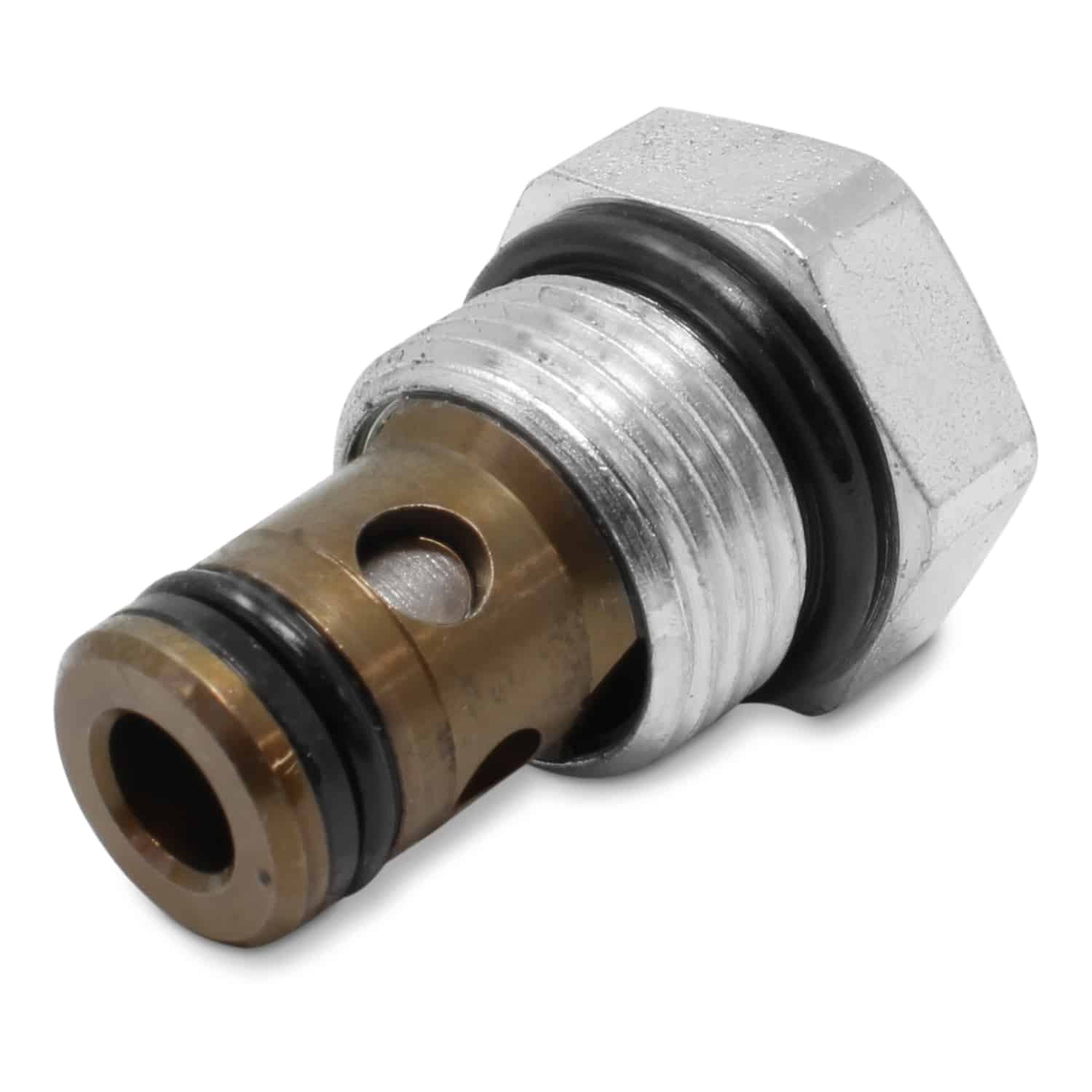

Screw-in, cartridge style, hydraulic check valve for use as a blocking or load-holding device.
The valve allows flow passage from port 1 to port 2, while normally blocking oil flow in the opposite direction. The cartridge has a fully guided check which is spring-biased closed until sufficient pressure is applied at port 1 to open to port 2.
- 3500 PSI Rated (240 Bar)
- Fits VC08-2 Cavity
- Uses Size 08 (1/2″ Hole) Solenoids
Specifications:
Pressure Rating:
- 241 bar (3500 psi)
Proof Pressure:
- 350 bar (5075 psi)
Maximum Internal Leakage:
- 2 drops/min Note: At 241 bar (3500 psi)
Operating Fluid Temperature:
-
- -40 to 100 °C (-40 to 212 °F) Note: With buna N seals
- -26 to 204 °C (-15 to 400 °F) Note: With fluorocarbon seals
- -54 to 107 °C (-65 to 225 °F) Note: With polyurethane seals
Storage Temperature:
- -40 to 70 °C (-40 to 160 °F)
Ambient Temperature:
- -40 to 90 °C (-40 to 194 °F)
Fluids:
- Mineral based or synthetic hydraulic fluid with lubricating properties
Fluid Viscosity Range:
- 7.4 to 420 cSt
Maximum Operating Contamination Level:
- 20/18/14 per ISO 4406
Installation Specifications:
Cavity:
- VC08-2
- 08-size-2-way Cavities
Cartridge Installation Torque:
- 25.8 to 28.5 N-m (19 to 21 ft-lb)
Maximum Allowable Torque:
- 54 N-m (40 ft-lb)
Orientation Restriction:
- None
| Weight | 0.1 lbs |
|---|
