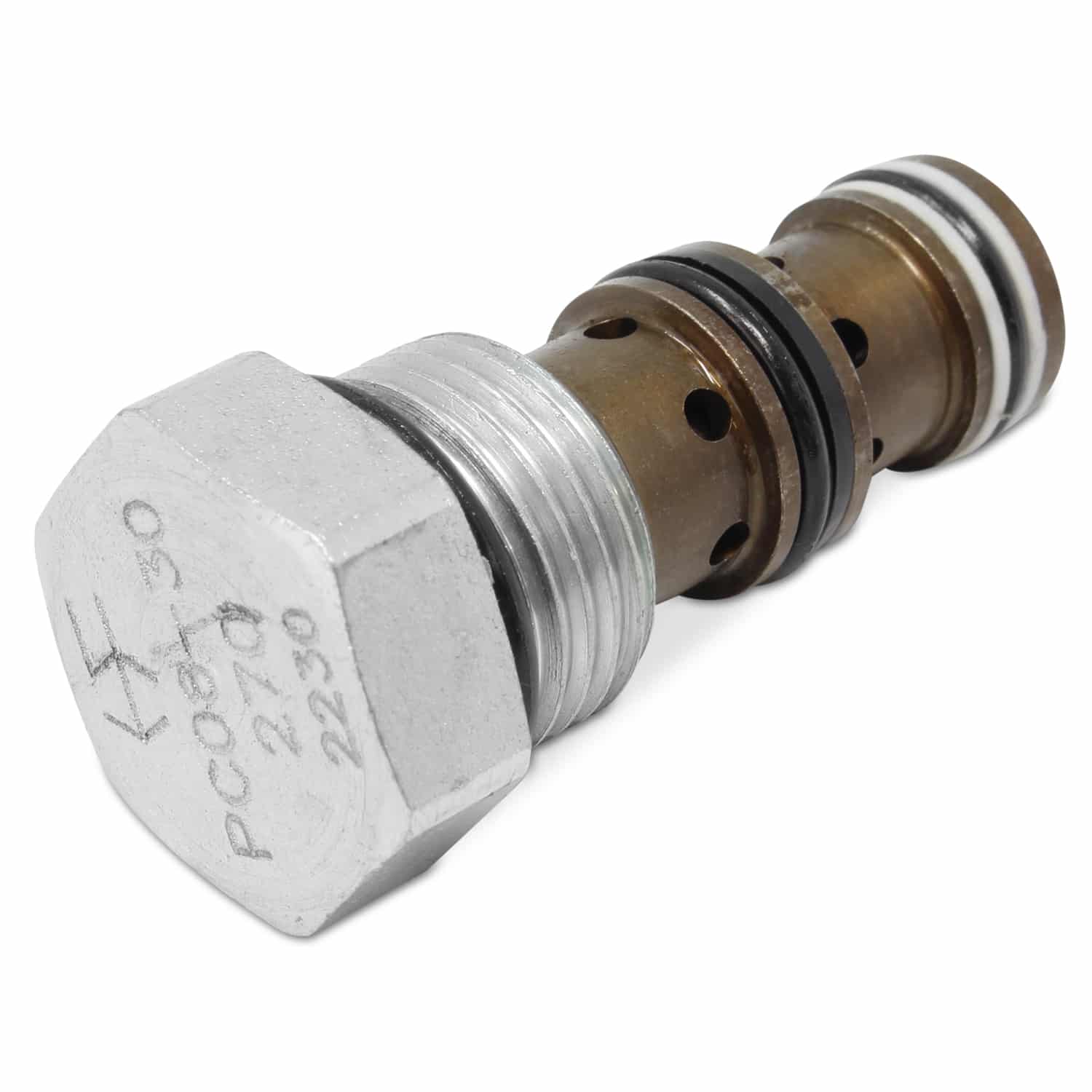

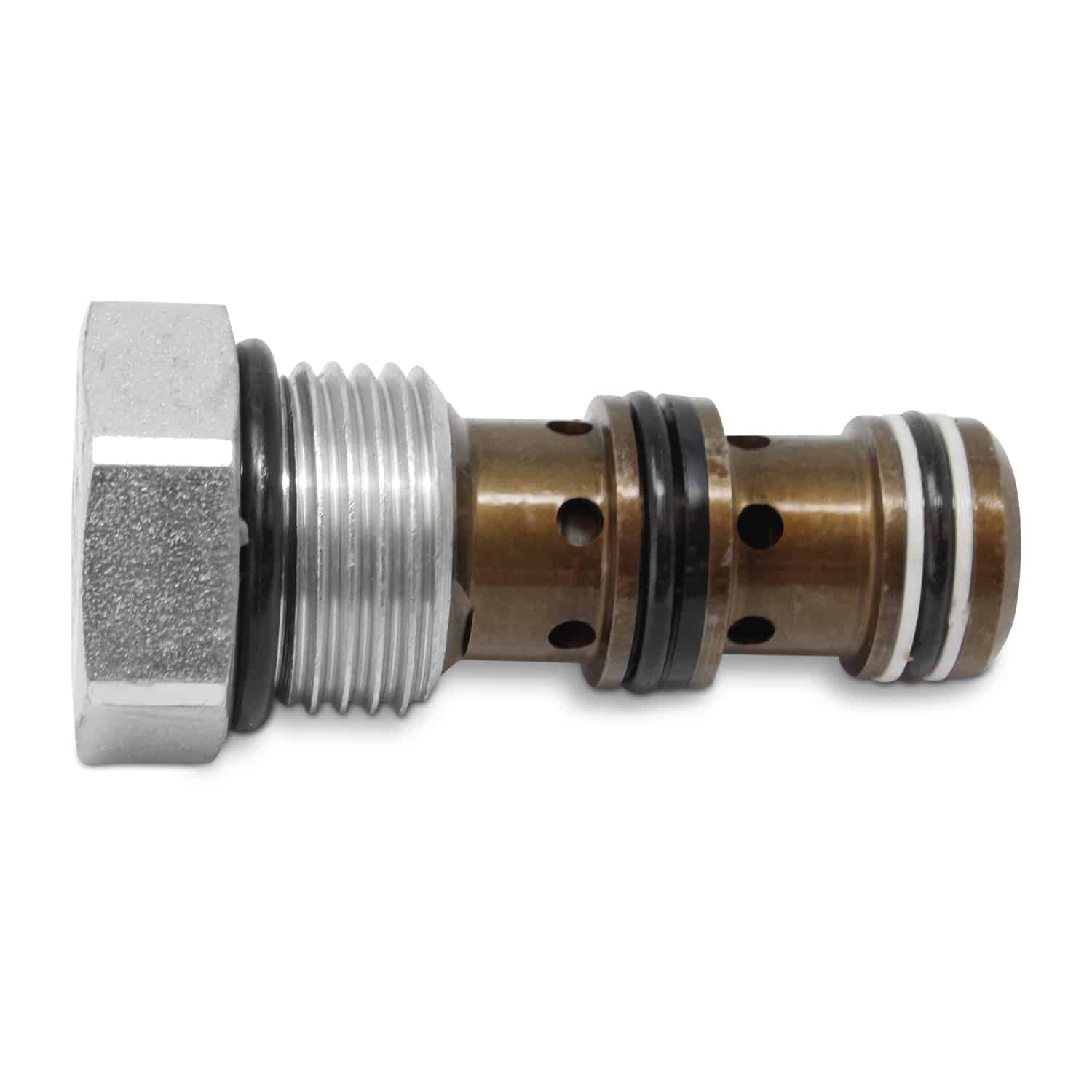

Hydraforce PC08-30-0-N-270 Directional Controls, Check Valve, Pilot Operated

Hydraforce PC08-30-0-N-270 Directional Controls – Check Valve – Pilot Operated

SKU: PC08-30-0-N-270

Hydraforce Part Number: PC08-30-0-N-270

Seal Kit: SK08-3N-TM Buna N

The PC08-30 is a screw-in, cartridge style, pilot operated, hydraulic check valve used for blocking or load holding circuits.

It allows free flow from port 2 to 3, while normally blocking flow from port 3 to 2. Flow will be allowed from port 3 to 2 when pressure is applied at port 1.

• Hardened seat for long life and low leakage.
• Optional sealed piston.
• Optional spring ranges.
• Compact size.

Specification

Pressure rating:

• 241 bar (3500 psi)

Flow rating:

•  See performance chart

Maximum internal leakage:

• 0.1 ml/min (2 drops/min) Between ports 3 and 2
• 115 ml/min (7 in³/min) Between ports 2 and 1
• 0 ml/min (0 drops/min) Between ports 2 and 1 with sealed piston

Operating fluid temperature:

• -40 to 100 °C (-40 to 212 °F) With buna N seals
• -26 to 204 °C (-15 to 400 °F) With viton seals
• -54 to 107 °C (-65 to 225 °F) With urethane seals
• -54 to 107 °C (-65 to 225 °F) With polyurethane seals

Storage temperature:

• -40 to 70 °C (-40 to 160 °F)

Ambient temperature:

• -40 to 70 °C (-40 to 160 °F)

Fluids:

• Mineral based or synthetic hydraulic fluid with lubricating properties

Fluid viscosity range:

• 7.4 to 420 cSt

Maximum operating contamination level:

• 20/18/14 per ISO 4406

Cavity:

• VC08-3

• 08-size-3-way Cavities

Cartridge installation torque:

• 25.8 to 28.5 N-m (19 to 21 ft-lb)

Orientation restriction:

• None
