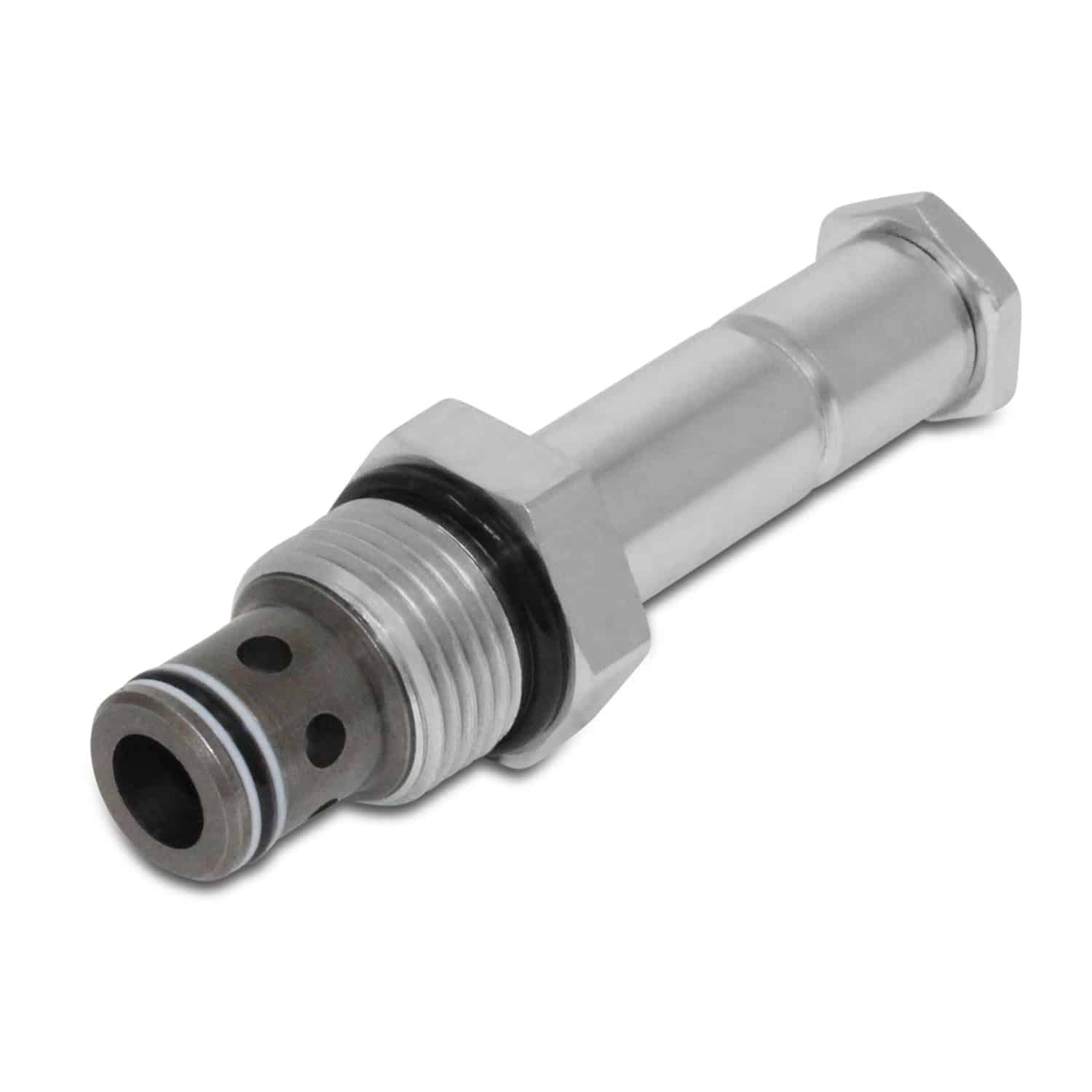

Hydraforce SV10-24-0-N-00 Solenoid Spool Cartridge Valve, 2-Way, Normally Closed
SKU: SV10-24-0-N-00
Hydraforce Part Number: SV10-24-0-N-00

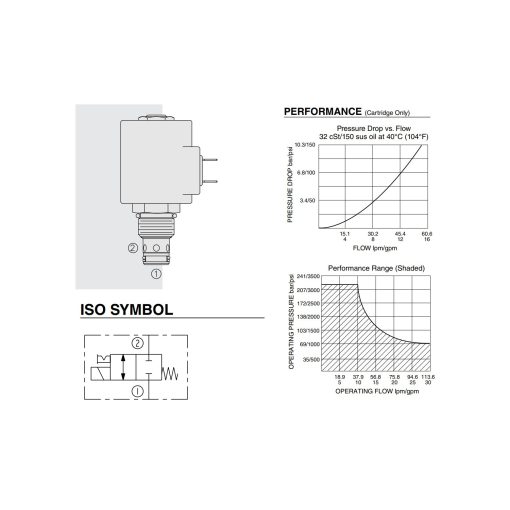

Solenoid-operated, two-port, normally closed, direct-acting, spool-type, screw-in hydraulic cartridge valve, designed to operate as a bidirectional blocking valve.
When de-energized, the SV10-24 blocks flow in both directions. When energized, the cartridge’s spool shifts to open the bidirectional flow path.
- Bi-directional flow path.
- Both ports may be fully pressurized.
- Hardened precision spool
- 15 GPM max Flow
- 3000 PSI Rated
- Fits VC10-2 Cavity
- Uses Size 10 (5/8″ Hole) Solenoids
Cartridge Valve Assembly Part Numbers:
| Cartridge Assembly P/N | Solenoid Coil P/N | Manifold P/N | Voltage | Connection Type |
| SV10-24-8T-N-12ER | 4303712 | 7024280 | 12V DC | Deutsch Connector |
| SV10-24-8T-N-12DL | 6352012 | 7024280 | 12V DC | Dual Wire Leads |
| SV10-24-8T-N-12DS | 6351012 | 7024280 | 12V DC | Dual Spade (2-Prong) |
| SV10-24-8T-N-12DG | 6356012 | 7024280 | 12V DC | 3-Prong DIN |
| SV10-24-8T-N-12EY | 4303512 | 7024280 | 12V DC | Metripack-150 |
| SV10-24-8T-N-12DL/W | 6359412 | 7024280 | 12V DC | Weather Pack |
| SV10-24-8T-N-24DL/W | 6359424 | 7024280 | 24V DC | Weather Pack |
| SV10-24-8T-N-24ER | 4304124 | 7024280 | 24V DC | Deutsch Connector |
| SV10-24-8T-N-24DL | 6352024 | 7024280 | 24V DC | Dual Wire Leads |
| SV10-24-8T-N-24EL | 4305724 | 7024280 | 24V DC | Dual Wire Leads |
| SV10-24-8T-N-24DS | 6351024 | 7024280 | 24V DC | Dual Spade (2-Prong) |
| SV10-24-8T-N-24DG | 6356024 | 7024280 | 24V DC | 3-Prong DIN |
| SV10-24-8T-N-12EL | 4305712 | 7024280 | 12V DC | Dual Wire Leads |
| SV10-24-8T-N-12EL/Z | 4307112 | 7024280 | 12V DC | Dual Wire Leads |
| SV10-24-8T-N-12DL/W | 6359732 | 7024280 | 12V DC | Weather Pack |
| SV10-24-8T-N-10ER | 4303724 | 7024280 | 24V DC | Deutsch Connector |
| SV10-24-8T-N-24DL/W/D | 6359739 | 7024280 | 24V DC | Weather Pack |
| SV10-24-8T-N-10DS | 6301010 | 7024280 | 10V DC | Dual Spade (2-Prong) |
| SV10-24-8T-N-115AP | 6365115 | 7024280 | 115V DC | Dual Wire Leads |
| SV10-24-8T-N-115AG | 6366115 | 7024280 | 115V DC | 3-Prong DIN |
| Additional coils w/o assembly P/N | ||||
| 10162-76, 4305882, 6359763, 4215418, 10196-60, 10226-08, 10226-33, 10226-70, 10246-43 | ||||
| Weight | 1 lbs |
|---|---|
| Dimensions | 5 × 3 × 2 in |
