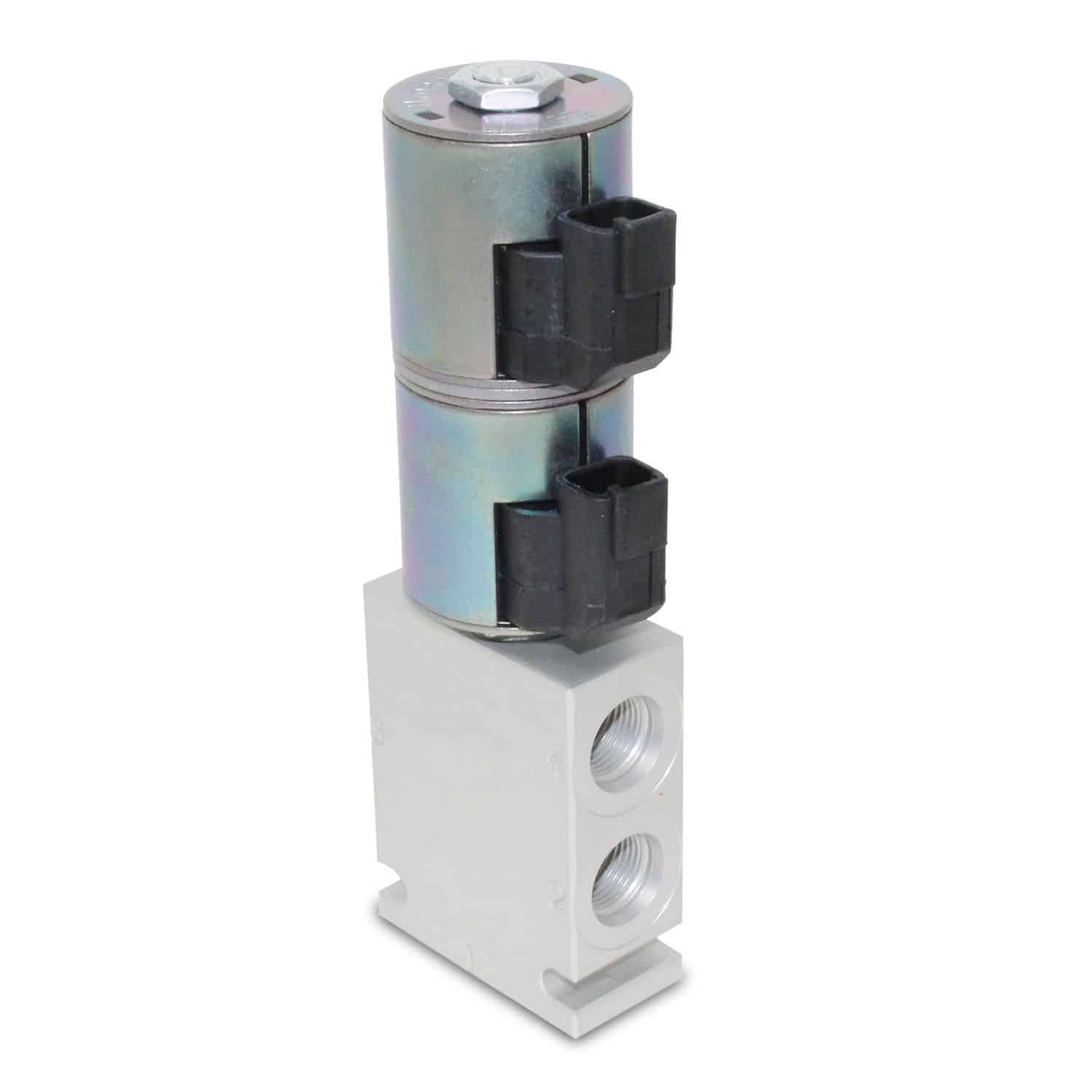

Hydraforce SV08-47A-6T-N-12ER Solenoid Operated Spool Cartridge Valve

SKU: SV08-47A-6T-N-12ER

Hydraforce Part Number: SV08-47A-6T-N-12ER

Directional Valve, 4-Way, 3-Position, Tandem Center

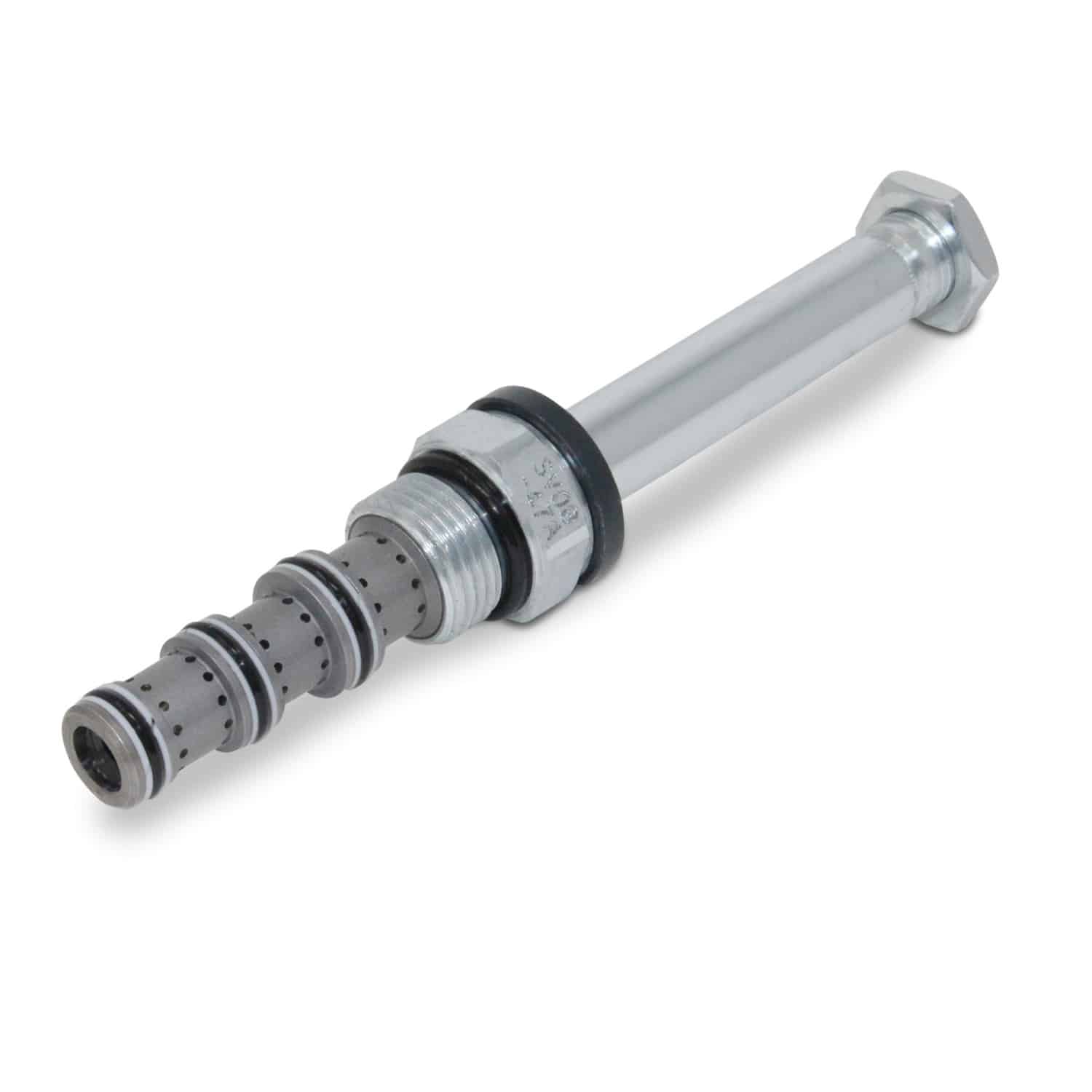

12v Solenoid-operated, 4-way, 3-position, direct-acting, spool-type, tandem center, screw-in
hydraulic cartridge valve with Deutsch DT04-2P connector.

When de-energized, the SV08-47A blocks cylinder ports, while allowing flow from 3 to 1.
When coil #1 is energized, flow is allowed from 3 to 2, and from 4 to 1.
When coil #2 is energized, flow is allowed from 3 to 4, and from 2 to 1.

In circuits where work port flows are unequal due to cylinder ratios, the higher return flow should be directed to port 2. While 1 may be fully pressurized, it is not intended for use as the valve’s inlet.

3 GPM max Flow
3000 PSI Rated
Uses 2 Hydraforce 4303612 Solenoid Valves

Solenoid Specifications:

• 12v DC
• 8.8 Ohms
• 1.4 Amps
• Connection: Duetsch Connector
• Mating Connector: Deutsch DT06-2S
• Hole Diameter: 1/2”
