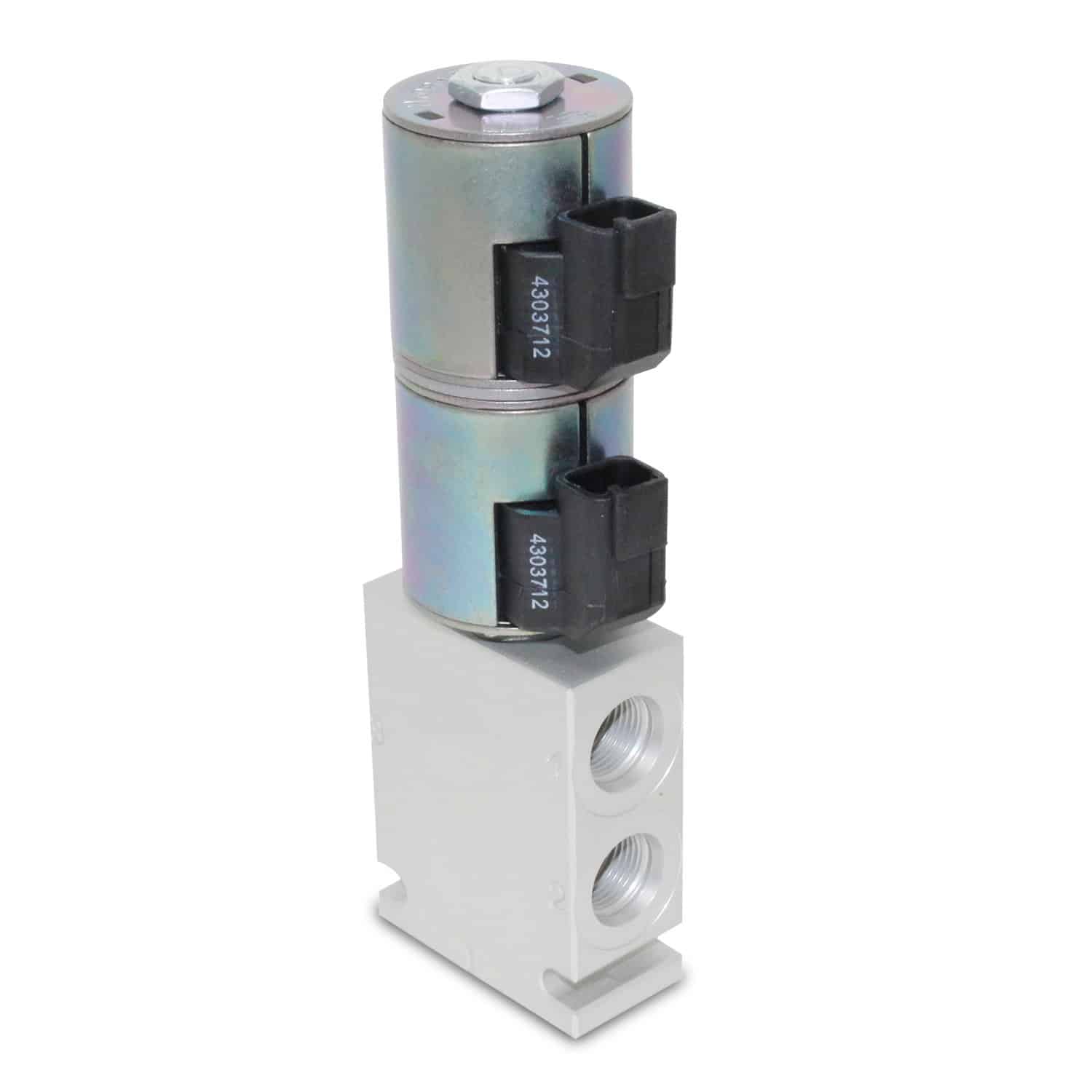

SV10-47-8T-N-12ER 1

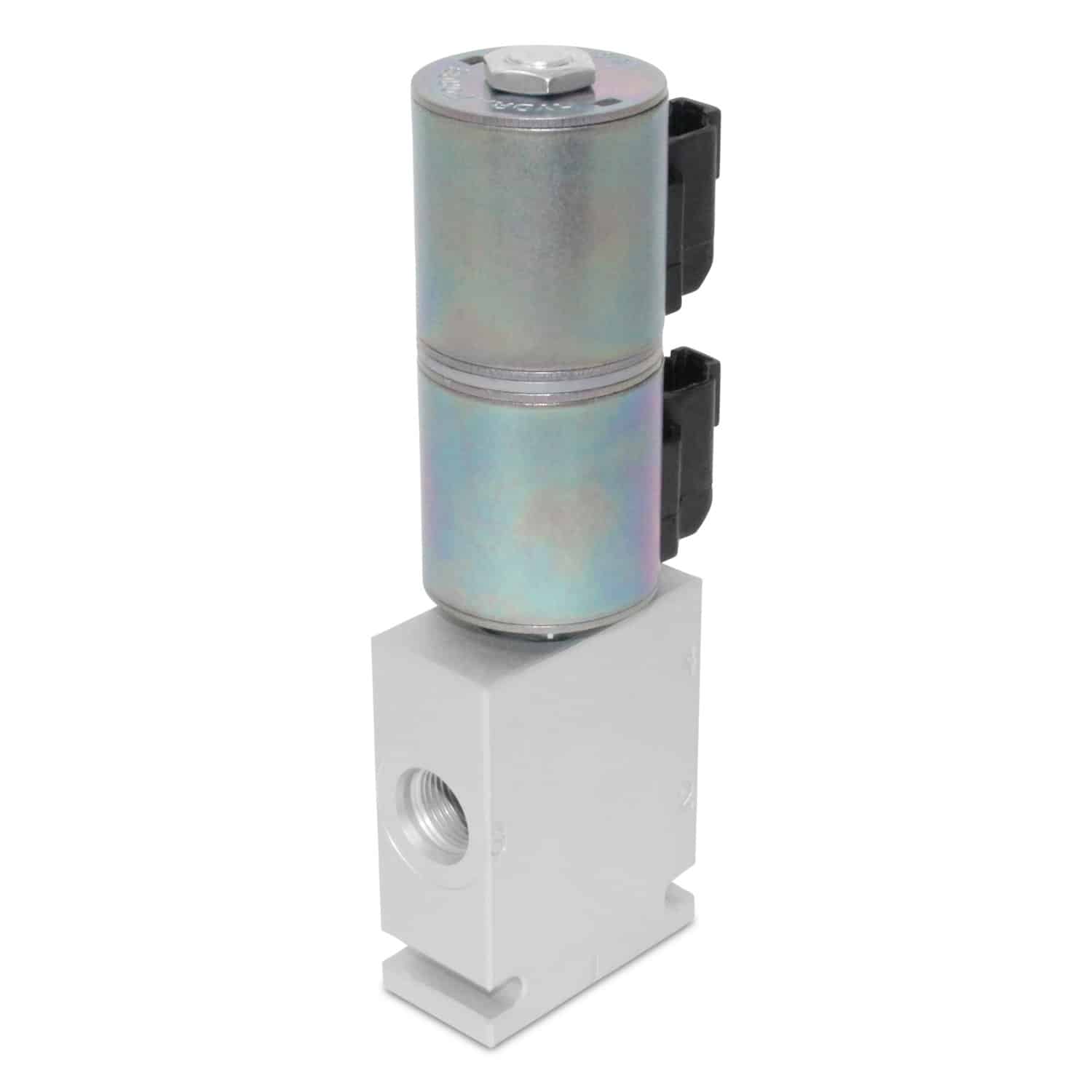

SV10-47-8T-N-12ER 2

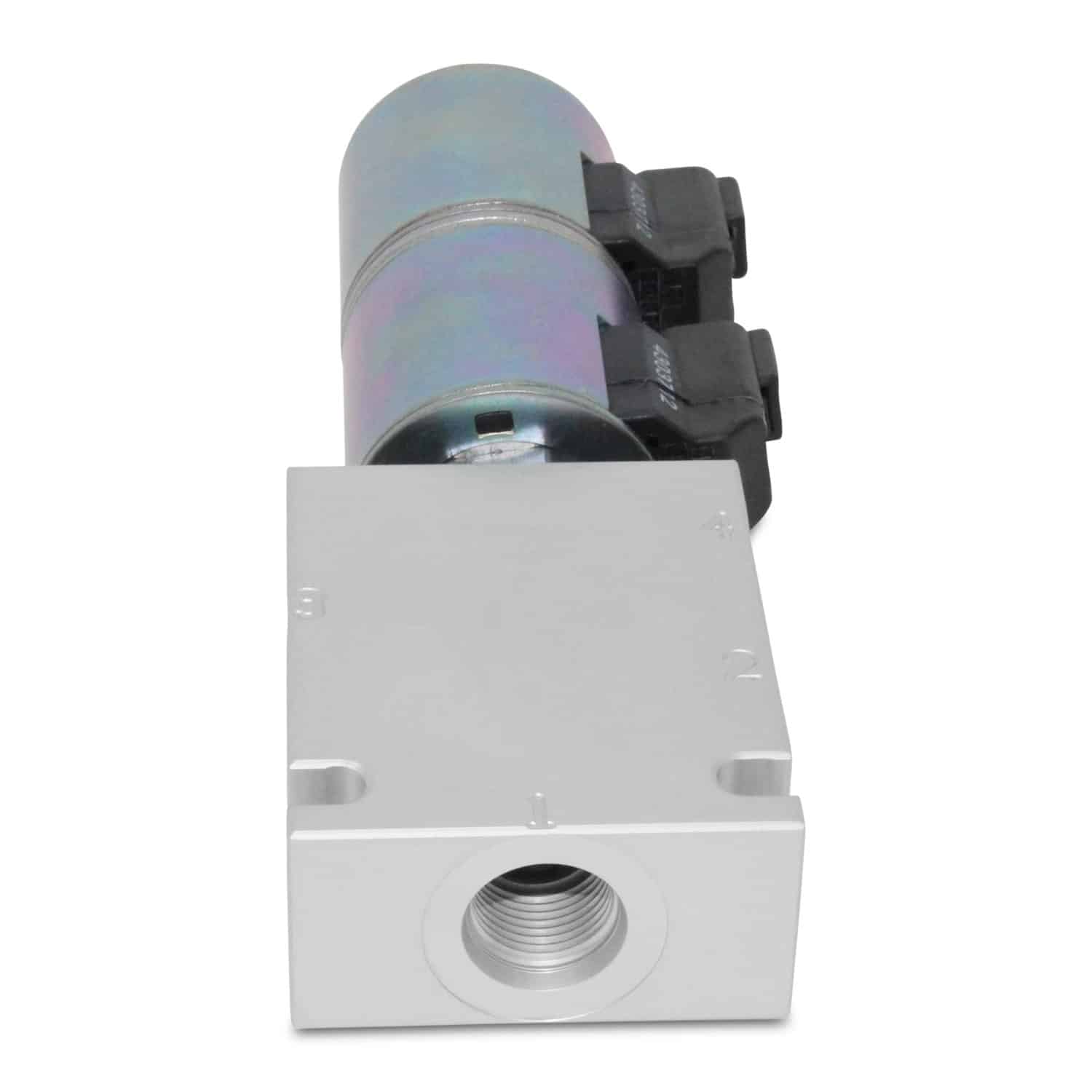

SV10-47-8T-N-12ER Bottom

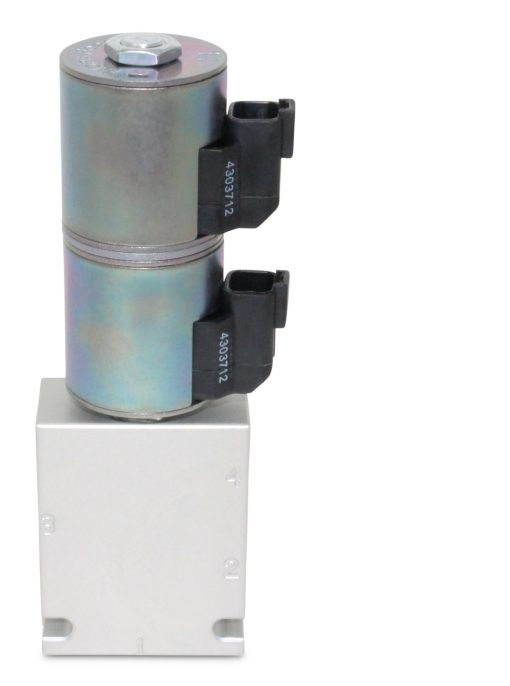

SV10-47-8T-N-12ER

SV10-47D Diagram

Hydraforce SV10-47D-8T-N-12ER Solenoid Motor Spool Control Valve - Image 6

SV10-47-8T-N-12ER 1

SV10-47-8T-N-12ER 2

SV10-47-8T-N-12ER Bottom

SV10-47-8T-N-12ER

SV10-47D Diagram

Hydraforce SV10-47D-8T-N-12ER Solenoid Motor Spool Control Valve

$229.95

FREE SHIPPING

FREE SHIPPING

Hydraforce SV10-47D-8T-N-12ER Solenoid Motor Spool Control Valve

In stock

SKU: SV10-47D-8T-N-12ER Categories: Cartridge Valves, Valve Assembly Tags: 10 Series, 12V DC, 4-Way, Cartridges, Solenoid Operated

Hydraforce Part Number: SV10-47D-0-N-00

Directional Valve, 4-Way, 3-Position, Motor Spool

Solenoid-operated, 4-way, 3-position, direct-acting, spool-type, Motor Spool, screw-in
hydraulic cartridge valve.

When de-energized, the SV10-47D blocks the inlet port while allowing flow from 2 and 4 to 1, and from 4 to 1.

When coil #1 is energized, flow is allowed from 3 to 4, and from 2 to 1

When coil #2 is energized, flow is allowed from 3 to 2, and from 4 to 1

Features:

6 GPM max Flow
3000 PSI Rated
Ports: #8 SAE (3/4″-16 O-Ring Boss) Thread

Solenoids that fit this cartridge:

Brand	Part Number	Voltage	Connection Type
Deltrol	10162-76	12v DC	Wire Leads
Hydraforce	4303512	12v DC	Metri-Pack 150 Connector
Hydraforce	4303712	12v DC	Deutsch Connector
Hydraforce	4305712	12v DC	Wire Leads
Hydraforce	4305882	12v DC	3 Prong DIN Connector
Hydraforce	4307112	12v DC	Wire Leads
Hydraforce	6351012	12v DC	2 Spade Connector
Hydraforce	6352012	12v DC	Wire Leads
Hydraforce	6356012	12v DC	3 Prong DIN Connector
Hydraforce	6359412	12v DC	Weather Pack Connector
Hydraforce	6359732	12v DC	Weather Pack Connector
Hydraforce	6359763	12v DC	Metri-Pack 150 Connector
Hydraforce	4305724	24v DC	Wire Leads
Hydraforce	6351024	24v DC	2 Spade Connector
Hydraforce	6352024	24v DC	Wire Leads
Hydraforce	6356024	24v DC	3 Prong DIN Connector
Hydraforce	6359424	24v DC	Weather pack Connector
Hydraforce	6365115	115v AC	Wire Leads

Weight	5 lbs
Dimensions	12 × 6 × 4 in
