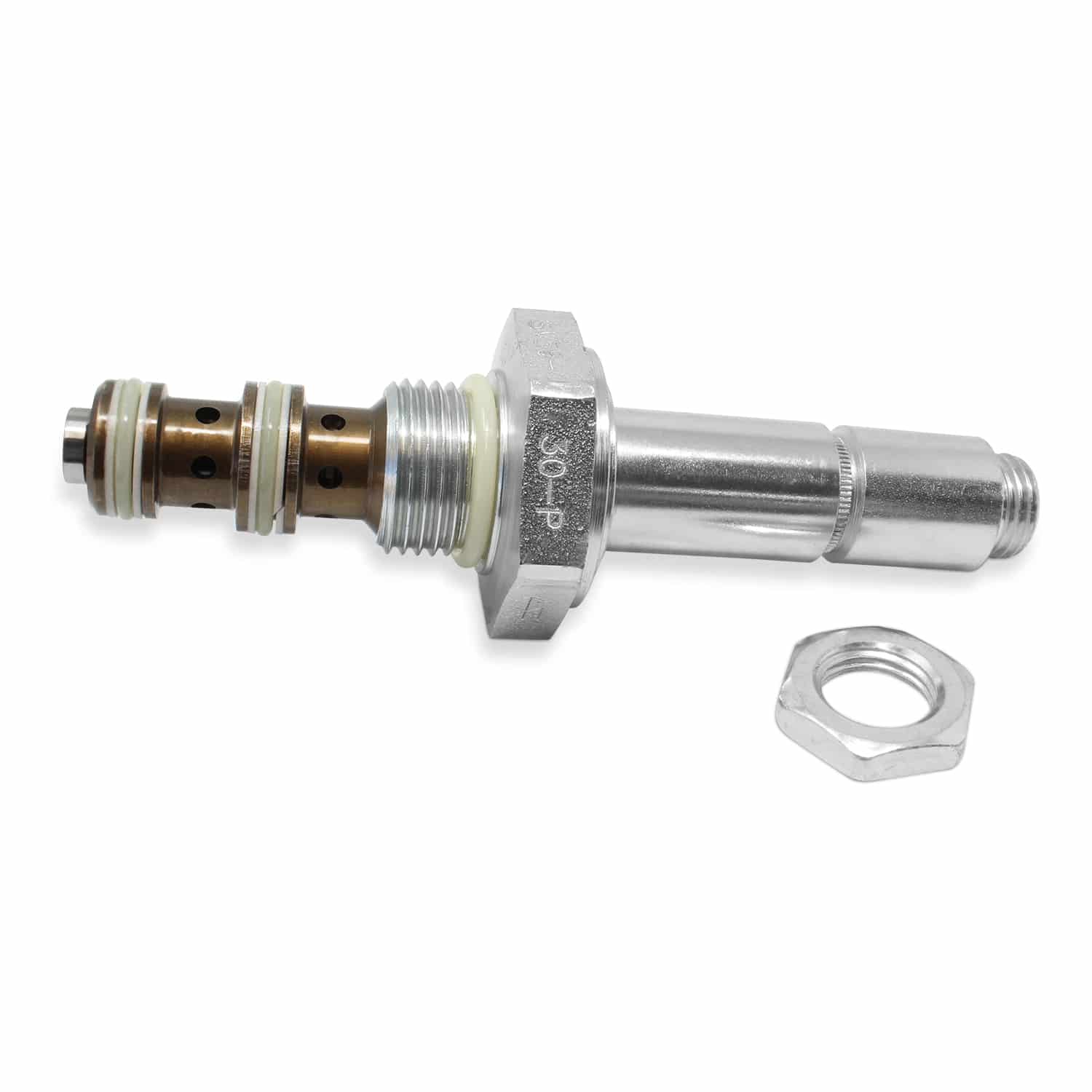

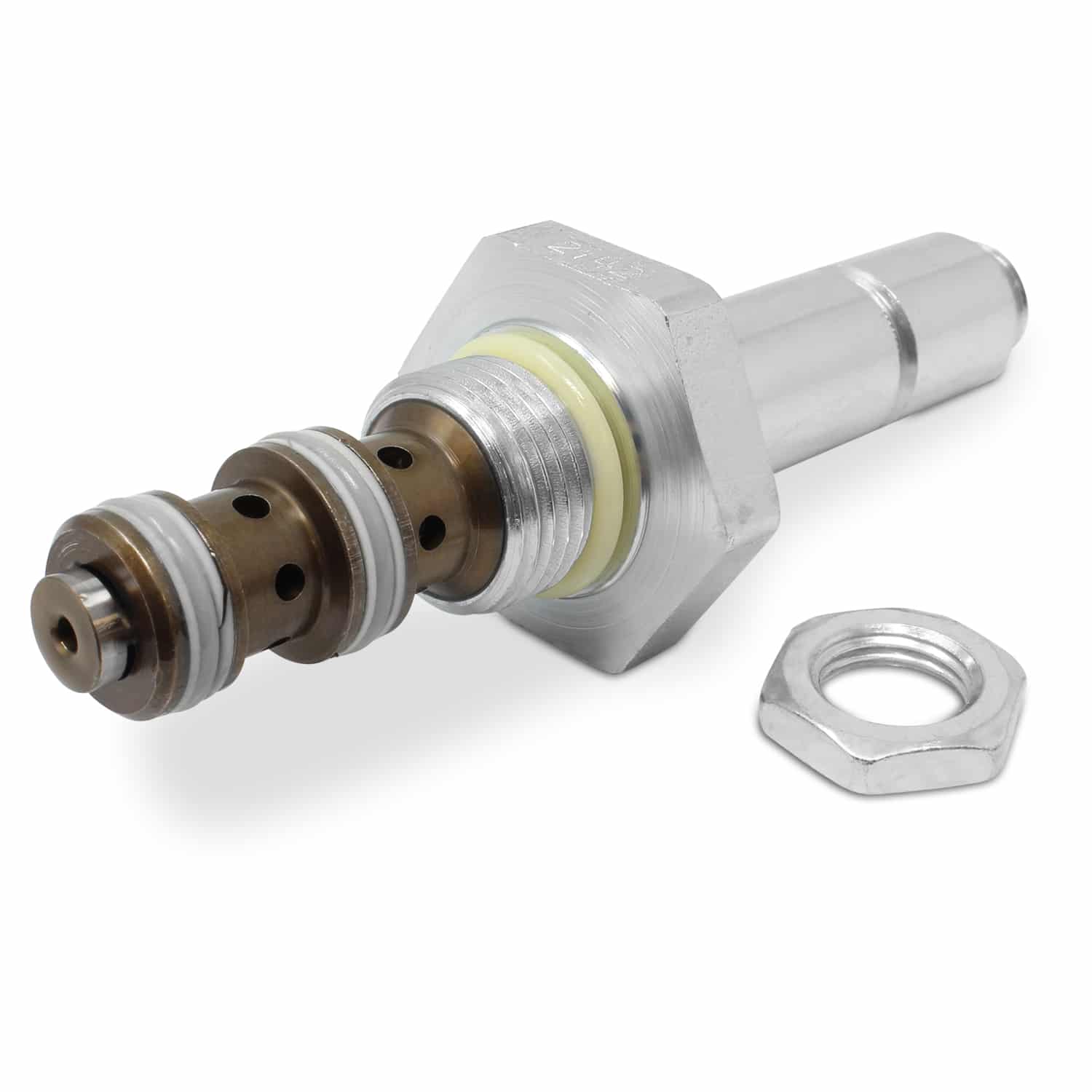

Hydraforce SV58-30-0-P-00 Solenoid Cartridge Valve Spool, 3 Port, High Pressure
SKU: SV58-30-0-P-00
Hydraforce Part Number: SV58-30-0-P-00
This is a solenoid operated, 3 way, direct acting, spool type, screw in hydraulic directional valve for high pressure circuits.
When de-energized, the SV58-30 allows flow from port 2 to port 1. While blocking flow at port 3. When energized, the cartridges spool shifts to open from port 3 to port 2 , while blocking flow out port 1, while port 1 may be fully pressurized, it is not intended to be used as the inlet.
Specifications
Maximum internal leakage:
- 131 ml/min (8 in³/min) From port 3 (de-energized) at 345 bar (5000 psi)
Operating fluid temperature:
- -40 to 100 °C (-40 to 212 °F) With buna N seals
- -26 to 204 °C (-15 to 400 °F) With viton seals
- -54 to 107 °C (-65 to 225 °F) With polyurethane seals
Cavity:
- 08-size-3-way Cavities
Orientation restriction:
- None
| Weight | 1 lbs |
|---|
