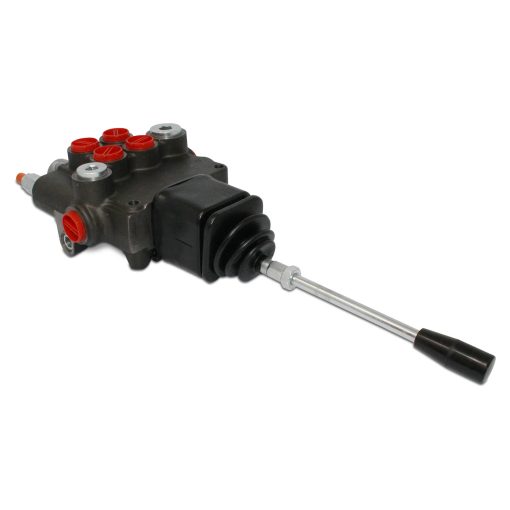

Hydraulic Directional Control Valve for Tractor Loader w/ Joystick, 2 Spool, 21 GPM

Monoblock Hydraulic Directional Control Valve for Tractor Loader, 2 Spool w/ Joystick, 21 GPM

SKU: P80G-2A1-J

This monoblock valve functions as a hydraulic directional control valve. These valves start and stop fluid flow into hydraulic cylinders or hydraulic motors.

Common Uses:

• Operate hydraulic cylinders (Double-Acting or Single-Acting)
• Operate hydraulic motors (“D” Spool Required)
• Install rear remotes on a tractor

Benefits:

• 2 Spool valve with joystick and compact design allows for installations in tight areas
• All spools are standard double acting with spring return to neutral position which are ideal for double acting cylinders
• Used for open center systems (Pump to Tank Flow) – closed center option available
• Anti-drop load checks on each spool
• Precision ground and hard chrome-plated spools assure a long life
• High-tensile strength cast iron monoblock construction
• SAE O-Ring ports ensure solid seal and prevent blockages
• Capable of closed center or Power Beyond (conversion plug required)
• Vertical or horizontal handle mount
• Adjustable Relief Valve Range:  1500 to 3625 PSI
• Preset Pressure Relief: 2610 PSI
• Used as motor or single-acting spool possible (#10 SAE port plug required)

  Features:

• Max Operating Pressure: P = 3625 PSI, T = 725 PSI, A & B = 4350 PSI
• Flow Rating: 21 GPM (80 l/min)
• A & B Work Ports:  #10 SAE O-Ring (7/8”-14) Thread
• Inlet Port: #10 SAE O-Ring (7/8”-14) Thread
• Outlet Port: #12 SAE O-Ring (1-1/16”-12) Thread
• N Port: #12 (3/4 – 14) G Thread (British Pipe Thread Parallel)
• 3 – 5/16” Mounting Holes
• Made in Europe

Will this valve work for my application?

You’ll need to answer the following questions:

1. Is the flow through this valve less than 21 GPM? If installing on a tractor, please check tractor-data.com, it will say under the hydraulics – “Pump Flow” – of the data sheet. The GPM flow may be printed on the pump itself.
2. Do you have an open-center hydraulic system? If you’re installing this on a tractor, please check tractor-data.com. The website will say under the hydraulics of the data sheet if it is. These valves are setup for use on open-center hydraulic systems. If you do have a closed-center system, you’ll need to get the closed center adapter plug. NOTE: None of our valves have load-sensing capabilities.

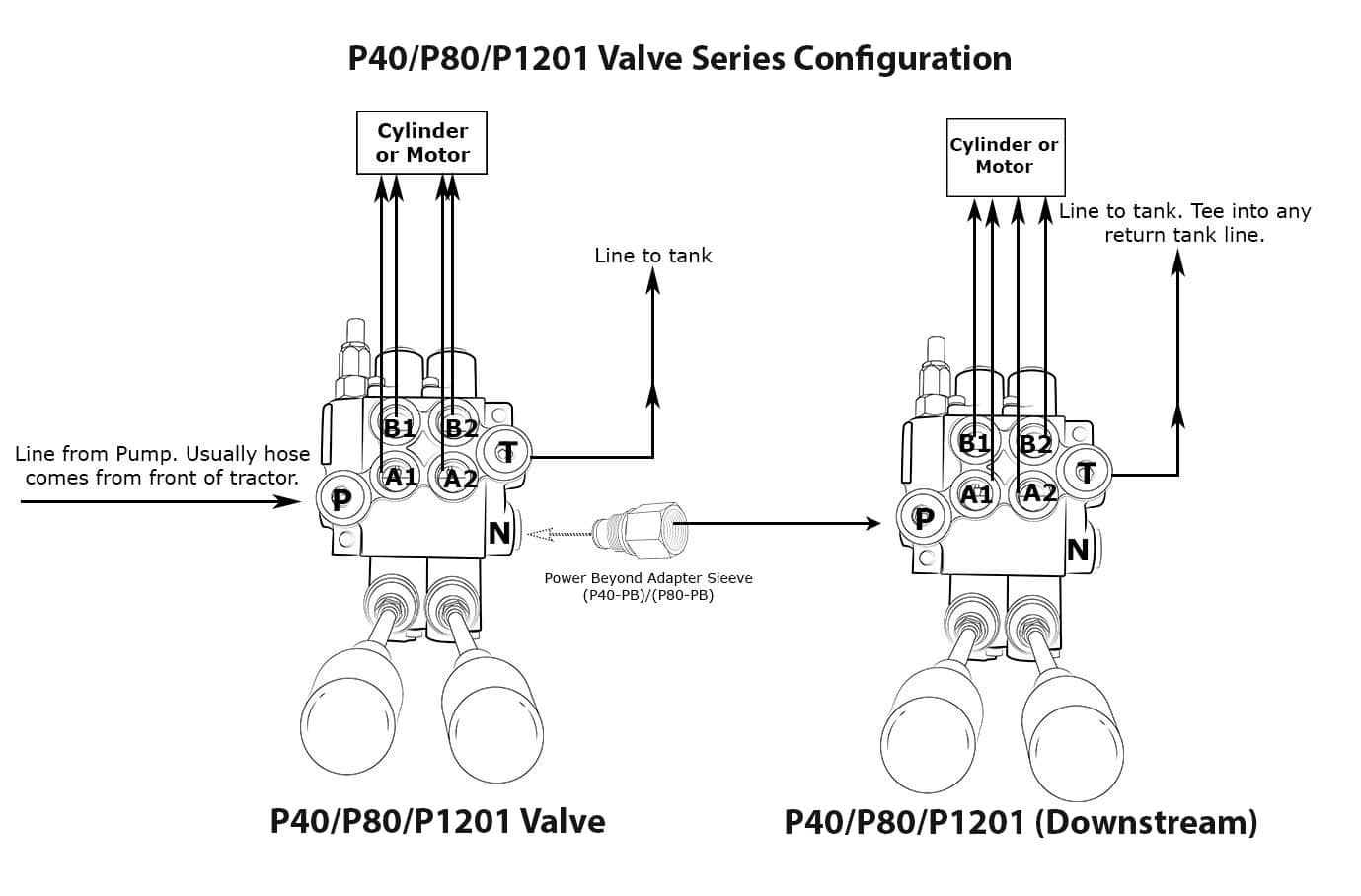

3. Do you have other valves downstream from this valve (Examples include: Other Control Valves, Rear Remote Valve, Backhoe Valve, 3-Point Valve)? If so, you’ll need the power beyond adapter sleeve to provide pressure and flow to those valves. Note: This is only needed on open-center hydraulic systems. If you have a closed-center system, you will tee into a pressure line to connect other valves.
4. Are you operating a hydraulic cylinder or a hydraulic motor? If you’re operating a hydraulic cylinder, you’ll need to get “A” spools for double acting cylinders. For operations with a hydraulic motor, you’ll need “D” spools for motor control. Note: “D” spools cannot be used for operating hydraulic cylinders and “A” spools cannot be used to operate hydraulic motors.

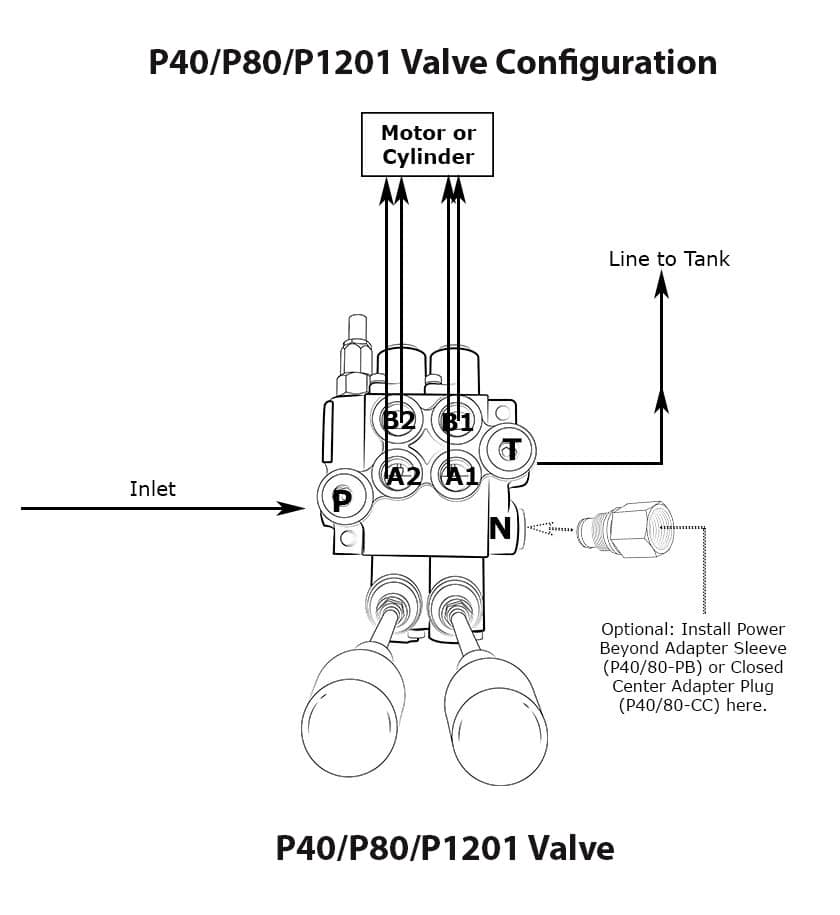

How do I connect this valve to my hydraulic system?

This valve uses a pressure line (Inlet), tank line (outlet), work ports (A/B ports that go to hydraulic cylinder or motor), and optional power beyond port (N Port, used to connect valves downstream). Some common examples of connecting this valve are shown below, however, it is possible to connect it in different configurations than shown.
