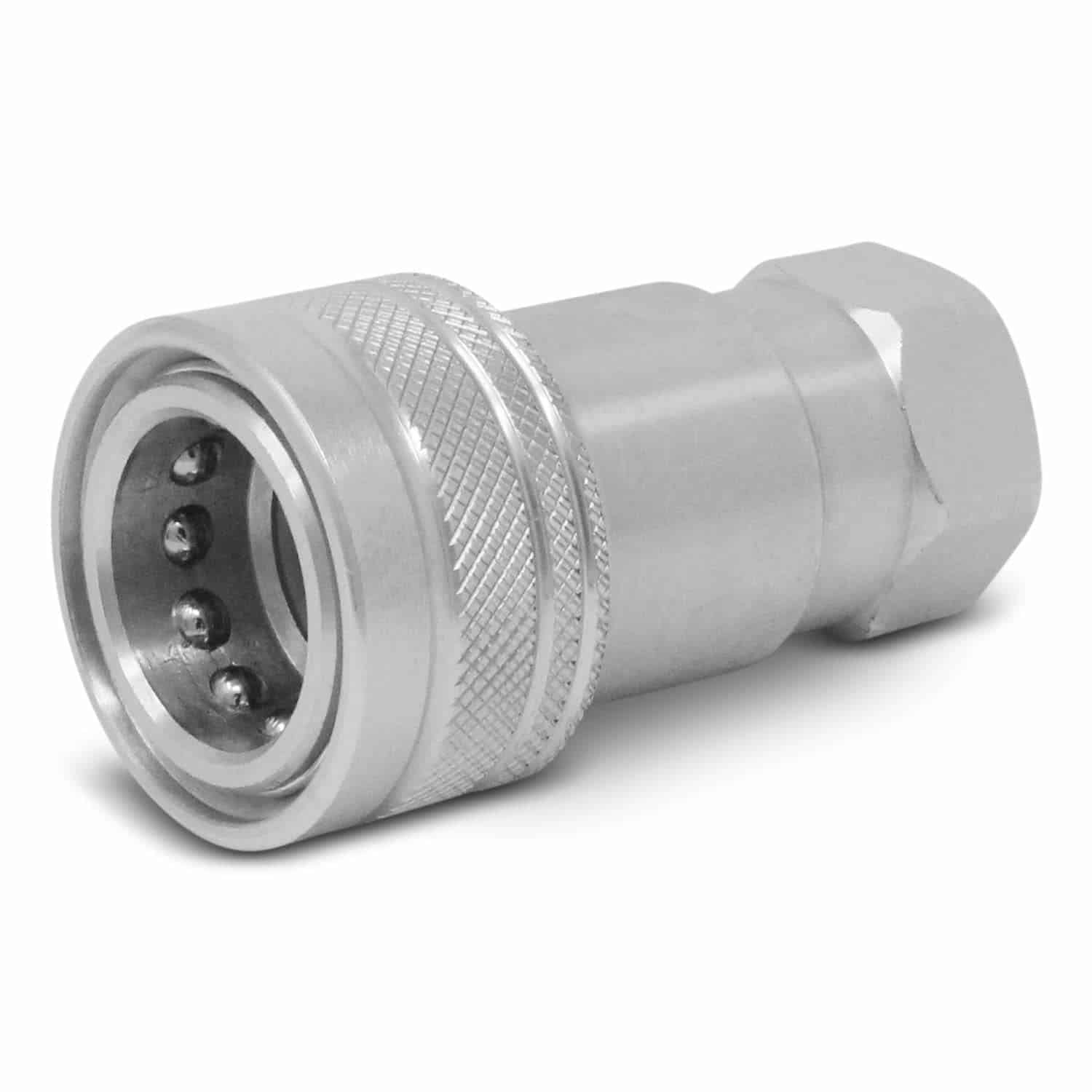

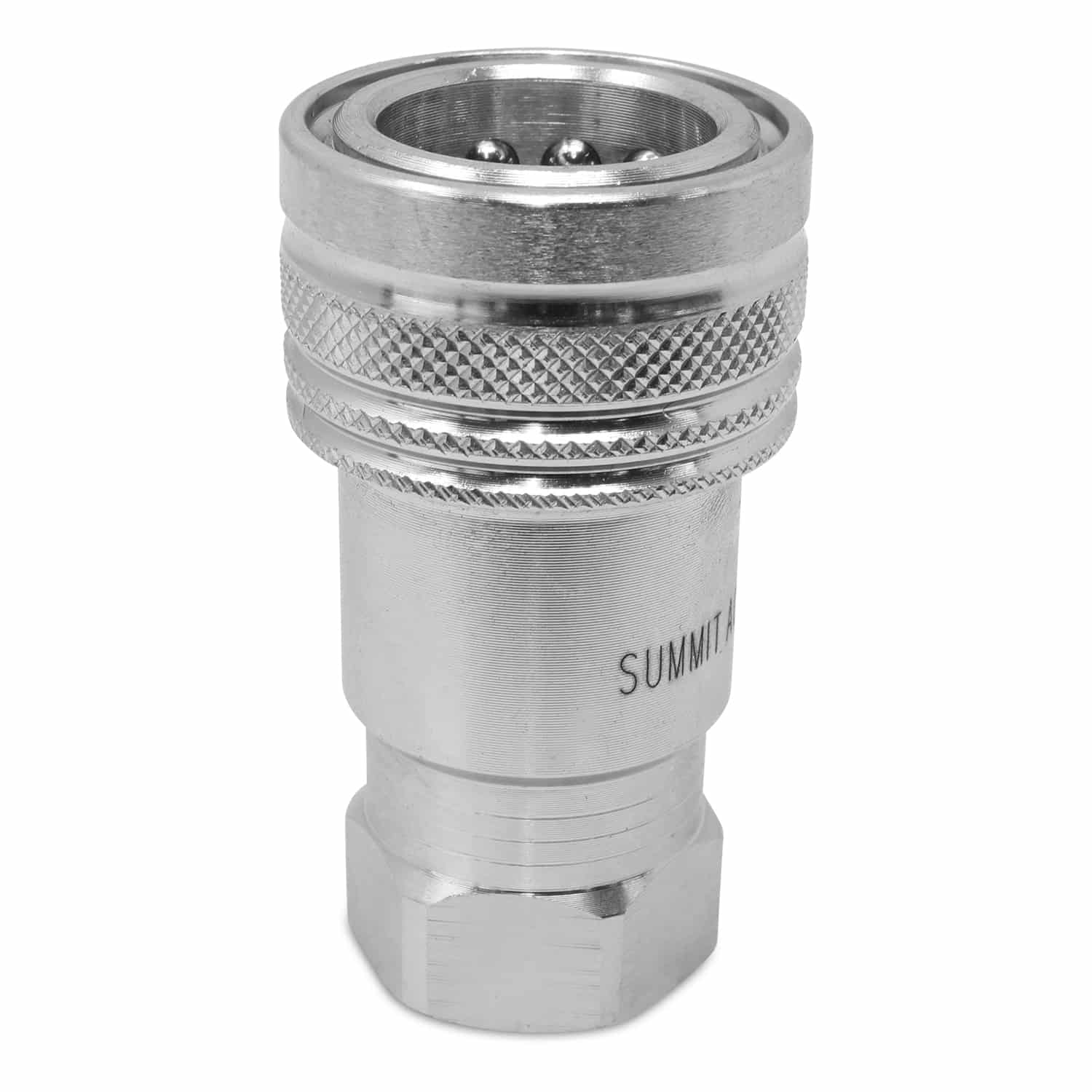

1/2″ Ag Hydraulic Quick Connect Female Coupler, Poppet Valve, #10 SAE (7/8-14 Female ORB Thread) Thread
$12.95
Free Shipping
5/8″ SAE (7/8-14 UNF Female ORB Thread) also know as Dash -10, 1/2″ Body Agriculture Quick Connect Female Coupler, Poppet Style
In stock
| Quantity | Per Item Price |
|---|---|
| 2-3 | $11.91 |
| 4-9 | $11.66 |
| 10+ | $11.01 |
SKU: AG12F-10S
This series of couplers are the most common quick connect couplers used in the agriculture, construction and logging industries. They are interchangeable with all 1/2″ body ISO 5675 series / Pioneer style couplers including ball seat valve, poppet seal, and 1/2″ Body ISO 7241-A couplers.

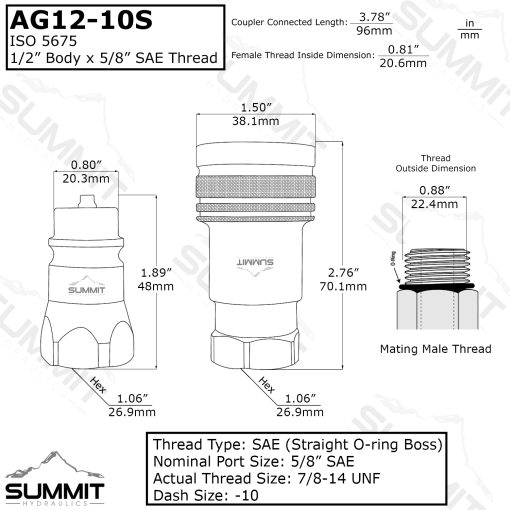

Body Size: 1/2″ Body
Thread Size: 5/8″ SAE (7/8-14 Female ORB Thread) also know as Dash -10
This 1/2″ female coupler connects to its male equivalent. We also carry a complete set, including a single male and single female coupler.
Features:
- Nominal Flow Rate: 12 GPM
- Max Flow Rate: 24 GPM
- 3600 PSI Rating
- Hardened Steel Plugs
- 23,000 PSI Burst Rating (Coupled)
Interchangeable with:
| Manufacturer | Female |
| SUMMIT | AG12F-10S |
| Parker 4000 Series | 4050-16P |
| Safeway S20 Series | S25-16P |
| Faster NV/NS Series | NV 12-58SAE F |
| Dixon AG Series | 4AGOF5-PV |
Compatible With:
- Bobcat (2001 or older): 543, 534B, 631, 632, 641, 642, 642B, 643, 732, 741, 742, 743, 743B, 843, 843B
What’s Included:
- Female Coupler
| Weight | 0.55 lbs |
|---|---|
| Dimensions | 4 × 3 × 2 in |
| ISO Standard | |
| Style | Agricultural |
| ISO Body Size | |
| Body Size | 1/2" |
| Thread Type | |
| Thread Size | #10 |
| Body Material | Hardened Steel |
| Locking Type | Sleeve |
| Coupling |
