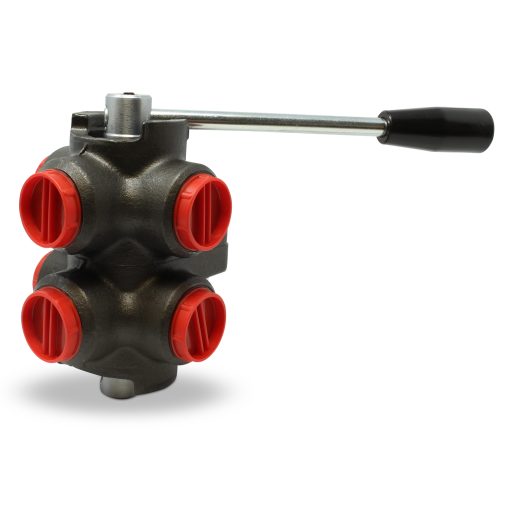

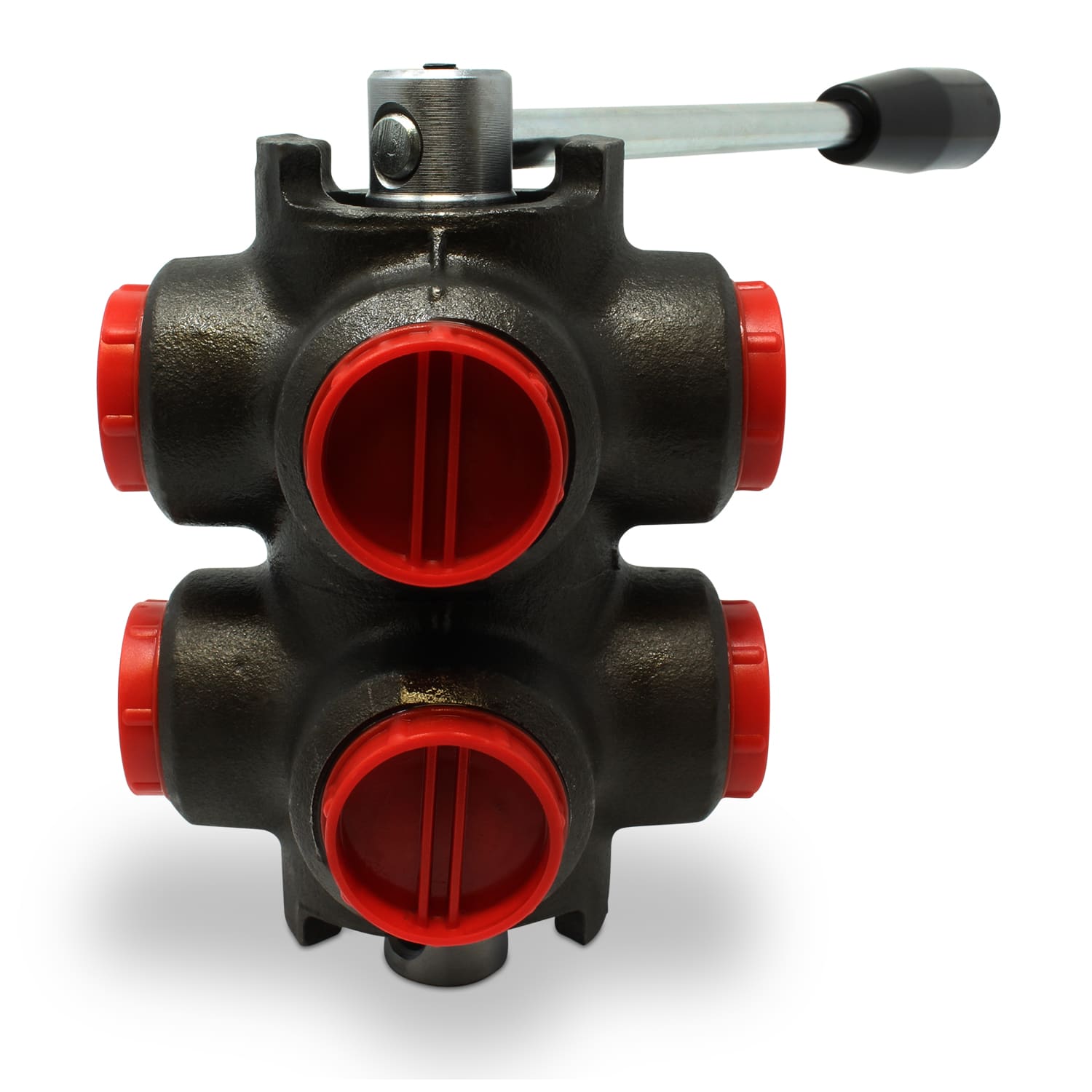

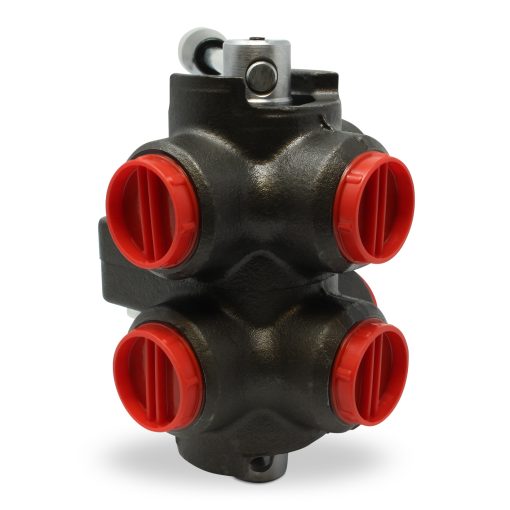

Hydraulic Rotary Diverter Valve, 6 Port, 16 GPM, #8 SAE Ports

SKU: RDV6-08S

The Hydraulic Rotary Diverter Valve, 6 Port, 16 GPM, #8 SAE Ports uses a rotor that rotates in the valve body to choose the direction of pressurized fluid flows. When the rotor is in position, the input and output ports are connected differently. This allows the fluid to start, stop and change direction.

This manually operated open center valve accommodates up to 16 GPM of flow and a max pressure of 4600 PSI. With a cast iron construction and a hard chrome plated rotor, you can be assured that this diverter valve will withstand the rigors of your hydraulic application. Also, the valve includes #8 SAE Thread Ports, which measure 3/4″-16.

• 3 Way, 6 Port Flow Diverter Valve
• Nominal Flow: 16 GPM
• Cast Iron Construction with hard chrome plated rotor
• Ports: #8 SAE (3/4”-16) Thread
• Max Pressure: 4600 PSI
• Open Center Valve

A version of this valve with #12 SAE Ports can also be purchased.
