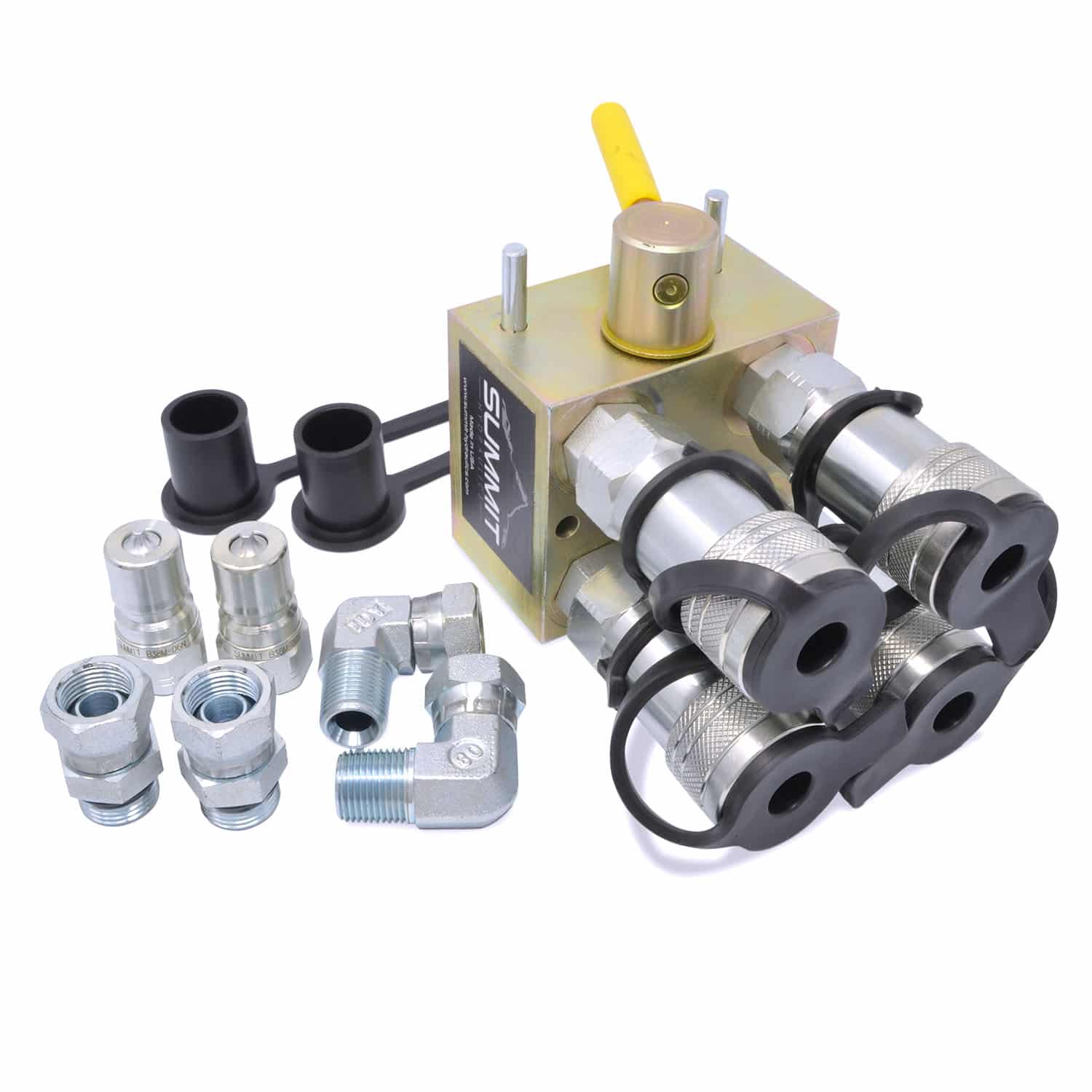

Manual Hydraulic Multiplier Diverter Valve Kit w/ 3/8″ ISO B Couplers & Fittings

SKU: HM1-08-B6N

Manual Hydraulic Diverter Valve Kit for John Deere and Kubota tractors that use 3/8″ ISO 7241-B Couplers.

This kit allows you to easily add another hydraulic circuit/function to your tractor without the cost of expensive factory add-ons.

Features:

• Handle rotates 45 deg to switch between Circuit 1 and Circuit 2
• Works with Double or Single Acting Cylinders
• Can be used on Open, Closed or FPC hydraulic systems
• Capacity for up to 20 GPM Hydraulic Flow & 3000 PSI
• 1/2″ Ports with #8 SAE (3/4″-16 O-Ring Boss) Threads
• Rear ports are 1-1/2″ on center
• 2 Mounting Holes are 1/4″ and are 2-3/4″ on center
• Block Dimensions: 3-1/2″ L x 3″ H x 2″ W
• MADE IN USA

Couplers included with this kit are compatible with John Deere and Kubota tractors that use 3/8″ Body ISO 7241-B Couplers.

Some of those tractors include:

• JD 790
• JD 990
• Kubota L2501
• Kubota L3301
• Kubota L3600
• Kubota L3800
• Kubota L3901

What’s Included:

• Manual Hydraulic Multiplier Valve
• 4 – 3/8″ Body Female ISO 7241-B Quick Connect Couplers with adapters
• 4 – Female Dust Caps
• 2 – Male Dust Caps
• 2 – 90 Deg 3/8″ NPT Female Elbows
• 2 – 3/8″ NPT Female Swivel Adapter Fittings
• 60 Day Returns
• 1 Year Guarantee
