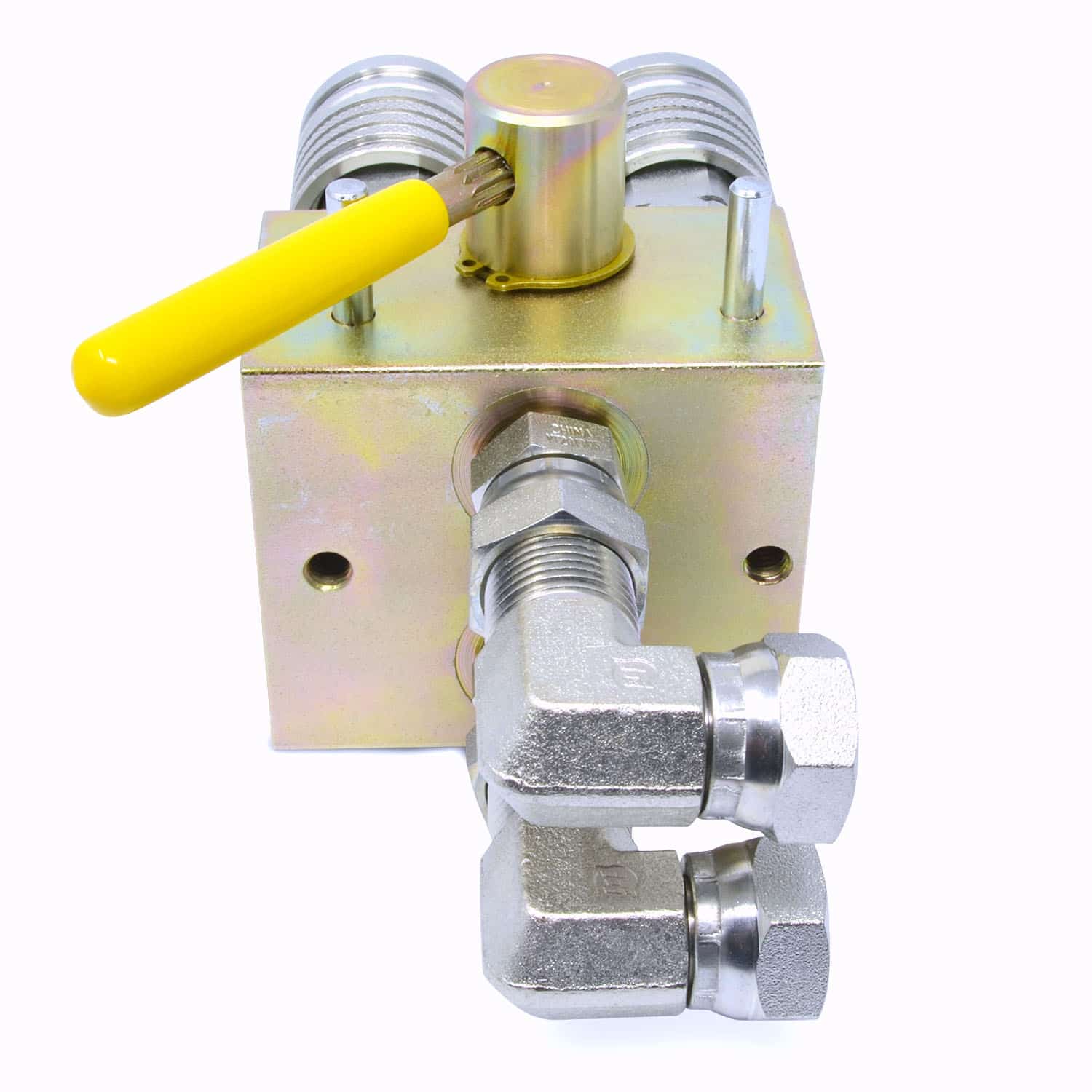

Manual Hydraulic Multiplier, SCV Splitter / Diverter Valve Kit with Couplers, NPT

SKU: HM1-08-CF1

Manual Hydraulic Multiplier Kit with Couplers and 1/2″ Adapter Fittings.

Features:

• Handle rotates 45 deg to switch between Circuit 1 and Circuit 2
• Works with Double or Single Acting Cylinders
• Can be used on Open, Closed or FPC hydraulic systems
• Capacity for up to 20 GPM Hydraulic Flow & 3000 PSI
• Ports are 3/4-16 ORB (-08) Thread
• Rear ports are 1-1/2″ on center
• 2 Mounting Holes are 1/4″ and are 2-3/4″ on center
• Block Dimensions: 3-1/2″ L x 3″ H x 2″ W

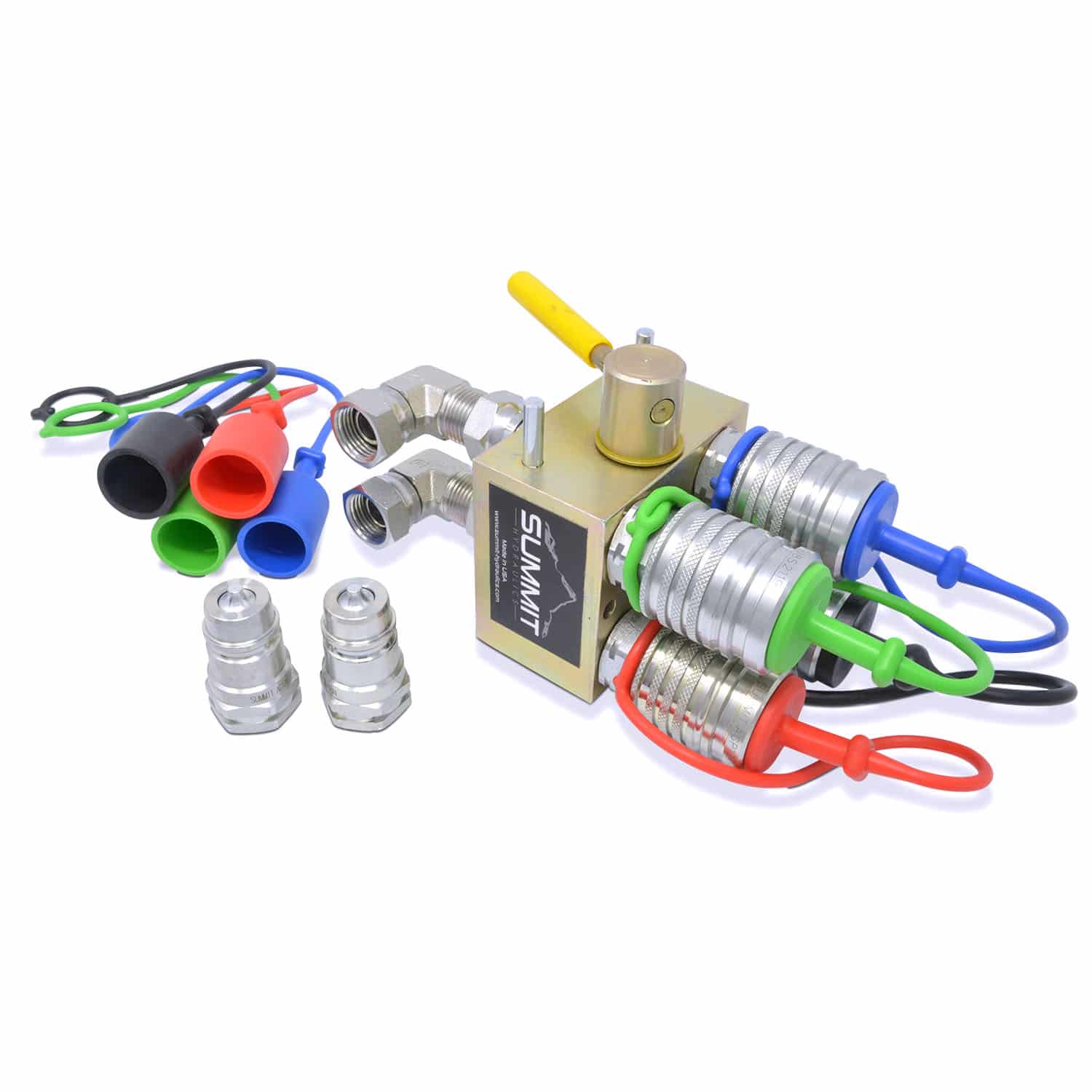

What’s Included:

• Manual Hydraulic Multiplier Valve
• 4 – ISO Female Quick Connect 1/2″ Body ISO/Pioneer Style Couplers
• 4 – ISO Female Dust Caps
• 4 – ISO Male Dust Caps
• 2 – 90 Deg 1/2″ NPT Threaded Adapter Fittings
• 60 Day Returns
• 1 Year Guarantee

 MADE IN USA
