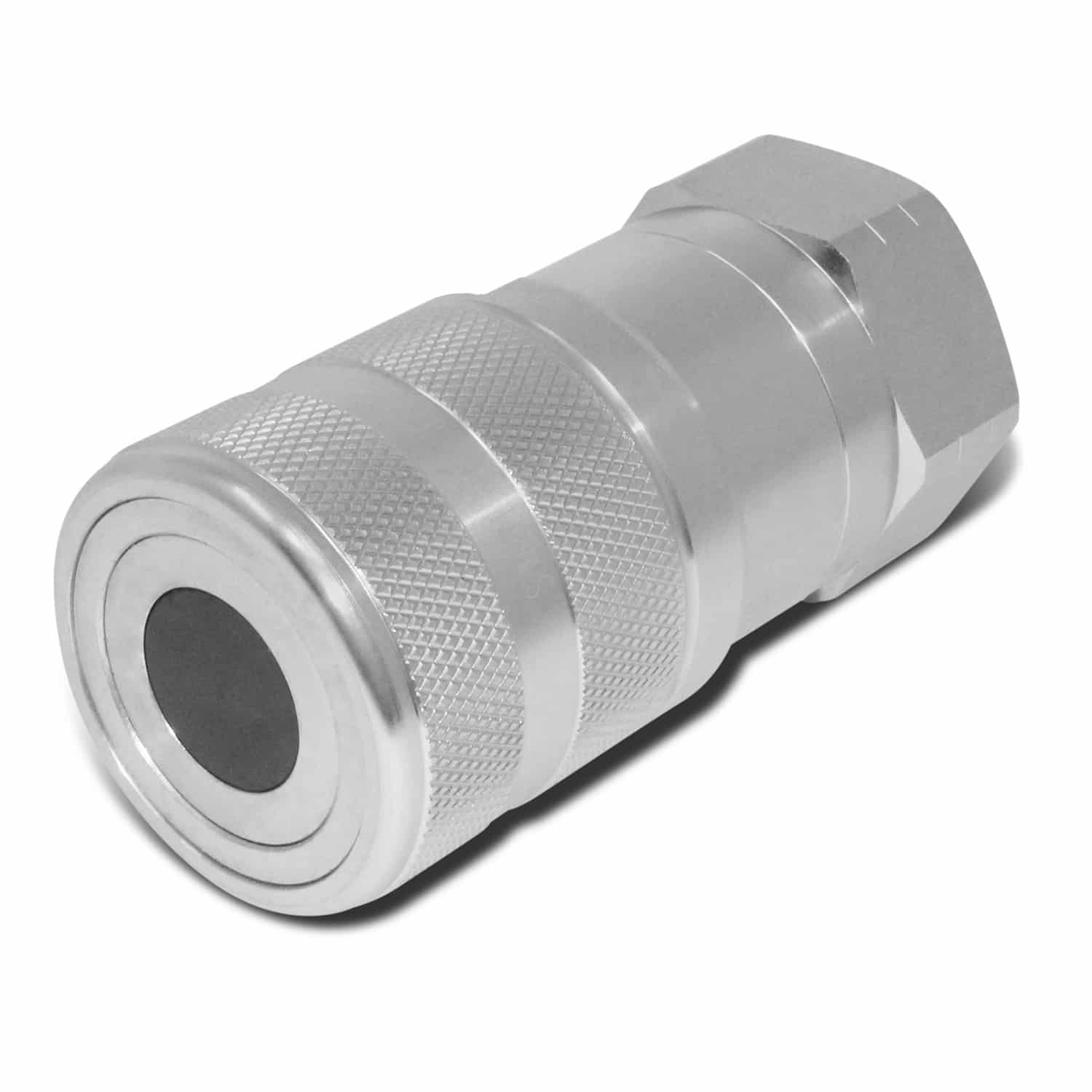

SKU: FF1F-16S
Size: 1″ Body with 1″ SAE
Benefits:
- Flush face valve design minimizes fluid loss and air inclusion
- Zinc-nickel plating provides superior corrosion resistance
- Hardened steel construction with hardened sleeves
- Allows for minimal pressure drops
- Locking sleeve helps prevent accidental disconnects
- Nipple seal resists blow-outs
- Interchangeable with other ISO 16028 standard couplings
Features:
- 5,076 PSI rating
- 74 GPM Max Flow Rate
- 50 GPM Nominal Flow Rate
- Buna-N Seals with Teflon backup ring can operate up to 250° F
- Female Face Diameter: 2.17” (55mm)
- Female Length: 4.31” (109mm)
- Hex: 1.97” (50mm)
Interchangeable with:
| Manufacturer | Female |
| SUMMIT | FF1F-16S |
| Parker FE Series | FEM-1001-16FO |
| Faster FFH Series | FFH16 1SAE F |
| Eaton Aeroquip FD89 | FD89-1005-16-12 |
| Snap Tite 74 Series | 74C16-16EF |
| Stucchi FIRG Series | 801304038 |
| DNP PLT4 Series | FF-HPG-16-16C-SAE |
Kit Includes:
- 1 Female Coupler
- 1 Female Dust Cap
| Weight | 2.91 lbs |
|---|---|
| Style | Flat Face |
| Body Size | 1" |
| Thread Type | |
| Thread Size | 1" |
| Body Material | Hardened Steel |
| Locking Type | Ball |
