SKU: BB1-16N-SET
Size: 1″ Body, 1″ NPT Thread, Poppet Valve

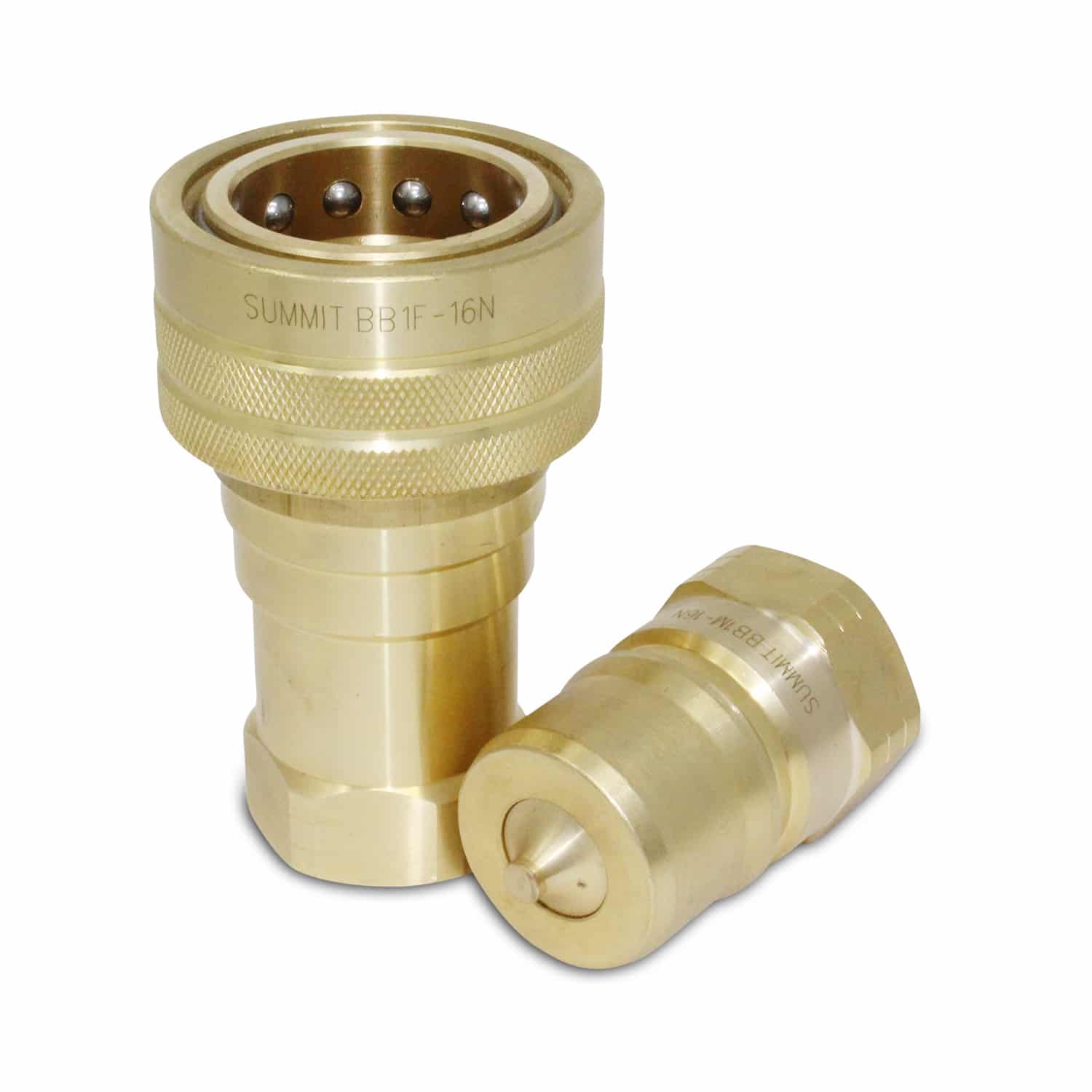

This 1″ coupler set consists of a male and female quick coupler.
Features:
- Body Material: Brass material for corrosion resistance
- Spring Material: 304 Stainless Steel
- Locking Ball Material: 316 Stainless Steel
- Self Sealing Poppet Valve Seals Excellent Under High and Low Pressures
- Interchangeable with all ISO 7241 B series couplings
- 2,000 PSI Rating
- Nominal Flow Rate: 50 GPM
- Max Flow Rate: 68.68 GPM
- Seal Type: Viton FKM
- Temperature Range: -15°F to +400°F
- Female Face Diameter 2.52” (64mm)
- Female Length: 4.11” (104.4mm)
- Hex: 1.60” (40.6mm)
- Male Face Diameter 1.46” (65mm)
- Male Length: 2.90” (105m)
Applications:
- Hydraulic fluids
- Water
- Diesel / Petroleum
Interchangeable with:
| Manufacturer | Male | Female |
| SUMMIT | BB1M-16N | BB1F-16N |
| Parker 60 Series | BH8-61 | BH8-60 |
| Safeway BS10 Series | BS101-8 | BS105-8 |
| Faster HNV Brass | HNV 1 NPT M 5V | HNV 1 NPT F 5V |
| Snap-Tite 72 Series | B72N16-16F | B72C16-16F |
| Stucchi IRBO Series | M IRBO100 NPT 804501111 |
F IRBO100 NPT 804501110 |
| Dixon H-Series | H8F8-B | 8HF8-B |
| Eaton HK Series | B8KP36 | B8HP36 |
| DNP HNV Series | HNV-B-16-16-N-NPT | HNV-B-16-16-C-NPT |
What’s Included:
- Female Coupler
- Male Coupler
https://staging.summit-hydraulics.com/product/iso-7241-b-quick-couplers-dust-cap-set/
| Weight | 10 lbs |
|---|---|
| Dimensions | 7 × 6 × 5 in |
| Style | ISO 7241-B |
| Body Size | 1" |
| Thread Type | |
| Thread Size | 1" |
| Body Material | Brass |
| Locking Type | Sleeve |
