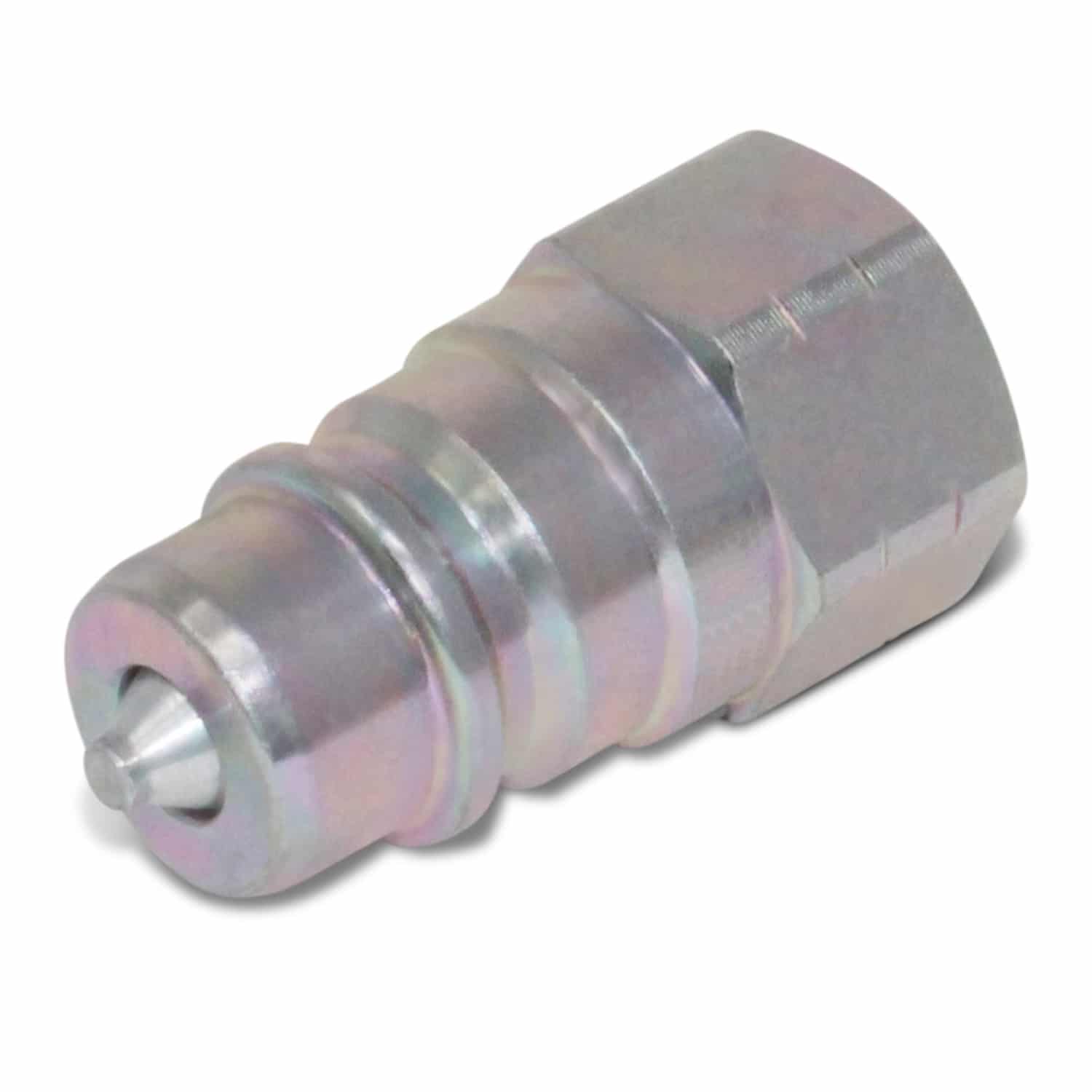

1/4” Ag Hydraulic Quick Connect Male Coupler, #6 SAE (9/16″-18 ORB) Thread

SKU: AG14M-06S

This series of couplers are the most common quick connect couplers used in the agriculture, construction and logging industries. They are interchangeable with all ISO 5675 series including ball seat valve, poppet seal, push-pull couplings.

ISO Body Size: 1/4”

Port Thread: #6 SAE (9/16″-18 ORB) Thread

Benefits:

• General purpose
• Agriculture poppet type
• Radial locking balls
• Manual connect and disconnect
• Easy single-handed push-connect design
• Nipple seal resists blow-outs
• Interchangeable with other ISO 5675 standard couplings

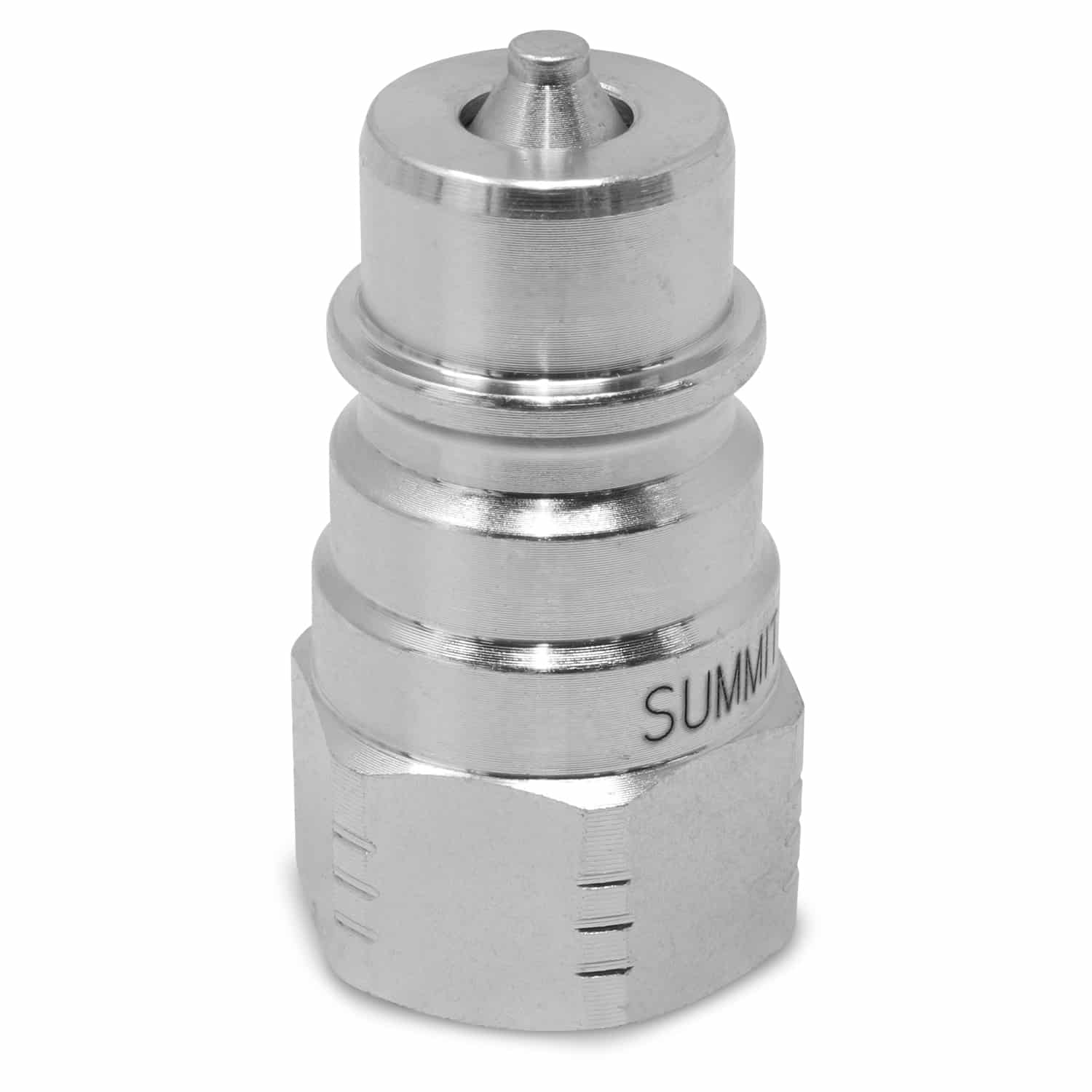

This 1/4″ poppet style male coupler connects to its female equivalent. We also carry a complete set, including a single male and single female coupler.

Features:

• 5100 PSI Rating
• 6.34 GPM Max Flow
• 3.2 GPM Nominal Flow Rate

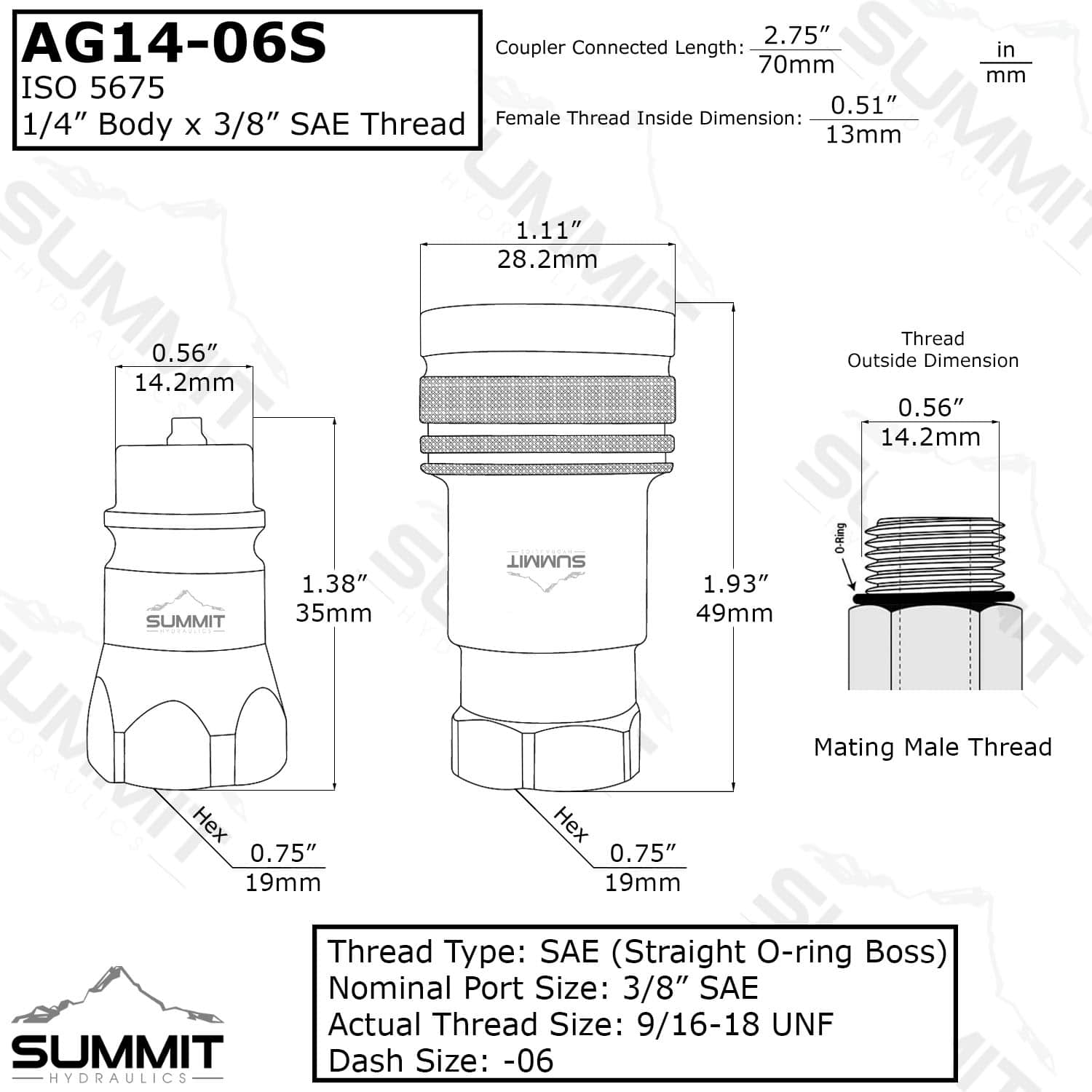

• Male Face Diameter: 1.026” (26mm)
• Male Length: 1.38” (35mm)
• Hex: .751” (19mm)

Interchangeable with:

Kit Includes:

• 1 Male Coupler
