SKU: AG12-08N-SET
This series of couplers are the most common quick connect couplers used in the agriculture, construction and logging industries. They are interchangeable with all 1/2″ body ISO 5675 series / Pioneer style couplers including ball seat valve, poppet seal, and 1/2″ Body ISO 7241-A couplers.

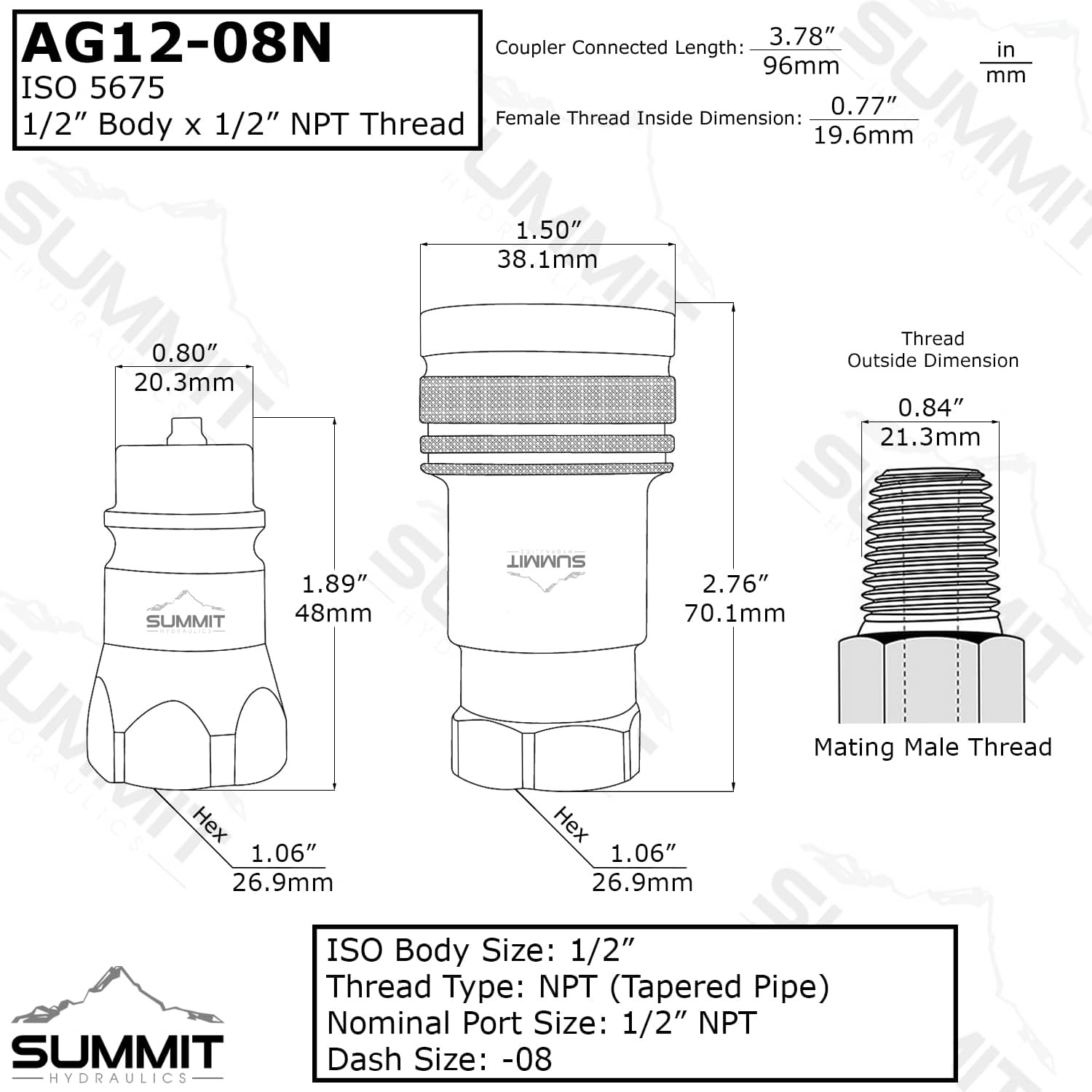

Body Size: 1/2″ Body
Thread Size: 1/2″ NPT, Poppet Valve

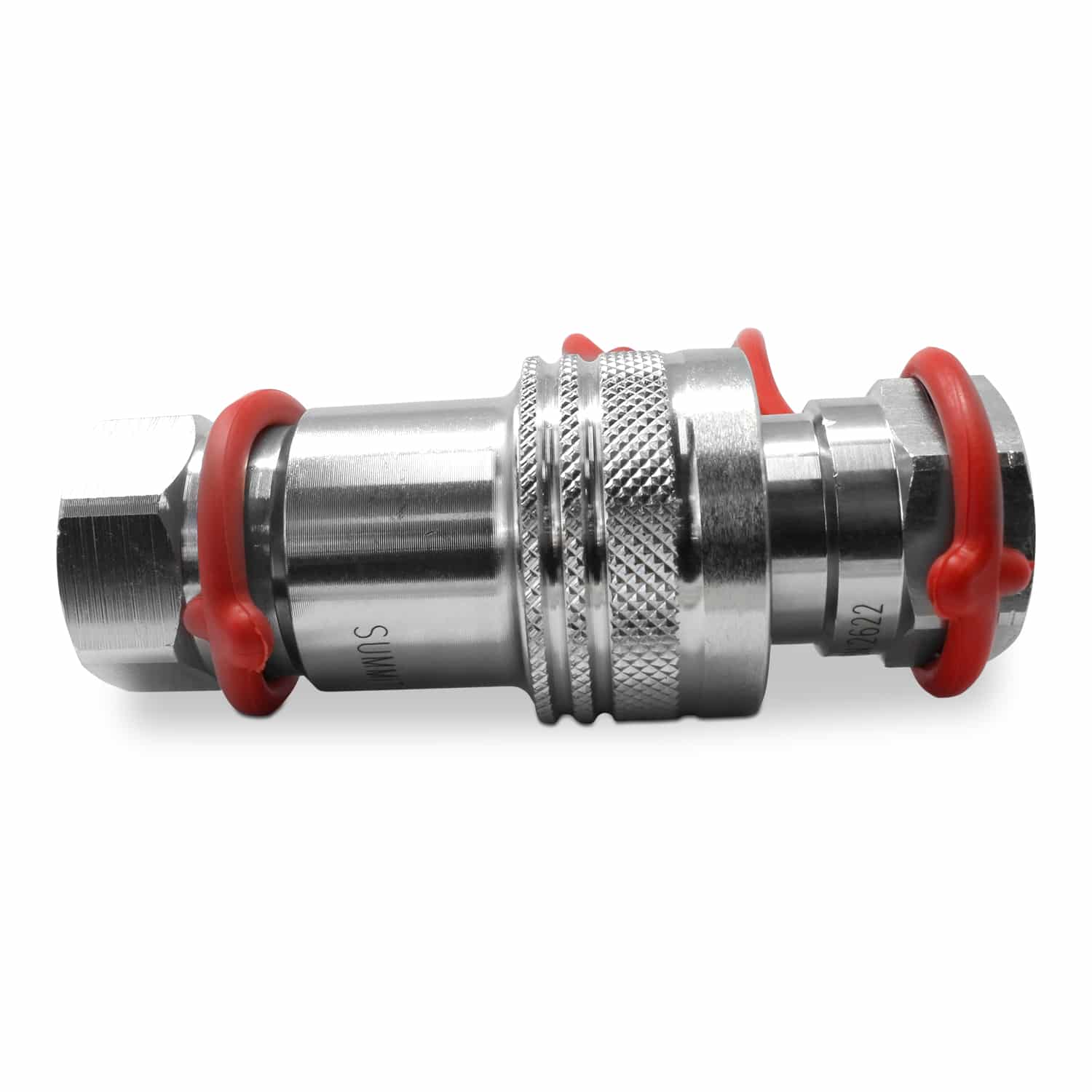

This 1/2″ coupler set consists of a male and female quick coupler.
Features:
- Nominal Flow Rate: 12 GPM
- Max Flow Rate: 24 GPM
- 3600 PSI Rating
- Hardened Steel Plugs
- 23,000 PSI Burst Rating (Coupled)
Interchangeable with:
| Manufacturer | Male | Female |
| SUMMIT | AG12M-08N | AG12F-08N |
| Parker 4000 Series | 8010-4P | 4050-4P |
| Safeway S20 Series | S71-4P | S25-4P |
| Faster NV/NS Series | NV 12 NPT M | NV 12 NPT F |
| Stucchi IRV Series | 800501005 M IR12V NPT |
800501004 F IR12V NPT |
| Dixon AG Series | AG4F4-PV | 4AGF4-PV |

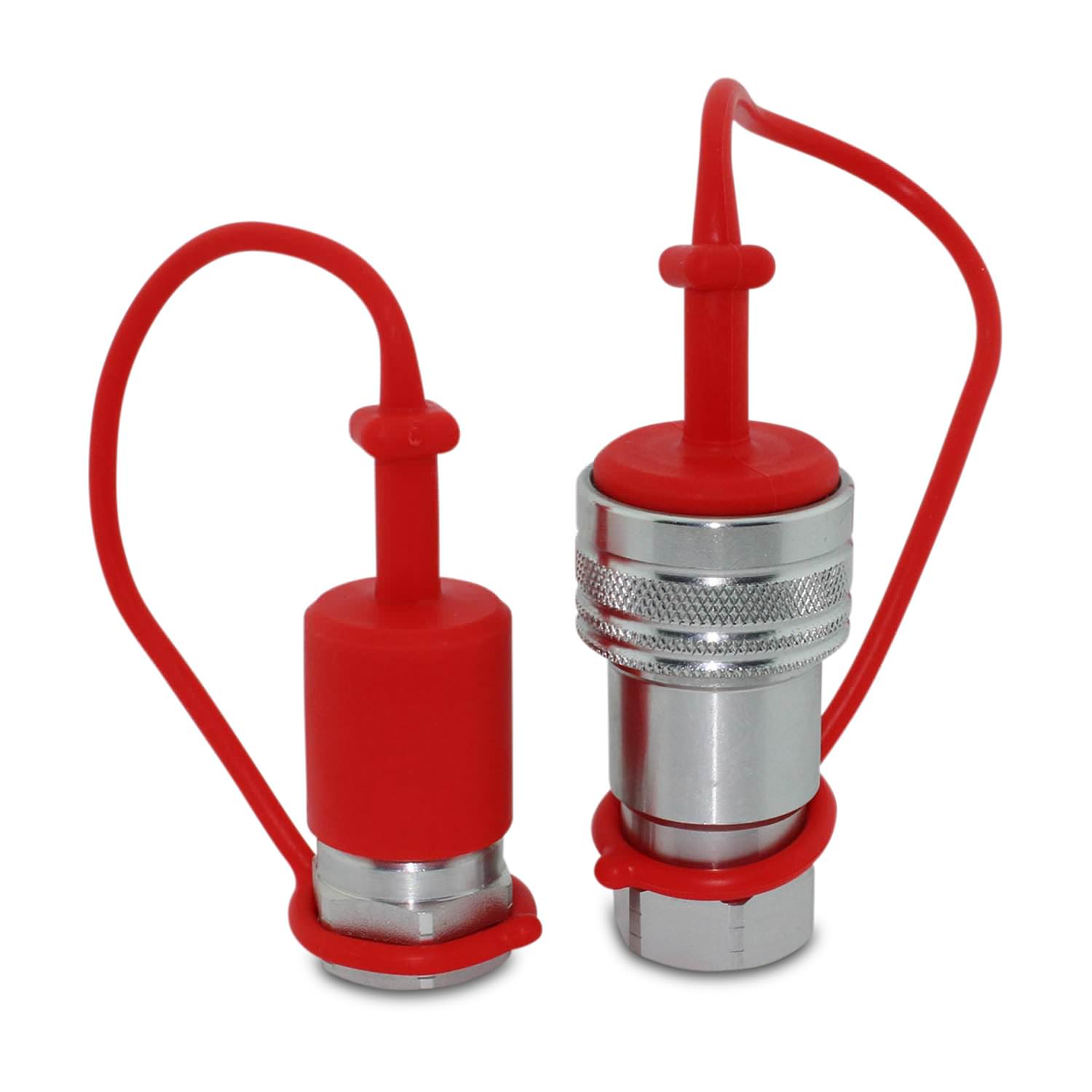

What’s Included:
- Female Coupler
- Male Coupler
- PVC Dust Plug
- PVC Dust Cap
https://staging.summit-hydraulics.com/product/dust-cap-and-plug-set-for-1-2%E2%80%B3-body-ag-couplers/
| Weight | 1 lbs |
|---|---|
| Dimensions | 5 × 4 × 3 in |
| ISO Standard | |
| Style | Agricultural |
| ISO Body Size | |
| Body Size | 1/2" |
| Thread Type | |
| Thread Size | 1/2" |
| Body Material | Hardened Steel |
| Locking Type | Sleeve |
| Coupling |
