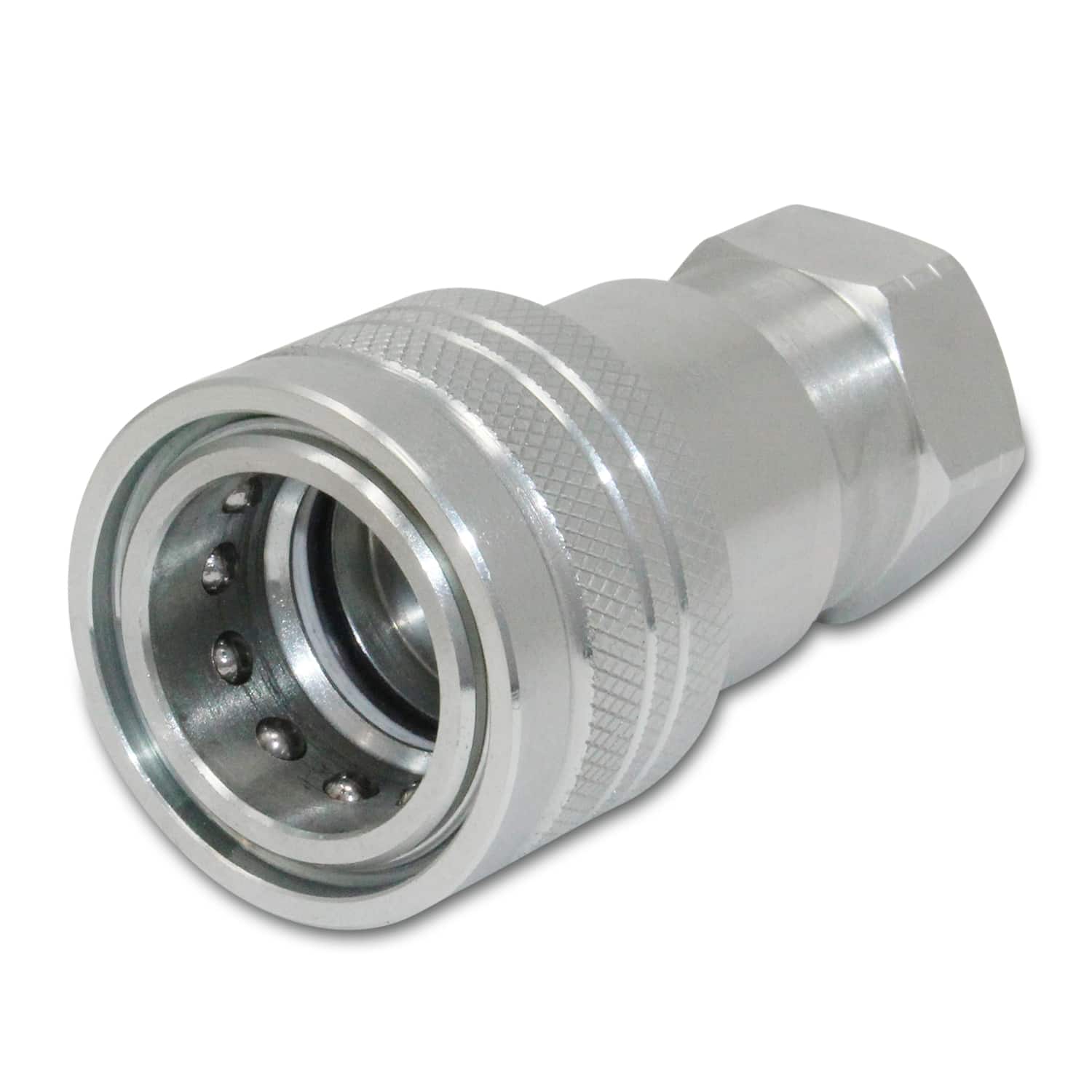

3/4″ Ag Hydraulic Quick Connect Female Coupler, 3/4″ NPT Thread

SKU: AG34F-12N

This series of couplers are the most common quick connect couplers used in the agriculture, construction and logging industries.  They are interchangeable with all ISO 5675 series including ball seat valve, poppet seal, push-pull couplings.

ISO Body Size: 3/4”

Port Thread: 3/4” NPT

This 3/4 female coupler connects to its male equivalent. We also carry a complete set, including a single male and single female coupler.

Benefits:

• General purpose
• Agriculture poppet type
• Radial locking balls
• Manual connect and disconnect
• Easy single-handed push-connect design
• Nipple seal resists blow-outs
• Interchangeable with other ISO 5675 standard couplings

Features:

• 5100 PSI Rating
• 50 GPM Max Flow
• 28 GPM Nominal Flow Rate

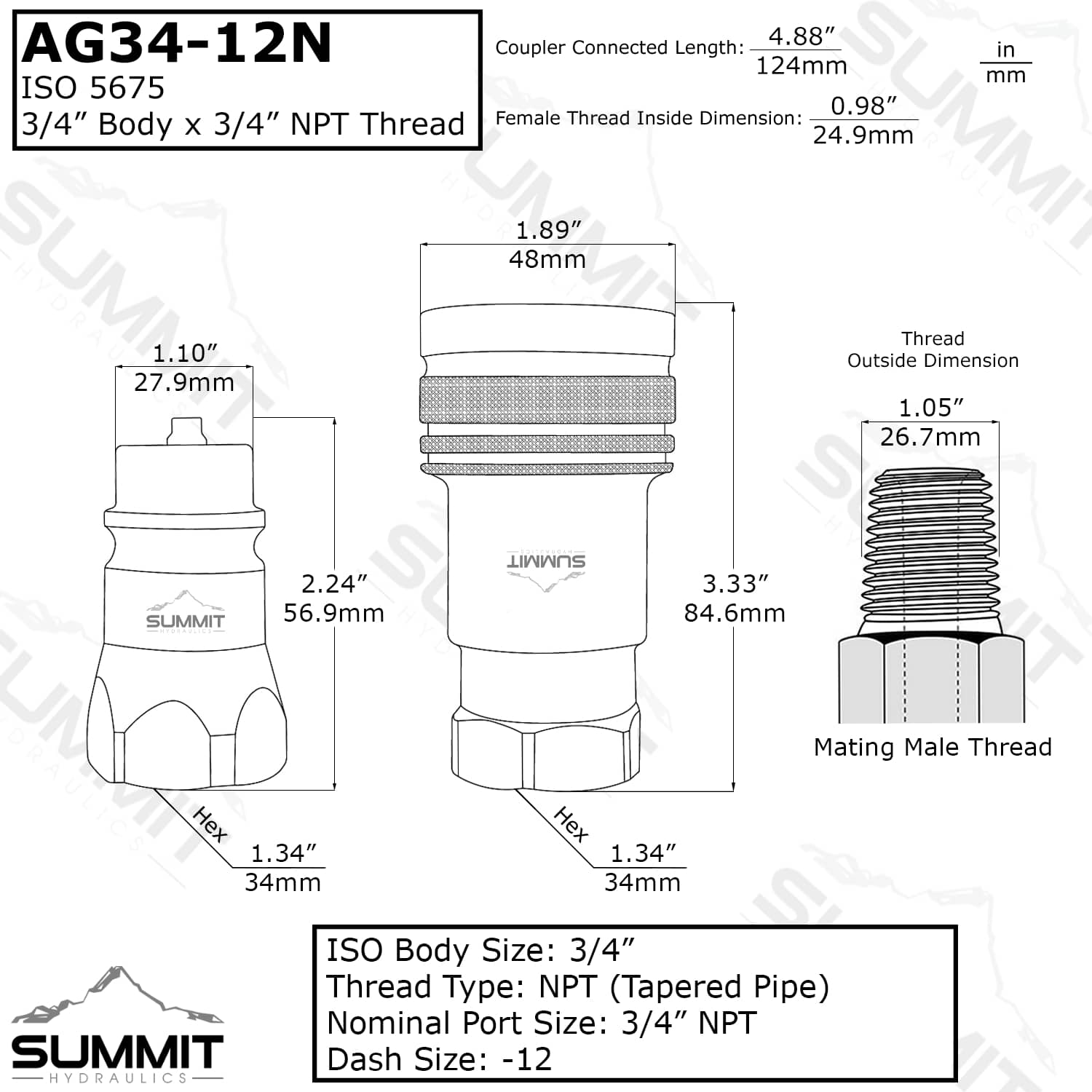

• Female Face Diameter: 1.77” (45mm)
• Female Length: 3.326” (57mm)
• Hex: 1.341” (34mm)

Interchangeable with:

Kit Includes:

• 1 Female Coupler
• 1 Female Dust Cap
